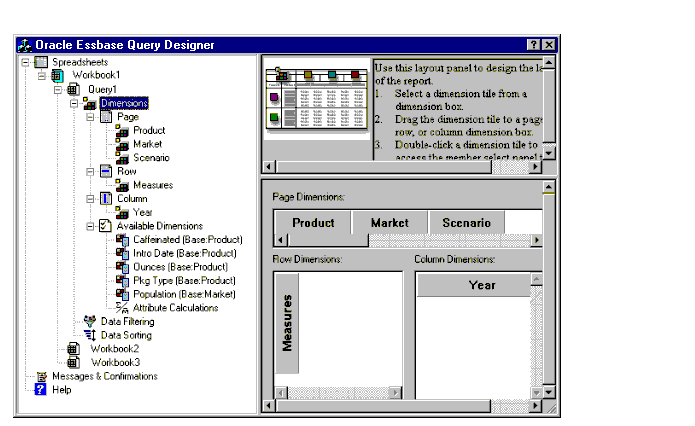

Query Designer contains three panels:
Navigation—Left panel. Provides access to the various features in Query Designer. Use the navigation panel to create and apply queries, to display all used and unused dimensions in the current query, and to access the properties panels.
Hint—Top right panel. Provides a short description of the function of the current display in the properties panel. The help text in the hint panel changes depending on the selection in the navigation panel.
Properties—Bottom right panel. Displays various panels, such as query information, layout, member select, member filter, data sort, data filter, data restriction, messages and confirmation, and help. By selecting the item in the navigation panel, you access different functions in the properties panel.
