Release 11.1.2.1
Table of Contents:
Loading and Extracting Cell Text Data
Entering Cell Text in Web Data Grids or Forms
Attaching Documents to Web Grids or Forms
Working with Performance Management Architect
In Oracle Hyperion Financial Management, Fusion Edition, you can add cell text for any valid cell in a data grid. At times, you may need multiple cell text entries to store different types of information for a Point of View intersection. The Enhanced Cell Text feature enables you to create multiple cell text entries and define cell text labels to easily identify types of information when you view cell text. You can use cell text labels in Financial Management Web data grids and data forms. Cell text labels are also supported in Oracle Hyperion EPM Architect, Fusion Edition, Oracle Hyperion Smart View for Office, Fusion Edition and Oracle Hyperion Financial Reporting, Fusion Edition.
Before users can enter multiple cell text entries, the administrator must define cell text labels. The labels are loaded into Financial Management as metadata. They apply to all account cells in the application, and are available for selection when users enter cell text information.
These are the guidelines for defining cell text labels:
The label name can be a maximum 80 characters. It must be unique within a data cell.
It can contain spaces but cannot start with a space. If you are using an Oracle database, labels cannot contain spaces.
The label name cannot contain these characters:
ampersand (&)
asterisk ( * )
at symbol ( @ )
comma ( , )
curly brackets ( { } )
double quotation mark ( " )
forward slash (/)
less than symbol (<)
minus sign (-)
number sign ( # )
period (.)
pipe character (|)
plus sign (+)
semicolon ( ; )
tilde character (~)
Example
For example, suppose an administrator has defined these cell text labels for an application. Users can select from the label list and enter the corresponding cell text data. When you view the cell text for a specific POV data cell, you would see this information:
Note: | In the current release, only cell text labels are displayed in the Financial Management user interface; descriptions are not displayed. |
You can load cell text labels as part of a metadata load in a Cell Text Labels section in the load file. The following example shows a sample load file section for cell text labels:
<MISC Name="CellTextLabel"> <MISCENTRY> <LABEL>MaturityDate</LABEL> </MISCENTRY> <MISCENTRY> <LABEL>CouponRate</LABEL> </MISCENTRY> <MISCENTRY> <LABEL>ExchangeRate</LABEL> </MISCENTRY> <MISCENTRY> <LABEL>Rating</LABEL> </MISCENTRY> <MISCENTRY> <LABEL>InterestRate</LABEL> </MISCENTRY> </MISC>
You load cell text labels as metadata. The Load dialog box now includes an option for cell text labels. When loading, you can use the Merge or Replace mode. If you use Replace mode, the system may delete cell text labels that are currently in use, resulting in orphaned cell text data in the application. You can also delete cell text labels at any time from the system even if they have cell text data assigned, resulting in orphaned cell text data. In these instances, you can use the “Clear Invalid Records” option in Database Management to clear invalid cell text data.
For details on loading metadata, see the Oracle Hyperion Financial Management Administrator’s Guide.
You can extract cell text labels as metadata. For details on extracting metadata, see the Oracle Hyperion Financial Management Administrator’s Guide.
You can load and extract cell text labels during the data load or extract process. To separate cell text content in the DAT file, you must use one of these delimiters: the pipe symbol (|) or the tilde (~).
Example:
!Descriptions Actual;2011;February;Periodic;California;USD;Sales;[ICP None];GolfBalls;Customer2;[None];Increases;"MaturityDate~02/28/11|CouponRate~8%|Rating~AAA"
For details on loading and extracting data, see the Oracle Hyperion Financial Management Administrator’s Guide.
You can delete cell text labels from the system, even if they have cell text data assigned, which may result in orphaned data. To clear invalid cell text data, in the Database Management module, use the Clear Invalid Records option.
You can enter cell text information in Web data grids or Web data forms.
The cell text field can store as many characters as defined for the application. Maximum length for a cell text value is defined by the “MaxCellTextSize” application attribute.
You can enter any characters for cell text values and you can use spaces. However, you cannot include the pipe (|) or tilde (~) character if you used it as a delimiter for the cell text value in the load format.
For every application, there is a system-generated member for Cell Text Label named [Default]. If you want to enter only one cell text entry for a data cell, you can select the [Default] member to enter the cell text information. A cell can have either just one entry using the [Default] cell text label, multiple cell text label entries, or a combination of cell text labels and [Default] entries.
To enter cell text:
From a data grid or data form, select the cell for which you want to add cell text.
Right-click and select Cell Text.

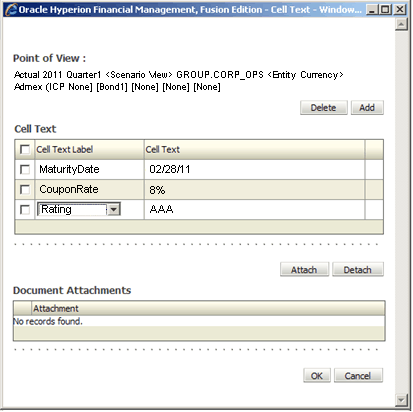

The Cell Text dialog box includes the POV information and a grid for cell text. If no text already exists for the cell, the system displays a blank grid.
The system adds a row with the [Default] system member as the cell text label.
Either accept the [Default] label or select one of the other previously loaded labels from the drop-down list.
On the row next to the [Default] system member label in the Cell Text column, enter the cell text.
The cell text labels in the drop-down list are displayed in alphabetical order. You cannot use the same label twice in the same grid.
Tip: | To quickly find a cell text label from a long list, enter one or more letters of the label. For example, if you enter R, the system quickly advances to the first cell text label starting with R (Rating in this example). You can then use the up and down arrows to find the correct label. |
Optional: To add cell text rows, click Add, select a Cell Text Label, and enter text.
Click Submit Data to save the data, or Reset Data to refresh the database
In addition to entering cell text in data grids or data forms, you can attach one or more documents to cells for additional detail. For example, you can attach a Microsoft Word document, Microsoft Excel spreadsheet, XSL, or RPT file. You can have a doc attachment for each cell text label per POV cell.
To attach documents to cells:
From a data grid or form, select the cell to which to attach a document.
To include one document attachment for the cell, click the cell with the [Default] cell text label.
To include multiple document attachments for the cell text label entry, click the icon to the right of each cell text row to open the Document Attachment dialog, then attach the document to that cell text row.
From your list of custom documents, select one or more documents to associate with the cell, and click Attach.
When you are creating Web data forms, you can allow users to define each column or row as cell text information instead of data.
If you enter a value of 0, 1, 2, or [Default] for cell text, the system returns the default cell text entry.
celltext:Label
Sample script:
C1=Y#CUR.P#CUR,CellText:MaturityDate
The Enhanced Cell Text feature includes three new rules for storing and retrieving multiple cell text entries and using cell text labels.
Gets the cell text from the Point of View for the specified cell text label. This function can be used in these types of rules:
Calculation
Translation
Consolidation
Allocation
Syntax
HS.GetCellTextWithLabel("POVExpression", "CellTextLabel")
where POVExpression is a combination of members. If you do not specify a dimension, these default values are used.
Account - [none]
ICP - [ICP None]
Custom1...4 - [None]
Scenario - Current Scenario member
Entity - Current Entity member
Value - Current Value member
Year and Period - Current member
And CellTextLabel is either the default cell text label (“[Default]”) or one of the valid loaded cell text labels.
Note: | The default dimension member values apply when you use this function in Calculation rules. When used in Allocation, Translation, or Consolidation rules, you must specify the Account, ICP, and Custom1…4 members. The Scenario, Year, Period, View, Entity, and Value default to the current members. |
Return Value
The cell text for the POV and cell text label specified.
Example
HS.GetCellTextWithLabel("A.Sales.I#[ICP None].C1#[None].C2#[None].C3#[None].C4#[None]","Rating")
Determines if the cell contains cell text for the specified label. This function can be used in these types of rules:
Calculation
Translation
Consolidation
Allocation
Syntax
HS.ContainsCellTextWithLabel("POVExpression", “CellTextLabel”)
where POVExpression is a combination of members. If you do not specify a dimension, these default values are used:
Account - [none
ICP - [ICP None]
Custom1...4 - [None]
Scenario - Current Scenario member
Entity - Current Entity member
Value - Current Value member
Year and Period - Current member
And CellTextLabel is either the default cell text label (“[Default]”) or one of the valid loaded cell text labels.
Note: | The default entries apply when you use this function in Calculation rules. When used in Allocation, Translation, or Consolidation rules, you must specify the full sub-cube account/ICP/Customs POV. The Scenario, Year, Period, View, Entity, and Value dimensions default to the current members. |
Return Value
A Boolean expression that is True if the specified data cell contains cell text for the cell text label specified; False otherwise.
Example
In this example, if the specified cell does not contain cell text for the cell text label specified, then statements between the If...Then and End If lines are executed.
If HS.ContainsCellTextWithLabel ("A#Sales.C1#Prod1.C2#Region1", “Rating”) = "False" then ... End If
Writes a text string to cell text for a specified POV and cell text label. This function can be used in these types of rules:
Calculation
Syntax
HS.SetCellTextWithLabel("POVExpression", "CellTextLabel", "CellTextString")
where POVExpression is a combination of members and CellTextLabel is either the default cell text label (“[Default]”) or one of the valid loaded cell text labels. CellTextString is the text string to be written. You must specify the Account, ICP, and Custom POV members. The Scenario, Year, Period, View, Entity, and Value default to the current members.
Return Value
None
Example
HS.SetCellTextWithLabel "A#Asset.I#[ICP None].C1#None.C2#None.C3#None.C4#None”, “Rating”, “AAA”
Cell text labels are now supported in Oracle Hyperion EPM Architect, Fusion Edition. See the Oracle Hyperion Enterprise Performance Management Readme 11.1.2.1.102 (11780153).
When you are working in Oracle Hyperion Financial Reporting, Fusion Edition, you can retrieve multiple cell text entries per Point of View. See the Oracle Hyperion Financial Reporting Readme 11.1.2.1.101 (11732644).
When you are working with Oracle Hyperion Financial Management, Fusion Edition data forms in Oracle Hyperion Smart View for Office, Fusion Edition, you can now retrieve multiple cell text entries per POV. See the Oracle Hyperion Smart View User’s Guide 11.1.2.1.101 (12398953).
