Understanding the Product Architecture

Accessed through EPM Workspace, Profitability and Cost Management is an analytical application that resides on top of Essbase. The application enables business users to model their business for profitability and cost management, and use that model information to create Essbase databases that can be fine-tuned for profitability and cost analysis without having to understand a scripting language.

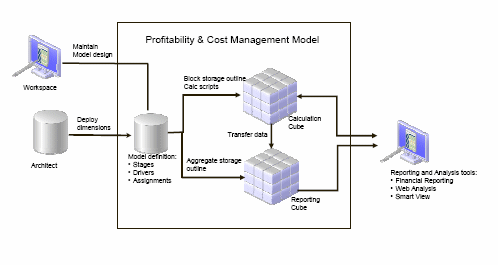

Figure 1. Profitability and Cost Management Product Architecture

The model metadata from Workspace and EPM Architect is used in the creation of the Profitability and Cost Management model, and the calculated results can be output in a variety of reporting and analysis tools.

Profitability and Cost Management leverages Performance Management Architect and Shared Services for the centralized management of application metadata and security.

Application administrators create the Profitability and Cost Management dimensions using Performance Management Architect. User access is managed centrally with Shared Services. When the dimension metadata is ready, it is deployed to a Profitability and Cost Management application, or model. The dimensions in Performance Management Architect can be shared by multiple models.

The model design contains the information needed to generate the Essbase outline and calculation script required by the Essbase component of the model. Each model requires access to the following databases:

Results from the Reporting database may be viewed in reporting and analysis tools, such as Financial Reporting, Web Analysis, and Oracle Hyperion Smart View for Office, Fusion Edition.
