Setting the Dimension Sort Order

The processing order for every dimension in the model must be set at the dimension-level using the Dimension Sort Order property. The Dimension Sort Order restrictions must be met; otherwise, validation of the model will fail. For a complete list of restrictions, see Dimension Sort Order Recommendations.

There are two ways to set the dimension sort order in Performance Management Architect:

  To set the Dimension Sort Order using the Dimension Performance Settings dialog box:

  1. From EPM Workspace, select Navigate, then Administer, and then Dimension Library to display the Shared Library.

  2. Right-click the name of the application, and select Dimension Performance Settings.

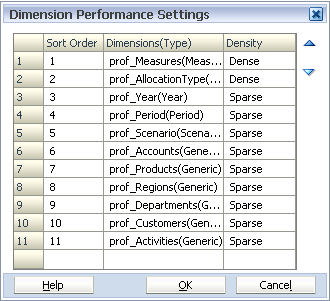

    Dimension Sort Order dialog box is used to set the dimension order for Measures, AllocationType, POV, business and attribute dimensions.
  3. Select a dimension, and use the Up Up Arrow and Down Down Arrow arrows to move each dimension into the correct sort order, as described in Dimension Sort Order Recommendations. The number of the original position for the dimension is displayed under Sort Order.

  4. Optional: Under Density for the selected dimension, double-click the cell to display the options, and then select the appropriate density for the dimension. See Optimizing Dimension Settings for Essbase.

  5. Click OK.

  To set Dimension Sort Order for individual dimensions:

  1. From EPM Workspace, select Navigate, then Administer, and then Dimension Library.

  2. In the Profitability and Cost Management application, select the dimension for which you want to set the Dimension Sort Order.

  3. In the Property Grid, select the Dimension Sort Order property, and under Value, enter the required number for the sort order. See Dimension Sort Order Recommendations.

  4. Click the Save icon Save Button.
