The Strategy Map Editor

The following figure depicts the Strategy Map Editor and describes how you will use it to find, filter, and add elements to the map.

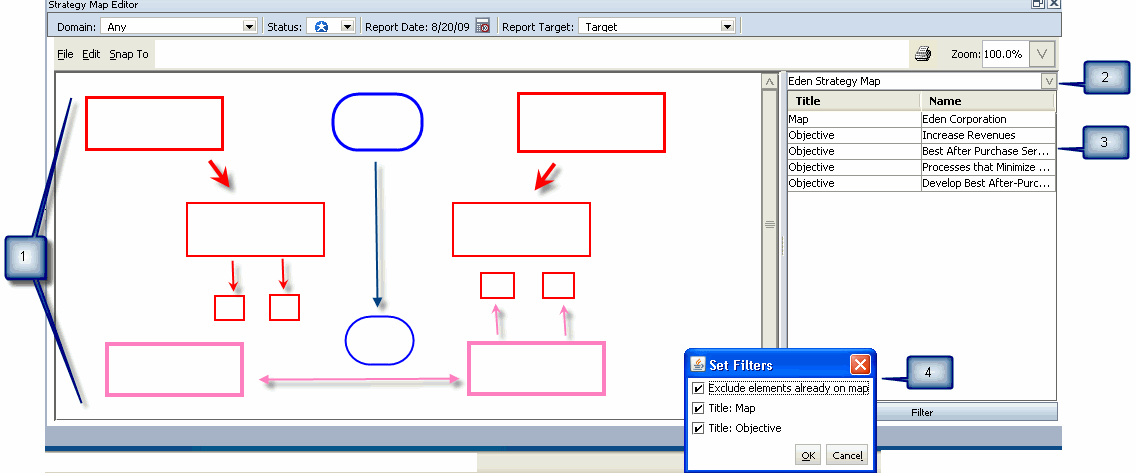

Figure 8. Strategy Map Editor

The file StrategyMapEditor.gif displays the editor tools that you will use to build strategy maps

The map editor has these components and tools:

  1. Placeholders in the image file that represents strategy elements.

  2. Item selector in the right-hand frame you use to select the Strategy Tree that contains the elements you want to use to build the map.

  3. Strategy element list in the right-hand frame from which you drag and drop element.

  4. Filter at the bottom right-that you can use to display or hide the title of the map or the title of elements that you add to the map.
