This chapter describes creating data sets in BI Publisher. Data sets can be created from a variety of sources including SQL queries, MDX queries, LDAP queries, Microsoft Excel worksheets, Web services, and XML files. This chapter also describes how to test your data models and save sample data.
This chapter includes the following sections:
Section 2.4, "Creating a Data Set Using a MDX Query Against an OLAP Data Source"
Section 2.7, "Creating a Data Set Using a Microsoft Excel File"
Section 2.8, "Creating a Data Set Using an Oracle BI Analysis"
Section 2.13, "Using Data Stored as a Character Large Object (CLOB) in a Data Model"
Section 2.15, "Creating a Data Set from an Oracle Endeca Query"
Section 2.16, "Testing Data Models and Generating Sample Data"
Section 2.17, "Including User Information Stored in System Variables in Your Report Data"
Oracle BI Publisher can retrieve data from multiple types of data sources.
On the component pane of the data model editor, click New Data Set as shown in Figure 2-1.
Select the data set type from the list to launch the appropriate dialog, as shown in Figure 2-2.
Complete the required fields to create the data set. See the corresponding section in this chapter for information on creating each data set type.
Section 2.4, "Creating a Data Set Using a MDX Query Against an OLAP Data Source"
Section 2.7, "Creating a Data Set Using a Microsoft Excel File"
Section 2.8, "Creating a Data Set Using an Oracle BI Analysis"
Section 2.13, "Using Data Stored as a Character Large Object (CLOB) in a Data Model"
Section 2.15, "Creating a Data Set from an Oracle Endeca Query"
On the component pane of the data model editor click Data Sets. All data sets for this data model display in the working pane.
Click the data set that you want to edit.

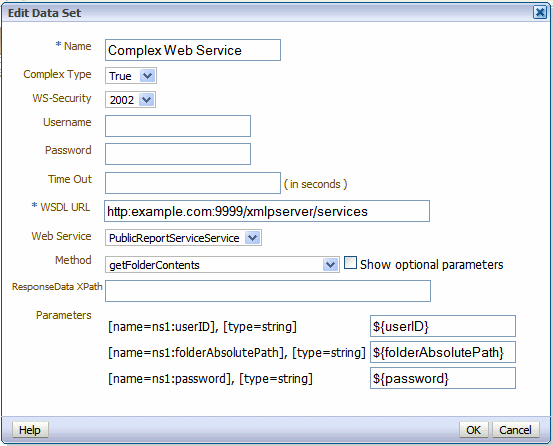

Click Edit Selected Data Set. The dialog for the data set opens. For information about each type of data set, see the corresponding section in this chapter.
Make changes to the data set and click OK.
Save the data model.
Test your edited data model and add new sample data. See Section 2.16, "Testing Data Models and Generating Sample Data" for more information about testing and generating sample data.
This section includes the following topics:
To enter a SQL query:
Click New Data Set and then click SQL Query. The Create Data Set - SQL dialog opens, as shown in Figure 2-3.
Enter a name for the data set.
The data source defaults to the default data source that you selected on the Properties page. If you are not using the default data source for this data set, select the Data Source from the list.
You can also use your private data source connections as data sources for SQL query data sets. See Section 1.7.3, "Managing Private Data Sources" for information about private data source connections.
Enter the SQL query or click Query Builder to launch the Query Builder page. See Section 2.3.2, "Using the SQL Query Builder" for more information about the Query Builder utility.
If you are using Flexfields, bind variables, or other special processing in your query, edit the SQL returned by the Query Builder to include the required statements.
Note:
If you include lexical references for text that you embed in a SELECT statement, then you must substitute values to get a valid SQL statement.
After entering the query, click OK to save. The data model editor validates the query.
If your query includes a bind variable, you are prompted to create the bind parameter. Click OK to have the data model editor create the bind parameter.
See Chapter 4, "Adding Parameters and Lists of Values" for more information on editing parameters.
Use the Query Builder to build SQL queries without coding. The Query Builder enables you to search and filter database objects, select objects and columns, create relationships between objects, and view formatted query results with minimal SQL knowledge.
This section describes how to use the Query Builder and includes the following topics:
The Query Builder page is divided into two sections:
Object Selection pane contains a list of objects from which you can build queries. Only objects in the current schema display.
Design and output pane consists of four tabs:
Model — Displays selected objects from the Object Selection pane.
Conditions — Enables you to apply conditions to your selected columns.
SQL — Displays the query.
Results — Displays the results of the query.
To build a query, perform the following steps:
Select objects from the Object Selection pane.
Add objects to the Design pane and select columns.
(Optional) Establish relationships between objects.
Add a unique alias name for any duplicate column.
(Optional) Create query conditions.
Execute the query and view results.
In the Object Selection pane you can select a schema and search and filter objects.
To hide the Object Selection pane, select the control bar located between it and the Design pane. Select it again to unhide it.
The Schema list contains all the available schemas in the data source. Note that you may not have access to all that are listed.
Use the Search field to enter a search string. Note that if more than 100 tables are present in the data source, you must use the Search feature to locate and select the desired objects.
The Object Selection pane lists the tables, views, and materialized views from the selected schema (for Oracle databases, synonyms are also listed). Select the object from the list and it displays on the Design pane. Use the Design pane to identify how the selected objects are used in the query.
Columns of all types display as objects in the Design pane. Note the following column restrictions:
You can select no more than 60 columns for each query.
Only the following column types are selectable:
VARCHAR2, CHAR
NUMBER
DATE, TIMESTAMP
Note:
The data type TIMESTAMP WITH LOCAL TIMEZONE is not supported.
Binary Large Object (BLOB)
Note:
The BLOB must be an image. When you execute the query in the Query Builder, the BLOB does not display in the Results pane; however, the query is constructed correctly when saved to the data model editor.
Character Large Object (CLOB)
See Section 2.13, "Using Data Stored as a Character Large Object (CLOB) in a Data Model" for more information about working with CLOB data in the data model.
To add objects to the design pane:
Select an object.
The selected object displays in the Design pane. An icon representing the data type displays next to each column name.
Select the check box for each column to include in your query.
When you select a column, it appears on the Conditions tab. Note that the Show check box on the Conditions tab controls whether a column is included in query results. Be default, this check box is selected.
To select the first twenty columns, click the small icon in the upper left corner of the object and then select Check All.
To execute the query and view results, select Results.
Tip:
You can also execute a query using the key strokes CTRL + ENTER.
As you select objects, you can resize the Design and Results panes by selecting and dragging the gray horizontal rule dividing the page.
To remove an object:
Click Remove in the upper right corner of the object.
To temporarily hide the columns within an object:
Click Show/Hide Columns.
Conditions enable you to filter and identify the data you want to work with. As you select columns within an object, you can specify conditions on the Conditions tab. You can use these attributes to modify the column alias, apply column conditions, sort columns, or apply functions. Figure 2-5 shows the Conditions tab.
Table 2-1 describes the attributes available on the Conditions tab.
Table 2-1 Attributes Available on the Conditions Tab
| Condition Attribute | Description |
|---|---|
|
Up and Down Arrows |
Controls the display order of the columns in the resulting query. |
|
Column |
Displays the column name. |
|
Alias |
Specify an optional column alias. An alias is an alternative column name. Aliases are used to make a column name more descriptive, to shorten the column name, or prevent possible ambiguous references. Note that multibyte characters are not supported in the alias name. |
|
Object |
Displays the object name. |
|
Condition |
The condition modifies the query's WHERE clause. When specifying a column condition, you must include the appropriate operator and operand. All standard SQL conditions are supported. For example: >=10 ='VA' IN (SELECT dept_no FROM dept) BETWEEN SYSDATE AND SYSDATE + 15 |
|
Sort Type |
Select ASC (Ascending) or DESC (Descending). |
|
Sort Order |
Enter a number (1, 2, 3, and so on) to specify the order in which selected columns should display. |
|
Show |
Select this check box to include the column in your query results. You do not need to select Show to add a column to the query for filtering only. For example, to create following query: SELECT ename FROM emp WHERE deptno = 10 To create this query in Query Builder:
|
|
Function |
Available argument functions include:
|
|
Group By |
Specify columns to be used for grouping when an aggregate function is used. Only applicable for columns included in output. |
|
Delete |
Deselect the column, excluding it from the query. |
As you select columns and define conditions, Query Builder writes the SQL for you.
To view the underlying SQL:
Select the SQL tab.
You can create relationships between objects by creating a join. A join identifies a relationship between two or more tables, views, or materialized views.
When you write a join query, you specify a condition that conveys a relationship between two objects. This condition is called a join condition. A join condition determines how the rows from one object combine with the rows from another object.
Query Builder supports inner, outer, left, and right joins. An inner join (also called a simple join) returns the rows that satisfy the join condition. An outer join extends the result of a simple join. An outer join returns all rows that satisfy the join condition and returns some or all of those rows from one table for which no rows from the other satisfy the join condition.
Create a join manually by selecting the Join column in the Design pane.
To join objects manually:
From the Object Selection pane, select the objects you want to join.
Identify the columns you want to join.
You create a join by selecting the Join column adjacent to the column name. The Join column displays to the right of the data type. When your cursor is in the appropriate position, the following help tip displays:
Click here to select column for join
Select the appropriate Join column for the first object.
When selected, the Join column is darkened. To deselect a Join column, simply select it again or press ESC.
Select the appropriate Join column for the second object.
When joined, line connects the two columns. An example is shown in Figure 2-6.
Select the columns to be included in your query. You can view the SQL statement resulting from the join by positioning the cursor over the join line.
Click Results to execute the query.
Once you have built the query, click Save to return to the data model editor. The query appears in the SQL Query box. Click OK to save the data set.
When you have saved the query from the Query Builder to the data model editor, you can also use the Query Builder to edit the query.
To use the Query Builder to edit the query:
Select the SQL data set.
On the toolbar, click Edit Selected Data Set to launch the Edit Data Set dialog.
Click Query Builder to load the query to the Query Builder.
Note:
If you have made modifications to the query, or did not use the Query Builder to construct it, you may receive an error when launching the Query Builder to edit it. If the Query Builder cannot parse the query, you can edit the statements directly in the text box.
Edit the query and click Save.
Now you have a basic query, but in the report you want users to be able to pass a parameter to the query to limit the results. For example, in the employee listing, you want users to be able to choose a specific department.
You can add the variable using either of the following methods:
Add the bind variable using the Query Builder Conditions tab
To add the bind variable in the Query Builder Conditions tab:
Add the following Condition for the column:
in (:P_DEPTNAME)
where P_DEPTNAME is the name you choose for the parameter. This is shown in Figure 2-8.
Update the SQL query directly in the text box.
Important:
After manually editing the query, the Query Builder can no longer parse it. Any further edits must also be made manually.
To update the SQL query directly in the text box:
Add the following after the where clause in your query:
and "COLUMN_NAME" in (:PARAMETER_NAME)
for example:
and "DEPARTMENT_NAME" in (:P_DEPTNAME)
where P_DEPTNAME is the name you choose for the parameter. This is shown in Figure 2-9.
When you click Save, the data model editor prompts you to create the parameter that you entered with the bind variable syntax, as shown in Figure 2-10.
Select the parameter, and click OK to have the data model editor create the parameter entry for you. See Chapter 4, "Adding Parameters and Lists of Values" for more information on defining parameter properties.
You can use lexical references to replace the clauses appearing after SELECT, FROM, WHERE, GROUP BY, ORDER BY, or HAVING. Use a lexical reference when you want the parameter to replace multiple values at runtime. Lexical references are supported in queries against Oracle applications only.
Create a lexical reference in the SQL query using the following syntax:
¶metername
Note:
You also use lexical references to include flexfields in your query. For more information about using flexfields, see Chapter 6, "Adding Flexfields."
To define a lexical parameter:
Before creating your query, define a parameter in the PL/SQL default package for each lexical reference in the query. The data engine uses these values to replace the lexical parameters.
In the data model editor, on the Properties page, specify the Oracle DB Default Package.
In the data model editor, create a Before Data event trigger to call the PL/SQL package. See Section 5.2, "Adding Before Data and After Data Triggers" for more information about procedures.
Create your SQL query containing lexical references.
When you click OK to close your SQL query, you are prompted to enter the parameter.
For example, create a package called employee. In the employee package, define a parameter called where_clause:
Package employee AS where_clause varchar2(1000); ..... Package body employee AS ..... where_clause := 'where DEPARTMENT_ID=10'; .....
Reference the lexical parameter in the SQL query where you want the parameter to be replaced by the code defined in the package. For example:
select "EMPLOYEES"."EMPLOYEE_ID" as "EMPLOYEE_ID",
"EMPLOYEES"."FIRST_NAME" as "FIRST_NAME",
"EMPLOYEES"."LAST_NAME" as "LAST_NAME",
"EMPLOYEES"."SALARY" as "SALARY",
from "OE"."EMPLOYEES" "EMPLOYEES"
&where_clause
When you click OK on the Create SQL Data Set dialog box, the lexical reference dialog box prompts you to enter a value for lexical references you entered in the SQL query, as shown in Figure 2-11. Enter the value of the lexical reference as it is defined in the PL/SQL package.
At runtime, the data engine replaces &where_clause with the contents of where_clause defined in the package.
When you launch the Query Builder against the Oracle BI server, the Query Builder displays the subject areas from the catalog. You can drag the subject areas to the Query Builder workspace to display the columns. Select the columns to include in your data model.
Keep the following points in mind when creating a data set against the Oracle BI server:
When you create a SQL query against the Oracle BI server using the SQL Data Editor or the Query Builder, logical SQL is generated, not physical SQL like other database sources.
Hierarchical columns are not supported. The highest level is always returned.
Within a subject area, the join conditions between tables are already created; it is therefore not necessary to create joins in the Query Builder. The Query Builder does not expose the primary key.
It is possible to link data sets using the data model editor's Create Link function. See Section 3.5, "Creating Element-Level Links." For data sets created from the BI Server, there is a limit of two element-level links for a single data model.
In the Query Builder, the functions Sort Order and Group By shown on the Conditions tab are not supported for queries against the Oracle BI server. If you enter a Sort Order or select the Group By check box, the Query Builder will construct the SQL, and write it to the BI Publisher SQL Query text box, but when you attempt to close the Data Set dialog, the query will fail validation.
To apply grouping to the data retrieved by the SQL query, you can use the data model editor's Group by function instead. See Section 3.7, "Creating Subgroups."
If you pass parameters to the Oracle BI server and you choose Null Value Passed for Can Select All, you must ensure that you handle the null value in your query.
To create a SQL query against the Oracle BI server:
In the data model editor, click New Data Set and then click SQL Query.
Enter a name for the data set.
From the Data Source drop-down list, select the Oracle BI server connection (usually shown as Oracle BI EE).
Click Query Builder to launch the Query Builder page. See Section 2.3.2, "Using the SQL Query Builder" for more information about the Query Builder utility.
You can also enter the SQL syntax manually in the SQL Query text box, however you must use the logical SQL syntax used by the Oracle BI server.
From the Catalog drop-down list, select a subject area as shown in Figure 2-12. The list displays the subject areas defined in the Oracle BI server.
Select tables and columns for the query.
Click Save.
Click OK to return to the data model editor. The SQL that is generated is logical SQL that follows a star schema. It is not physical SQL.
Save your changes to the data model.
BI Publisher supports Multidimensional Expressions (MDX) queries against OLAP data sources. MDX lets you query multidimensional objects, such as Essbase cubes, and return multidimensional cell sets that contain the cube's data. You create MDX queries by manually entering the MDX query or by using MDX Query Builder to build the query.
To create a data set using a MDX query:
On the toolbar, click New Data Set and then select MDX Query. The New Data Set - MDX Query dialog launches as shown in Figure 2-13.
Enter a name for the data set.
Select the data source for the data set. Only the data sources defined as OLAP connections are displayed in the list.
Any private OLAP data source connections that you created will also be available in the Data Source drop-down list. For more information on creating private data source connections, see Section 1.7.3, "Managing Private Data Sources".
Enter the MDX query or click Query Builder. For more information on using MDX Query Builder, see Section 2.5, "Using MDX Query Builder".
Click OK to save. The data model editor validates the query.
Note:
Ensure that in your OLAP data source that you do not use Unicode characters from the range U+F900 to U+FFFE to define any metadata attributes such as column names or table names. This Unicode range includes half-width Japanese Katakana and full-width ASCII variants. Using these characters results in errors when generating the XML data for a BI Publisher report.
For more information on writing MDX queries, see "Writing MDX Queries" in Oracle Essbase Database Administrators Guide.
Use MDX Query Builder to build MDX basic queries without having to code them. MDX Query Builder enables you to add dimensions to columns, rows, pages, and point of view axes and preview the query results.
Note:
MDX Query Builder only enables you to build data sets against Essbase data sources. For all other OLAP data sources, you must manually create the query.
To use MDX Query Builder to build a MDX query:
On the toolbar, click New Data Set and then select MDX Query to launch the New Data Set - MDX Query dialog.
Enter a name for the data set.
Select a data source.
Launch MDX Query Builder.
Select an Essbase cube for the query.
Select dimensions and measures by dragging and dropping them to the Columns, Rows, Slicer/POV, and the Pages axes.
(Optional) Use actions to modify the query.
(Optional) Apply filters.
Set the query options and save the query.
In the Select Cube dialog, you select the Essbase cube that you want to use to build the MDX query.
The MDX data source connection that you selected previously drives which Essbase cubes are available for selection.
You build MDX queries by selecting dimensions for the Columns, Rows, Slicer/POV, and Pages axes.
Account dimension members are listed individually by member name. All other dimension members are represented by generation name as shown in Figure 2-14.
You can drag dimension generations and individual measures from the Account dimension to the Columns, Rows, Slicer/POV, and Pages axes.
Build the query by dragging dimension members or measures from the Dimensions panel to one of the following axes areas:
Columns — Axis (0) of the query
Rows — Axis (1) of the query
Slicer/POV— The slicer axis enables you to limit a query to only a specific slice of the Essbase cube. This represents the optional WHERE clause of a query.
Pages — Axis (2) of the query
You can nest dimension members in the Columns and Rows axes, but you can only add a single dimension to the Slider/POV axis.
When you add a dimension to the Slicer/POV axis, the Member Selection dialog launches. You can only select one dimension member for this axis. Simply select the dimension in the Member Selection dialog, and click OK.
The Member Selection dialog does not display if you add a measure to the Slicer/POV axis.
The MDX Query Builder toolbar contains the following buttons for modifying the MDX query:
Click Swap Rows and Columns to flip dimensions between columns and rows.
Click Actions to display the following menu items for selection:
Select Cube — Selects a different Essbase cube for the query.
Set Alias Table — Selects the alias table used for dimension display names. Alias names are used for display only and are not used in the query.
Auto Refresh — Displays the results as dimension members are placed in the Columns, Rows, Slicer/POV, and Pages axes and automatically refreshes the MDX query syntax.
Clear Results — Clears the results and removes member selections from all of the axes and any filters added to the query.
Show Empty Columns — Displays columns that do not contain data.
Show Empty Rows — Displays rows that do not contain data.
Show Query — Displays the MDX query syntax resulting from how the dimensions are placed in the Columns, Rows, Slicer/POV, and Pages axes.
You can create filters for dimensions on the Columns, Rows, and Pages axes in MDX Query Builder to further streamline your MDX query.
To create a filter, click the down-arrow button to the right of a dimension in the Columns, Rows, or Pages axes to display it in the Filters area. You create the filter by selecting the desired dimension member as shown in Figure 2-15.
You can create multiple filters for a query, but you can only create one filter for each Columns, Rows, or Pages axis.
Once you have built the query, click Save to display the Options dialog as shown in Figure 2-16.
Use the Options dialog to select the dimension properties to include in the query for each of the dimensions in the Columns, Rows, and Pages axes. By default, none of the properties are selected.
The dimension properties are as follows:
Member Alias — Dimension member alias names as listed in the Essbase outline.
Ancestor Names — Ancestor dimension names as listed in the Essbase outline.
Level Number — Dimension level numbers as listed in the Essbase outline.
Gen Number — Generation number of the dimensions as listed in the Essbase outline.
For example, if you select the Member Alias and Level Number properties for Columns, the MDX query results are as follows:
SELECT
NON EMPTY Hierarchize([Market].Generations(2).Members)
PROPERTIES MEMBER_ALIAS,LEVEL_NUMBER ON Axis(0),
NON EMPTY CROSSJOIN(Hierarchize([Product].Generations(3).Members),
{[Accounts].[Margin],[Accounts].[Sales],[Accounts].[Total_Expenses]})ON Axis(1),
NON EMPTY [Year].Generations(3).Members ON Axis(2) FROM Demo.Basic
For more information on Essbase dimension properties, see "Querying for Properties" in Oracle Essbase Database Administrator's Guide.
After you select options for the MDX query, click OK to return to the New Data Set - MDX Query dialog and review the MDX query output as shown in Figure 2-17.
Click OK to return to the data model editor, and save your changes.
Important:
If you modify a MDX query after you save it in BI Publisher, Oracle recommends that you manually change the syntax and not use MDX Query Builder to do so.
BI Publisher supports queries against Lightweight Directory Access protocol (LDAP) data sources. You can query user information stored in LDAP directories and then use the data model editor to link the user information with data retrieved from other data sources.
For example, to generate a report that lists employee salary information that is stored in the database application and include on the report employee e-mail addresses that are stored in the LDAP directory. You can create a query against each and then link the two in the data model editor to display the information in a single report. Figure 2-18 shows a sample LDAP query.
To create a data set using an LDAP query:
Click the New Data Set toolbar button and select LDAP Query. The New Data Set - LDAP Query dialog launches.
Enter a name for this data set.
Select the Data Source for this data set. Only data sources defined as LDAP connections display in the list.
In the Attributes entry box, enter the attributes whose values you want to fetch from the LDAP data source.
For example:
mail,cn,givenName
To filter the query, enter the appropriate syntax in the Filter entry box. The syntax is as follows:
(Operator (Filter)through(Filter))
For example:
(objectclass=person)
LDAP search filters are defined in the Internet Engineering Task Force (IETF) Request for Comments document 2254, "The String Representation of LDAP Search Filters," (RFC 2254). This document is available from the IETF Web site at http://www.ietf.org/rfc/rfc2254.txt
Link the data from this query to the data from other queries or modify the output structure. For instructions on completing this step, see Chapter 3, "Structuring Data."
To use a Microsoft Excel file as a data source, you have the following options for providing the file to BI Publisher:
Place the file in a directory that your administrator has set up as a data source. See the section "Setting Up a Connection to a File Data Source" in Oracle Fusion Middleware Administrator's Guide for Oracle Business Intelligence Publisher (Oracle Fusion Applications Edition)).
Upload the file to the data model from a local directory.
Following are guidelines for the support of Microsoft Excel files as a data set type in BI Publisher:
The Microsoft Excel files must be saved in the Excel 97-2003 Workbook (*.xls) format by Microsoft Excel. Files created by a third party application or library are not supported.
The source Excel file might contain a single sheet or multiple sheets.
Each worksheet may contain one or multiple tables. A table is a block of data that is located in the continuous rows and columns of a sheet.
In each table, BI Publisher always considers the first row to be a heading row for the table.
The data type of the data in the table may be number, text, or date/time.
If multiple tables exist in a single worksheet, the tables must be identified with a name for BI Publisher to recognize each one. See Section 2.7.2, "Guidelines for Accessing Multiple Tables per Sheet."
If all tables in the Excel file are not named, only the data in the first table (the table located in the upper most left corner) is recognized and fetched.
When the data set is created, BI Publisher truncates all trailing zeros after the decimal point for numbers in all cases. To preserve the trailing zeros in your final report, you must apply a format mask in your template to display the zeroes. For more information about format masks, see the section "Number, Date, and Currency Formatting" in Oracle Fusion Middleware Report Designer's Guide for Oracle Business Intelligence Publisher.
Single value parameters are supported, but multiple value parameters are not supported.
If the Excel worksheet contains multiple tables that you want to include as data sources, then you must define a name for each table in Excel.
Important:
The name that you define must begin with the prefix: "BIP_", for example, "BIP_SALARIES".
To define a name for the table in Excel:
Insert the table in Excel.
Define a name for the table as follows:
Using Excel 2003: Select the table. On the Insert menu, click Name and then Define. Enter a name that is prefixed with "BIP_".
Using Excel 2007: Select the table. On the Formulas tab, in the Defined Names group, click Define Name, then enter the name in the Name field. The name you enter appears on the Formula bar.
Tip:
You can learn more about defined names and their usage in the Microsoft Excel 2007 document "Define and use names in formulas." at the following URL:
Figure 2-19 shows how to use the Define Name command in Microsoft Excel 2007 to name a table "BIP_Salaries".
Note that to include parameters for your data set, you must define the parameters first, so that they are available for selection when defining the data set. See Chapter 4, "Adding Parameters and Lists of Values."
Important:
The Excel data set type supports one value per parameter. It does not support multiple selection for parameters.
To create a data set using a Microsoft Excel file from a file directory data source:
Click the New Data Set toolbar button and select Microsoft Excel File. The New Data Set - Microsoft Excel File dialog launches.
Enter a name for this data set.
Click Shared to enable the Data Source list.
Select the data source where the Microsoft Excel File resides.
To the right of the File Name field, click the browse icon to browse for the Microsoft Excel file in the data source directories. Select the file.
If the Excel file contains multiple sheets or tables, select the appropriate Sheet Name and Table Name for this data set, as shown in Figure 2-20.
If you added parameters for this data set, click Add Parameter. Enter the Name and select the Value. The Value list is populated by the parameter Name defined in the Parameters section. Only single value parameters are supported. See Chapter 4, "Adding Parameters and Lists of Values."
Click OK.
Link the data from this query to the data from other queries or modify the output structure. For more information on linking queries, see Chapter 3, "Structuring Data."
Note that to include parameters for the data set, you must define the parameters first, so that they are available for selection when defining the data set. See Chapter 4, "Adding Parameters and Lists of Values."
Important:
The Excel data set type supports one value per parameter. It does not support multiple selection for parameters.
To create a data set using a Microsoft Excel file stored locally:
Click the New Data Set toolbar button and select Microsoft Excel File. The Create Data Set - Excel dialog launches.
Enter a name for this data set.
Select Local to enable the upload button.
Click the Upload icon to browse for and upload the Microsoft Excel file from a local directory. If the file has been uploaded to the data model, then it is available for selection in the File Name list.
If the Excel file contains multiple sheets or tables, select the appropriate Sheet Name and Table Name for this data set, as shown in Figure 2-21.
If you added parameters for this data set, click Add Parameter. Enter the Name and select the Value. The Value list is populated by the parameter Name defined in the Parameters section. Only single value parameters are supported. See Chapter 4, "Adding Parameters and Lists of Values."
Click OK.
Link the data from this query to the data from other queries or modify the output structure. For more information on linking queries, see Chapter 3, "Structuring Data."
After uploading the file, it displays on the Properties pane of the data model under the Attachments region, as shown in Figure 2-22.
See Section 1.7, "Setting Data Model Properties" for information about the Properties pane.
To refresh the local file in the data model:
Click Data Model in the component pane to view the Properties page.
In the Attachment region of the page, locate the file in the Data Files list.
Click Refresh.
In the Upload dialog, browse for and upload the latest version of the file. The file must have the same name or it will not replace the older version.
Save the data model.
To delete the local file:
Click Data Model in the component pane to view the Properties page.
In the Attachment region of the page, locate the file in the Data Files list.
Click Delete.
Click OK to confirm.
Save the data model.
If you have enabled integration with Oracle Business Intelligence, then you can access the Oracle Business Intelligence Presentation catalog to select an Oracle BI analysis as a data source. An analysis is a query against an organization's data that provides answers to business questions. A query contains the underlying SQL statements that are issued to the Oracle BI Server.
For more information about creating analyses, see Oracle Fusion Middleware User's Guide for Oracle Business Intelligence Publisher.
Important:
Hierarchical columns are not supported in BI Publisher data models.
To create a data set using an Oracle BI analysis:
Click the New Data Set toolbar button and select Oracle BI Analysis. The New Data Set - Oracle BI Analysis dialog launches.
Enter a name for this data set.
Click the browse icon to connect to the Oracle BI Presentation catalog, as shown in Figure 2-23.
When the catalog connection dialog launches, navigate through the folders to select the Oracle BI analysis to use as the data set for the report.
Enter a Time Out value in seconds, as shown in Figure 2-24. If BI Publisher has not received the analysis data after the time specified in the time out value has elapsed, then BI Publisher stops attempting to retrieve the analysis data.
Click OK.
Parameters and list of values are inherited from the BI analysis and they display at run time.
The BI Analysis must have default values defined for filter variables. If the analysis contains presentation variables with no default values, it is not supported as a data source by BI Publisher.
If you want to structure the data based on Oracle BI Analysis Data Sets, the group breaks, data links and group-level functions are not supported.
The following are supported:
Global level functions
Setting the value for elements if null
Group Filters
For more information about the above supported features, see Chapter 3, "Structuring Data."
BI Publisher enables you to connect to your custom applications built with Oracle Application Development Framework and use view objects in your applications as data sources for reports.
Prerequisite: Before you can create a BI Publisher data model using a view object, you must first create the view object in your application following the guidelines in the chapter "Making a View Object Available to BI Publisher as a Data Source" in the Oracle Fusion Middleware Developer's Guide for Oracle Business Intelligence Publisher (Oracle Fusion Applications Edition).
To create a data set using a view object:
Click the New Data Set toolbar button and select View Object. The New Data Set - View Object dialog launches.
Enter a name for this data set.
Select the Data Source from the list. The data sources that you defined in the providers.xml file display.
Enter the fully qualified name of the application module (for example: example.apps.pa.entity.applicationModule.AppModuleAM).
Click Load View Objects.
BI Publisher calls the application module to load the view object list.
Select the View Object.
Any bind variables defined are retrieved. Create a parameter to map to this bind variable See Chapter 4, "Adding Parameters and Lists of Values."
Click OK to save your data set.
To structure data based on view object data sets, the group breaks, data links and group-level functions are not supported.
The following is supported: Setting the value for elements if null.
For more information about this supported feature, see Chapter 3, "Structuring Data."
BI Publisher supports Web service data sources that return valid XML data.
Important:
Additional configuration may be required to access external Web services depending on your system's security. If the WSDL URL is outside the company firewall, then see the section "Configuring Proxy Settings" in Oracle Fusion Middleware Administrator's Guide for Oracle Business Intelligence Publisher (Oracle Fusion Applications Edition).
If the Web service is protected by Secure Sockets Layer (SSL), then see the section "Configuring BI Publisher for Secure Socket Layer Communication" in Oracle Fusion Middleware Administrator's Guide for Oracle Business Intelligence Publisher (Oracle Fusion Applications Edition).
BI Publisher supports Web services that return both simple data types and complex data types. You must make the distinction between simple and complex when you define the Web service data model. See Section 2.10.1, "Adding a Simple Web Service: Example" and Section 2.10.2, "Adding a Complex Web Service" for descriptions of setting up each type.
Note that to include parameters for the Web service method, you must define the parameters first, so that they are available for selection when setting up the data source. See Chapter 4, "Adding Parameters and Lists of Values."
Multiple parameters are supported. Ensure the method name is correct and the order of the parameters matches the order in the method. To call a method in the Web service that accepts two parameters, you must map two parameters defined in the report to those two. Note that only parameters of simple type are supported, for example, string and integer.
Enter the WSDL URL and the Web Service Method.
Important:
Only document/literal Web services are supported.
To specify a parameter, click Add Parameter and select the parameter from the drop-down list.
Note:
The parameters must be set up in the Parameters section of the report definition See Chapter 4, "Adding Parameters and Lists of Values."
This example shows how to add a Web service to BI Publisher as a data source. The Web service returns stock quote information. The Web service passes one parameter: the quote symbol for a stock.
The WSDL URL is:
http://www.webservicex.net/stockquote.asmx?WSDL
If you are not familiar with the available methods and parameters in the Web service to call, you can open the URL in a browser to view them. This Web service includes a method called GetQuote. It takes one parameter, which is the stock quote symbol.
To add the Web service as a data source:
Click the New Data Set toolbar button and select Web Service. The New Data Set - Web Service dialog launches, as shown in Figure 2-25.
Enter the Web service name.
Enter the Web service information as follows:
Select False for Complex Type.
Enter the WSDL URL: http://www.webservicex.net/stockquote.asmx?WSDL
Enter the Method: GetQuote
If desired, enter a Time Out period in seconds. If the BI Publisher server cannot establish a connection to the Web service, the connection attempt times out after the specified time out period has elapsed.
Define the parameter to make it available to the Web service data set.
Select Parameters on the Data Model pane and click the Create New Parameter button. Enter the following:
Name — Enter an internal identifier for the parameter (for example, Symbol).
Data Type — Select String.
Default Value — If desired, enter a default for the parameter (for example, ORCL).
Parameter Type — Select Text.
Row Placement — Select a row placement value. The default is 1.
In the New_Parameter_1:Type: Text region, enter the following:
Display Label — Enter the label you want displayed for your parameter (for example: Stock Symbol).
Text Field Size — Enter the size for the text entry field in characters.
Select the options that you want to apply:
Text field contains comma-separated values — Select this option to enable the user to enter multiple comma-delimited values for this parameter.
Refresh other parameters on change — Performs a partial page refresh to refresh any other parameters whose values are dependent on the value of this one.
Return to your Web service data set and add the parameter as follows:
Click the data set name, Stock Quote.
On the toolbar, click Edit Selected Data Set to launch the Edit Data Set dialog.
In the Edit Data Set dialog, click Add Parameter. The Quote parameter displays, as shown in Figure 2-27.
Name the parameter, and click OK to close the Edit Data Set dialog.
Click Save.
Select the Data tab.
Enter a valid value for your Stock Symbol parameter, select the number of rows to return, and click View. Figure 2-28 shows the data returned from the example.
A complex Web service type internally uses soapRequest / soapEnvelope to pass the parameter values to the destination host.
To use a complex Web service as a data source, select Complex Type equal True, then enter the WSDL URL. After loading and analyzing the WSDL URL, the data model editor displays the available Web services and operations. For each selected operation, the data model editor displays the structure of the required input parameters. By choosing Show Optional Parameters, you can see all optional parameters as well.
If you are not familiar with the available methods and parameters in the Web service, open the WSDL URL in a browser to view them.
To add a complex Web service as a data source:
Enter the data set information as follows:
Enter a Name for the data set and select Web Service as the Type.
Select True for Complex Type.
Select a security header as follows:
2002 — Enables the "WS-Security" Username Token with the 2002 namespace:
http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd
2004 — Enables the "WS-Security" Username Token with the 2004 namespace:
http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText
Username and Password — Enter the username and password for the Web service, if required.
If desired, enter a Time Out period in seconds. If the BI Publisher server cannot establish a connection to the Web service, then connection attempt times out after the specified time out period has elapsed.
Enter a WSDL URL. When you enter the WSDL, the Web Service list populates with the available Web services from the WSDL.
Choose a Web Service from the list. When you choose a Web service from the list, the Method list populates with the available methods.
Select the Method. When you select the method, the Parameters display. If you want to see optional parameters as well, then select Show Optional Parameters.
Response Data XPath — If the start of the XML data for the report is deeply embedded in the response XML generated by the Web service request, then use this field to specify the path to the data to use in the BI Publisher report.
Define the parameter to make it available to the Web service data set.
Select Parameters on the Report definition pane and click New to create a parameter. Enter the following:
Name — Enter an internal identifier for the parameter.
Data Type — Select the appropriate data type for the parameter.
Default Value — If desired, enter a default value for the parameter.
Parameter Type — Select the appropriate parameter type.
Display label — Enter the label you want displayed for your parameter.
Text Field Size — Enter the size for the text entry field in characters.
Return to the Web Service data set and add the parameter.
Select the Web service data set and then click Edit Selected Data Set to launch the Edit Data Set dialog.
Select the parameters as shown in Figure 2-29.
To test the Web service, see Section 2.16, "Testing Data Models and Generating Sample Data."
To use an XML file as a data source, perform one of the following actions:
Place the XML file in a directory that your administrator has set up as a data source. See the section "Setting Up a Connection to a File Data Source" in Oracle Fusion Middleware Administrator's Guide for Oracle Business Intelligence Publisher (Oracle Fusion Applications Edition).
Upload the XML file to the data model from a local directory.
Important:
To use BI Publisher's layout editor and interactive viewer, sample data from the XML file source must be saved to the data model.
The following are guidelines for the support of XML files as a data set type in BI Publisher:
The XML files that you use as input to the BI Publisher data engine must be UTF-8 encoded.
Do not use the following characters in XML tag names: ~, !, #, $, %, ^, &, *, +, `, |, :, \", \\, <, >, ?, ,, /. If your data source file contains any of these characters, use the data model editor Structure tab to change the tag names to an acceptable one.
The XML file must be valid. Oracle provides many utilities and methods for validating XML files.
There is no metadata available from XML file data sets, therefore grouping and linking are not supported.
To create a data set using a XML file from a file directory data source:
On the toolbar, click New Data Set and select XML File. The New Data Set - XML File dialog launches, as shown in Figure 2-30.
Enter a name for the data set.
Click Shared to enable the Data Source list. This is the default selected option.
Select the Data Source where the XML file resides. The list is populated from the configured File Data Source connections.
To the right of File Name, click Browse to connect to the data source and browse the available directories. Select the file.
Click OK.
(Required) Save sample data to the data model. See Section 2.16, "Testing Data Models and Generating Sample Data."
To create a data set using a XML file stored locally:
On the toolbar, click New Data Set and select XML File. The New Data Set - XML File dialog launches, as shown in Figure 2-31.
Enter a name for this data set.
Select Local to enable the Upload button.
Click Upload to browse for and upload the XML file from a local directory. If the file has been uploaded to the data model, then it is available for selection in the File Name List.
Click Upload.
Click OK.
(Required) Save sample data to the data model. See Section 2.16, "Testing Data Models and Generating Sample Data."
After uploading the file, it displays on the Properties pane of the data model under the Attachments region, as shown in Figure 2-32.
See Section 1.7, "Setting Data Model Properties" for more information about the Properties pane.
To refresh the local file in the data model:
In the component pane, click Data Model to view the Properties page.
In the Attachment region of the page, locate the file in the Data Files list.
Click Refresh.
In the Upload dialog, browse for and upload the latest version of the file. The file must have the same name or it will not replace the older version.
Save the data model.
To delete the local file:
In the component pane, click Data Model to view the Properties page.
In the Attachment region of the page, locate the file in the Data Files list.
Click Delete.
Click OK to confirm.
Save the data model.
To use a CSV file as a data source, perform one of the following actions:
Place the CSV file in a directory that your administrator has set up as a data source. See "Setting Up a Connection to a File Data Source" in Oracle Fusion Middleware Administrator's Guide for Oracle Business Intelligence Publisher (Oracle Fusion Applications Edition).
Upload the CSV file to the data model from a local directory.
The following are guidelines for the support of CSV files as a data set type in BI Publisher:
The following CSV file delimiters are supported: Comma, Pipe, Semicolon, and Tab.
If your CSV file contains headers, the header names are used as the XML tag names. The following characters are not supported in XML tag names: ~, !, #, $, %, ^, &, *, +, `, |, :, \", \\, <, >, ?, ,, /. If your data source file contains any of these characters in a header name, use the data model editor Structure tab to edit the tag names.
CSV data sets support editing the data type assigned by the data model editor. See Section 2.12.3.1, "Editing the Data Type" for more information. If you update the data type for an element in the data set, you must ensure that the data in the file is compliant with the data type that you selected.
The CSV files that you use as input to the BI Publisher data engine must be UTF-8 encoded and cannot contain empty column headers.
Group breaks, data links, expression and group-level functions are not supported.
Data fields in CSV files must be in the canonical ISO date format for mapped date elements (for example, 2012-01-01T10:30:00-07:00), and ######.## for mapped number elements.
No data validation is provided for CSV files.
To create a data set using a CSV file from a file directory data source:
On the data model editor toolbar, click New Data Set and select CSV File. The New Data Set - CSV File dialog launches, as shown in Figure 2-33.
Enter a name for this data set.
Click Shared to enable the Data Source list.
Select the Data Source where the CSV file resides. The list is populated from the configured File Data Source connections.
Click Browse to connect to the data source and browse the available directories. Select the file.
(Optional) Select The first row a column header to specify if the first row in the file contains column names. If you do not select this option, the columns are assigned a generic name, for example, Column1, Column2. The XML tag names and display names assigned can be edited in the data model editor Structure tab.
Select the CSV delimiter used in the file. The default selection is Comma (,).
Click OK.
To create a data set using a CSV file stored locally:
On the toolbar, click New Data Set and select CSV File. The New Data Set - CSV File dialog launches, as shown in Figure 2-34.
Enter a name for this data set.
Select Local to enable the Upload button.
Click Upload to browse for and upload the CSV file from a local directory. If the file has been uploaded to the data model, then it is available for selection in the File Name List.
(Optional) Select The first row a column header to specify if the first row in the file contains column names. If you do not select this option, the columns are assigned a generic name, for example, Column1, Column2. The XML tag names and display names assigned can be edited in the data model editor Structure tab.
Select the CSV Delimiter used in the file. The default selection is Comma (,).
Click OK.
To edit the data type for a CSV file element, click the data type icon or update it from the element Properties dialog.
The data for an element must be compliant with the data type that you assign. The user interface does not validate the data when you update the data type. If the data does not match, for example, a string value is present for an element you defined as Integer, errors may occur in the layout editing tools and or at runtime.
You can only update the data types for CSV file data sources.
After uploading the file, it is displayed on the Properties pane of the data model under the Attachments region, as shown in Figure 2-35.
See Section 1.7, "Setting Data Model Properties" for more information about the Properties pane.
To refresh the local file in the data model:
In the component pane, click Data Model to view the Properties page.
In the Attachment region of the page, locate the file in the Data Files list.
Click Refresh.
In the Upload dialog, browse for and upload the latest version of the file. The file must have the same name or it will not replace the older version.
Save the data model.
To delete the local file:
In the component pane, click Data Model to view the Properties page.
In the Attachment region of the page, locate the file in the Data Files list.
Click Delete.
Click OK to confirm.
Save the data model.
BI Publisher supports using data stored as a character large object (CLOB) data type in your data models. This feature enables you to use XML data generated by a separate process and stored in your database as input to a BI Publisher data model.
Use the Query Builder to retrieve the column in your SQL query, then use the data model editor to specify how you want the data structured. When the data model is executed, the data engine can structure the data either as:
A plain character set within an XML tag name that can be displayed in a report (for example, an Item Description)
Structured XML
To create a data set from data stored as a CLOB:
On the toolbar, click New Data Set and then select SQL Query. The New Data Set - SQL Query dialog launches.
Enter a name for the data set.
If you are not using the default data source for this data set, select the Data Source from the list.
Enter the SQL query or use the Query Builder to construct your query to retrieve the CLOB data column. See Section 2.3.2, "Using the SQL Query Builder" for information on the Query Builder utility. Figure 2-36 shows an example query in which the CLOB data is stored in a column named "DESCRIPTION".
After entering the query, click OK to save. BI Publisher validates the query.
By default, the data model editor assigns the CLOB column the "CLOB" data type. To change the data type to XML, click the data type icon and select XML, as shown in Figure 2-37.
When you execute the query, if the CLOB column contains well-formed XML, and you select the XML data type, the data engine returns the XML data, structured within the CLOB column tag name.
Example output when data type is XML:
Note the <DESCRIPTION> element contains the XML data stored in the CLOB column, as shown in Figure 2-38.
Example output when data type is CLOB
If you select to return the data as the CLOB data type, the returned data is structured as shown in Figure 2-39.
For specific notes on using CLOB column data in a bursting query, see Section 7.3, "Adding a Bursting Definition to Your Data Model."
BI Publisher can retrieve data stored in the form of XHTML documents stored in a database CLOB column and render the markup in the generated report. To enable the BI Publisher report rendering engine to handle the markup tags, you must wrap the XHTML data in a CDATA section within the XML report data that is passed by the data engine.
It is recommended that you store the data in the database wrapped with the CDATA section. You can then use a simple select statement to extract the data. If the data is not wrapped in the CDATA section, then you must include in your SQL statement instructions to wrap it.
The following sections describe how to extract XHTML data in each case:
To display the markup in a report, you must use the syntax described in "Rendering HTML Formatted Data in a Report" in the Oracle Fusion Middleware Report Designer's Guide for Oracle Business Intelligence Publisher. This section also describes the supported HTML formats. Rendering the HTML markup in a report is supported for RTF templates only.
Assume you have the following data stored in a database column called "CLOB_DATA":
<![CDATA[ <p><font style="font-style: italic; font-weight: bold;" size="3"> <a href="http://www.oracle.com">oracle</a></font> </p> <p><font size="6"><a href="http://docs.oracle.com/">Oracle Documentation</a> </font></p> ]]>
Retrieve the column data using a simple SQL statement, for example:
select CLOB_DATA as "RTECODE" from MYTABLE
In the data model editor, set the data type of the RTECODE column to XML, as shown in Figure 2-40.
Assume you have the following data stored in a database column called "CLOB_DATA":
<p><font style="font-style: italic; font-weight: bold;" size="3"> <a href="http://www.oracle.com">oracle</a></font> </p> <p><font size="6"><a href="http://docs.oracle.com/">Oracle Documentation</a> </font></p>
Use the following syntax in your SQL query to retrieve it and wrap it in the CDATA section:
select '<![CDATA' || '['|| CLOB_DATA || ']' || ']>' as "RTECODE"from MYTABLE
In the data model editor, set the data type of the RTECODE column to XML, as shown in Figure 2-40.
Using the HTTP (XML Feed) data set type you can create data models from RSS and XML feeds over the Web by retrieving data through the HTTP GET method.
Important:
Additional configuration might be required to access external data source feeds depending on your system's security. If the RSS feed is protected by Secure Sockets Layer (SSL) then see the section "Configuring BI Publisher for Secure Sockets Layer Communication" in Oracle Fusion Middleware Administrator's Guide for Oracle Business Intelligence Publisher (Oracle Fusion Applications Edition).
Note that to include parameters for the data set, you must define the parameters first, so that they are available for selection when defining the data set. See Chapter 4, "Adding Parameters and Lists of Values."
To create a data set from an HTTP XML feed:
On the toolbar, click New Data Set and select HTTP (XML Feed). The New Data Set - HTTP (XML Feed) dialog launches, as shown in Figure 2-41.
Enter a name for this data set.
Enter the URL for the source of the RSS or XML feed.
Select the Method: GET.
Enter the Username, Password, and Realm for the URL, if required.
To add a parameter, click Add Parameter. Enter the Name and select the Value. The Value list is populated by the parameter Name defined in the Parameters section. See Chapter 4, "Adding Parameters and Lists of Values."
Click OK to close the data set dialog.
Oracle Endeca Information Discovery is an enterprise data discovery platform for advanced exploration and analysis of complex and varied data. Information is loaded from disparate source systems and stored in a faceted data model that dynamically supports changing data. BI Publisher enables Oracle Endeca Information Discovery users to define Endeca Query Language (EQL) queries against the Oracle Endeca Server to retrieve data back to BI Publisher for use in enterprise reporting.
Prerequisite: An administrator must configure the integration with Oracle Endeca Server. For more information, see "Configuring Integration with Oracle Endeca Server" in Oracle Fusion Middleware Administrator's Guide for Oracle Business Intelligence Publisher (Oracle Fusion Applications Edition).
See the Oracle Endeca Server Query Language Reference for information about writing EQL queries. Figure 2-42 shows a sample Oracle Endeca query.
To create a data set using an EQL query against an Oracle Endeca Server data source:
Click the New Data Set toolbar button and select Oracle Endeca Query. The New Data Set - Oracle Endeca Query dialog launches.
Enter a name for this data set.
Select the Data Store for this data set.
Enter the EQL query by direct entry or by copying and pasting from another source such as an Oracle Endeca Information Discovery view.
Click OK.
For data sets retrieved from the Oracle Endeca Server, group breaks, data links and group-level functions are not supported.
The following are supported:
Global level functions
Setting the value for elements if null
Group Filters
For more information about the above supported features, see Chapter 3, "Structuring Data."
The data model editor enables you to test your data model and view the output to ensure your results are as expected. After running a successful test, you can choose to save the test output as sample data for your data model. You can also use the Export feature to export sample data to a file. If your data model fails to run, you can view the data engine log.
To test your data model:
In the data model editor, select the Data tab, as shown in Figure 2-43.
For SQL Query, Oracle BI Analysis, View Object, and Oracle Endeca Query data sets: On the Data tab, select the number of rows to return as shown in Figure 2-44. If you included parameters, enter the desired values for the test.
Click View to display the XML that is returned by the data model.
Select one of the following options to display the sample data:
Use Tree View to view the sample data in a data hierarchy. This is the default display option.
Use Table View to view the sample data in a formatted table like you see in BI Publisher reports.
To save the test data set as sample data for the data model:
After the data model has successfully run, click Save as Sample Data, as shown in Figure 2-45. The sample data is saved to the data model. See Section 1.7.2, "Attachments to the Data Model" for more information.
For SQL Query, Oracle BI Analysis, View Object, and Oracle Endeca Query data sets: On the Data tab, select the number of rows to return.
After the data model has successfully run, click Export. You are prompted to open or save the file to a local directory.
To view the data engine log:
Click View Data Engine Log. You are prompted to open or save the file to a local directory. The data engine log file is an XML file.
BI Publisher stores information about the current user that can be accessed by your report data model. The user information is stored in system variables as described in Table 2-2.
Table 2-2 User Information Stored in Variables
| System Variable | Description |
|---|---|
|
xdo_user_name |
User ID of the user submitting the report. For example: Administrator |
|
xdo_user_roles |
Roles assigned to the user submitting the report. For example: XMLP_ADMIN, XMLP_SCHEDULER |
|
xdo_user_report_oracle_lang |
Report language from the user's account preferences. For example: ZHS |
|
xdo_user_report_locale |
Report locale from the user's account preferences. For example: en-US |
|
xdo_user_ui_oracle_lang |
User interface language from the user's account preferences. For example: US |
|
xdo_user_ui_locale |
User interface locale from the user's account preferences. For example: en-US |
To add the user information to the data model, you can define the variables as parameters and then define the parameter value as an element in your data model. Or, you can simply add the variables as parameters then reference the parameter values in your report.
The following query:
select :xdo_user_name as USER_ID, :xdo_user_roles as USER_ROLES, :xdo_user_report_oracle_lang as REPORT_LANGUAGE, :xdo_user_report_locale as REPORT_LOCALE, :xdo_user_ui_oracle_lang as UI_LANGUAGE, :xdo_user_ui_locale as UI_LOCALE from dual
returns the following results:
<?xml version="1.0" encoding="UTF-8"?> <! - Generated by Oracle BI Publisher - > <DATA_DS> <G_1> <USER_ROLES>XMLP_TEMPLATE_DESIGNER, XMLP_DEVELOPER, XMLP_ANALYZER_EXCEL, XMLP_ADMIN, XMLP_ANALYZER_ONLINE, XMLP_SCHEDULER </USER_ROLES> <REPORT_LANGUAGE>US</REPORT_LANGUAGE> <REPORT_LOCALE>en_US</REPORT_LOCALE> <UI_LANGUAGE>US</UI_LANGUAGE> <UI_LOCALE>en_US</UI_LOCALE> <USER_ID>administrator</USER_ID> </G_1> </DATA_DS>
The following example limits the data returned by the user ID:
select EMPLOYEES.LAST_NAME as LAST_NAME, EMPLOYEES.PHONE_NUMBER as PHONE_NUMBER, EMPLOYEES.HIRE_DATE as HIRE_DATE, :xdo_user_name as USERID from HR.EMPLOYEES EMPLOYEES where lower(EMPLOYEES.LAST_NAME) = :xdo_user_name
Notice the use of the lower() function, the xdo_user_name is always be in lowercase format. BI Publisher does not have a USERID so you must use the user name and either use it directly in the query; or alternatively you could query against a lookup table to find a user id.
To bind user attribute values stored in your LDAP directory to a data query you can define the attribute names to BI Publisher to create the bind variables required.
The attributes that can be used to create bind variables must be defined in the Security Configuration page by an administrator. The attributes are defined in the Attribute Names for Data Query Bind Variables field of the LDAP Security Model definition. See the section "Configuring BI Publisher to Recognize the LDAP Server" in Oracle Fusion Middleware Administrator's Guide for Oracle Business Intelligence Publisher (Oracle Fusion Applications Edition) for information about this field. Any attribute defined for users can be used (for example: memberOf, sAMAccountName, primaryGroupID, mail).
You can reference the attribute names that you enter in the Attribute Names for Data Query Bind Variables field of the LDAP Security Model definition in the query as follows:
xdo_<attribute name>
Assume that you have entered the sample attributes: memberOf, sAMAccountName, primaryGroupID, mail. These can then be used in a query as the following bind variables:
xdo_memberof xdo_SAMACCOUNTNAME xdo_primaryGroupID xdo_mail
Note that the case of the attribute is ignored; however, the "xdo_" prefix must be lowercase.
Use these in a data model as follows:
SELECT :xdo_user_name AS USER_NAME, :xdo_user_roles AS USER_ROLES, :xdo_user_ui_oracle_lang AS USER_UI_LANG, :xdo_user_report_oracle_lang AS USER_REPORT_LANG, :xdo_user_ui_locale AS USER_UI_LOCALE, :xdo_user_report_locale AS USER_REPORT_LOCALE, :xdo_SAMACCOUNTNAME AS SAMACCOUNTNAME, :xdo_memberof as MEMBER_OF, :xdo_primaryGroupID as PRIMARY_GROUP_ID, :xdo_mail as MAIL FROM DUAL
The LDAP bind variables return the values stored in the LDAP directory for the user that is logged in.
|
 Copyright © 2010, 2013, Oracle and/or its affiliates. All rights reserved. Legal Notices |
|
