Configuring the LDAP connection for SSO

The SSO implementation uses LDAP to retrieve and maintain the user information. For the Oracle Access Manager SSO, you configure Studio to use Oracle Internet Directory for LDAP.

In Studio, to configure the LDAP connection for SSO:

  1. From the Studio menu, select Control Panel.
  2. In the Control Panel menu, under Portal, click Settings.
  3. In the Settings page menu to the right, click Authentication.
  4. On the Authentication page, click the LDAP tab.
  5. Check the Enabled checkbox. Do not check the Required checkbox.
  6. Under Default values, click the Oracle Internet Directory radio button, then click Reset Values.

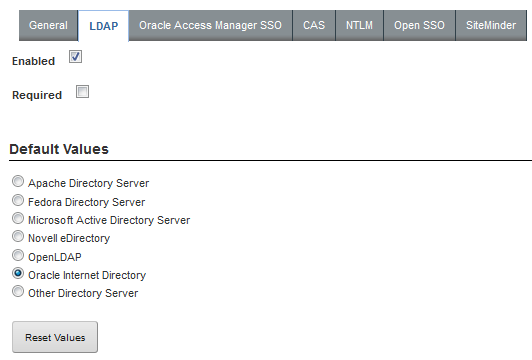

    LDAP connection page with initial selections for SSO
  7. Configure the LDAP connection, users, and groups as described in Configuring the LDAP settings and server.
  8. To save the LDAP connection information, click Save.
  9. Configure the application roles for your user groups as described in Assigning roles based on LDAP user groups.
  10. Make sure that the password policy is configured to not require users to change their password. See Configuring the Studio password policy when using LDAP.
