The Request for Bid (RFB) is a type of line item BP. RFBs are unique in that the business process requires participation from personnel outside your company. For an RFB, you need to create two sets of forms—one for the requestor (the Primavera Unifier user who creates the RFB and invites bids) and another for the bidders (the vendors) to fill out with bid information.
An RFB must include a reference process to a vendor list business process, which contains the pool of vendors to whom the RFB will be sent. This vendor reference process will populate the upper fields of the RFB at runtime. Primavera Unifier automatically launches this reference process when the RFB is activated.
Tip: When you create the bidder’s view of RFB forms, keep in mind that the bidders may or may not be Primavera Unifier users. You might want to keep some fields hidden or non-editable. You might also want to allow bidders to modify line items, but prevent them from adding or removing them.

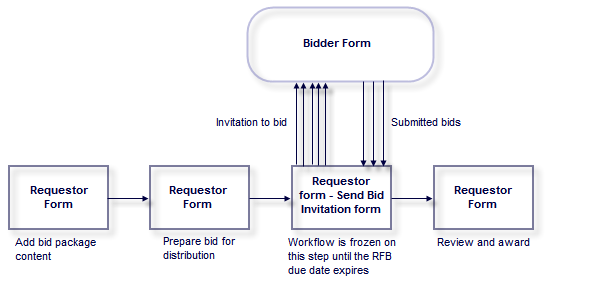

Following is an example of a workflow for a bid invitation:
The RFB business process includes a bid tabulation feature that users can use to compare all or selected bids that have been received from vendors. This feature is available after the bidding process is closed. The bid tabulation is displayed on a sheet that you can design in Primavera uDesigner. (If you do not design a bid comparison sheet, Primavera Unifier automatically provides a default sheet.)
Once the RFB business process is active in Primavera Unifier, the bid procedure runs as follows:
The Primavera Unifier user |
To start the procedure, the user:
When the internal review workflow is complete, the user:
Once the bid invitations have been sent, the user must wait for the bid due date to pass. |
|||||||||
The vendor |
|
|||||||||
The Primavera Unifier User |
When the due date is reached, the user:
|
For these business processes to work effectively in Primavera Unifier, you will need to create the following components in Primavera uDesigner:
• | A vendor master business process to contain vendor or supplier information. Primavera Unifier allows your company only one vendor master list business process. Create this vendor master using the information under the “Simple Type” business process. |
Tip: You can create an “approved vendors” list for a specific project that includes a sub-set of the company’s master list of vendors. This makes the bidding process easier because the requestor does not have to select vendors from the entire list of company suppliers. To create this list, use a Line Item BP with a sub-type of “Line Items to Filter BP Records” (see Line Item Type).
In order for the vendor master to work properly with the RFB, the upper form of the master list must include the following data elements:
• | Date picker (uuu_due_date) |
• | Contact Company (uuu_contact_company) |
• | Contact Last Name (uuu_contact_last_name) |
• | Contact First Name (uuu_contact_first_name) |
• | User ID (uuu_user_id) |
• | Status |
• | A requestor form, which should include: |
• | Upper form |
• | Detail form |
• | Line Item List |
• | Workflow |
• | Log |
• | Reference process (to reference the vendor list business process) |
• | A bidder form, which should include: |
• | Upper form |
• | Detail form |
• | Line Item List |
• | Log |
• | (Optional) A bid comparison sheet, which should include: |
• | Upper form |
• | Detail form |
The following table outlines the design steps necessary to create the RFB business process.
(if necessary) |
See the instructions beginning with Creating a Data Structure. |
|||||||
|
This step initializes the design process for the BP. See Starting a New Design. |
|||||||
FOR THE REQUESTOR:
|
See the instructions beginning with Starting an Upper Form. |
Mandatory fields for the upper form are:
|
||||||
|
See the instructions beginning with Starting a Detail Form. |
Mandatory fields for the detail form are:
|
||||||
|
See Adding a Line Item List to a Form
|
|||||||
|
See the instructions beginning with Starting a Workflow. |
|||||||
|
See Designing a Log.
|
|||||||
|
See Adding a Reference Process to Auto-Populate Data
|
|||||||
FOR THE BIDDER:
|
See the instructions beginning with Starting an Upper Form.
|
|||||||
|
See the instructions beginning with Starting a Detail Form. |
Mandatory fields for the detail form are:
|
||||||
|
See Adding a Line Item List to a Form
|
|||||||
|
See Designing a Log. |
|||||||
FOR THE BID COMPARISON SHEET: (optional)
|
See the instructions beginning with Starting an Upper Form. |
The upper form must contain the same elements that are on the bidder upper form. |
||||||
|
The detail form must contain the same elements that are on the bidder detail form. |
