Viewing Delivered Application Classes

To set up or view application classes, use the Application Class Registry component (HRS_APPCLASS).

This topic provides an overview of application classes and discusses how to:

View delivered application class types.
View registered application classes.

Pages Used to View Delivered Application Classes

Page Name	Definition Name	Navigation	Usage
Application Class Type Setup	HRS_ACTYPE	select Set Up ELM, then select Utilities, then select Application Class Types, then select Application Class Type Setup	View delivered application class types.
Application Class Setup	HRS_APPCLASS	select Set Up ELM, then select Utilities, then select Application Class Registry, then select Application Class Setup	View delivered application classes.

Understanding Application Classes

The application class registry provides a flexible way to classify application classes. An application class type represents the specific interface, while the application classes that fall under that type implement that interface.

PeopleSoft delivers the application types and classes that you need to integrate Enterprise Learning Management with third-party Webcast and content sources.

Application Class Type Setup Page

Use the Application Class Type Setup page (HRS_ACTYPE) to view delivered application class types.

Navigation

select Set Up ELM, then select Utilities, then select Application Class Types, then select Application Class Type Setup

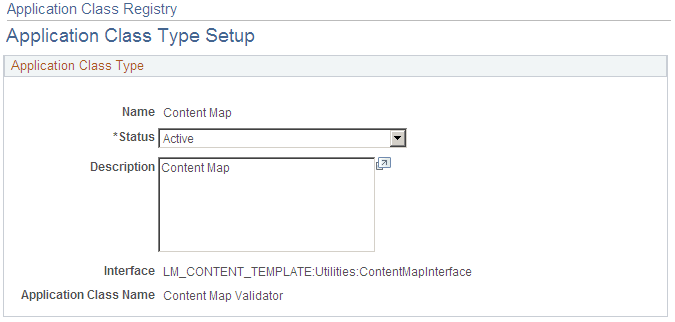

Image: Application Class Type Setup page

This example illustrates the fields and controls on the Application Class Type Setup page.

Name

The name describes this application class type.

Status

The current status of the class type. Values are:

Active: Indicates a fully defined application class type.
Deprecated: Indicates that the class type is in the process of being retired. While it is still usable, there should be a newer version available.
In Progress: Indicates that the application class type is still in development.
Retired: Indicates that the class type is no longer used and is maintained only for historical purposes.

Interface

The PeopleTools application class interface that the application class type is associated with.

Verification

Identifies the registered application class used to validate that application classes meet the type requirement.

Application Class Setup Page

Use the Application Class Setup page (HRS_APPCLASS) to view delivered application classes.

Navigation

select Set Up ELM, then select Utilities, then select Application Class Registry, then select Application Class Setup

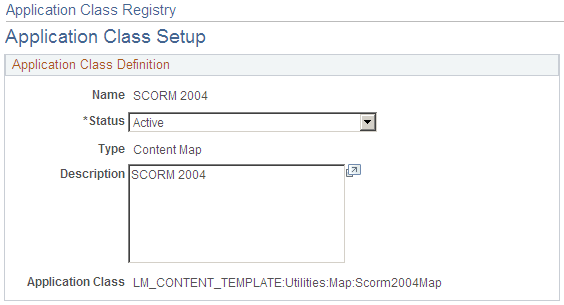

Image: Application Class Setup page

This example illustrates the fields and controls on the Application Class Setup page.

Name

The name describes this application class.

Status

Status values are the same as for application class types.

See Application Class Type Setup Page.

Type

The application class type determines which interface and verification is used to validate that the application class meets the standard for the type.

Application Class

The official designation of the application class definition.
