Downloading and installing Oracle ADF Runtime

After you install WebLogic Server, install ADF Runtime 11.1.1.6, which contains the JRF needed by the Provisioning Service.

This topic assumes that you have installed Oracle WebLogic Server 10.3.6.

You will need an Oracle account to download the Application Development Framework installer.

Important: The installation instructions in this topic are a distillation of the complete instructions in the Oracle Fusion Middleware Installation Guide for Application Developer. The complete instructions provide detailed information about installing the software, such as system requirements. The complete instructions are available online at: http://docs.oracle.com/cd/E23943_01/doc.1111/e14827/toc.htm

Note: Before installing Oracle ADF Runtime on Linux, ensure you:

Do not run the installation program as the root user.
Have an X-Windows (X11) environment. The installer requires that your monitor must be configured to display at least 256 colors.

Important: Before installing Oracle ADF Runtime on Windows, ensure that the path to the location where you have installed the Java JDK is C:\Java, or another path that does not include spaces. If you install the Java JDK to the default location (C:\Program Files), installation of Oracle ADF Runtime will fail.

To install Oracle ADF Runtime:

Download the ADF package:
1. Go to http://www.oracle.com/technetwork/developer-tools/adf/downloads/index.html.
  The following graphic illustrates the location of the Application Development Runtime download link:
2. Click the Accept License Agreement radio button at the top of the page.
3. In the Application Development Runtime list, choose 11.1.1.6 and then click Download File.
4. If you are not already logged in, sign in (on the Sign In page) with your Oracle username and password.
5. Click Save File on the download dialog.
Unpack the ADF zip package.
The package contains:
- readme.htm file
- Disk1 directory
- Disk2 directory
From a command prompt, change to the Disk1 directory.
Run the installer:
```
setup.exe -jreLoc <jre_location>
```
<jre_location> is the full path to the location of the Sun Java 6 JRE (Java Runtime Environment) that you installed. The JRE is located in the JDK installation directory.

For example:
```
setup.exe -jreLoc c:\Java\jdk1.6.0_43
```
The Welcome page of the ADF installation wizard is displayed.
On the Welcome page, read the information, then click Next.
On the Install Software Updates page, click the Skip Software Updates radio button, then click Next.
On the Prerequisite Checks page, wait until the installation process passes all the necessary checks.

If everything passes the checks, click Next.
On the Specify Installation Location page, verify that the Oracle Middleware Home directory is the location where you installed WebLogic, then click Next.

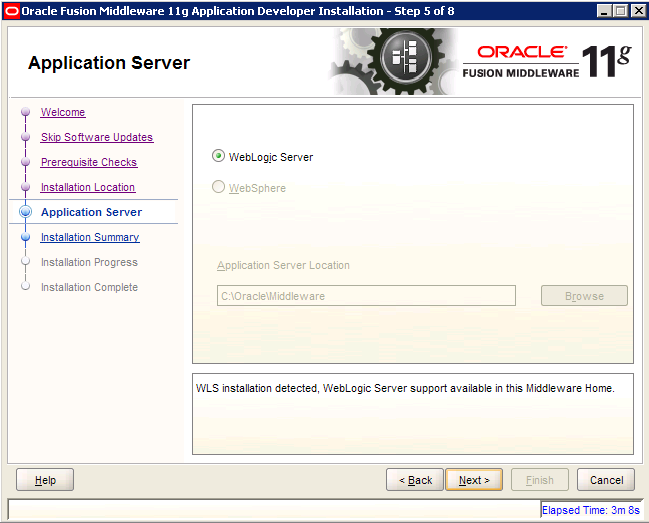

On the Application Server page, click the WebLogic Server radio button, then click Next.
On the Installation Summary page, verify the installation details, then click Install.
On the Installation Progress page, when the installation process has completed, click Next.
On the Installation Complete page, to exit the installer, click Finish.
Two shortcuts are created in the Start Menu:
- Oracle Application Developer 11g
- Oracle Common Home 11g
