Creating a physical schema

After you have created an Endeca Server technology, you create a physical schema to associate with it.

To create a physical schema:

  1. In ODI Studio, select the Topology tab.
  2. Expand Physical Architecture > Technologies > Endeca Server.
  3. Right click the Endeca Server you created earlier and select New Physical Schema.

    For example:

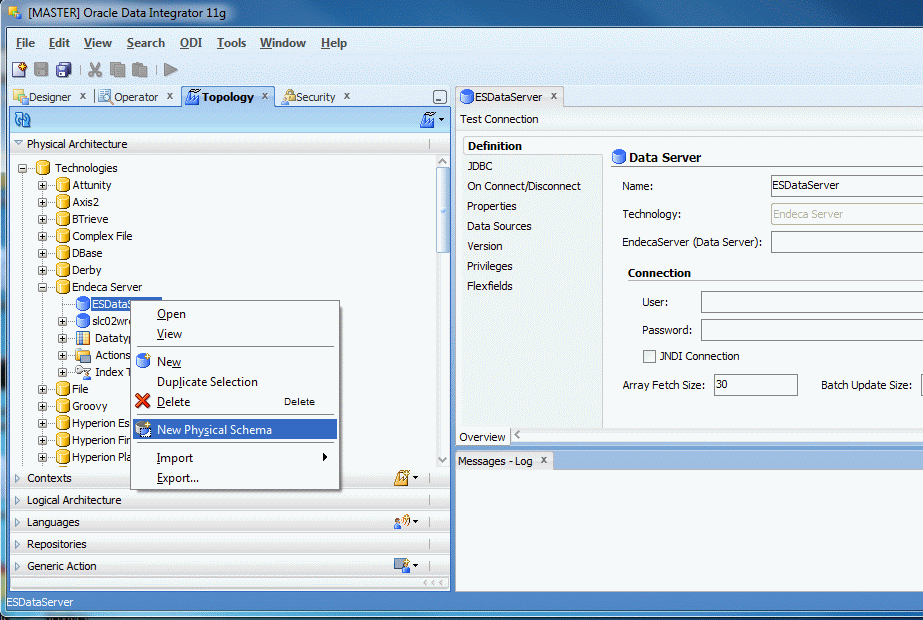

    New Physical Schema option on the Topology tab
  4. Select the Definition pane.
  5. Leave all the default values and click Save.
