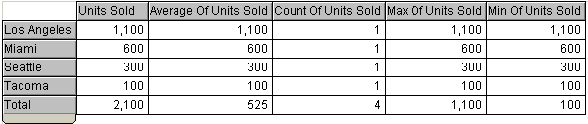

If the Surface Value property is enabled, the previous Pivot section, with regular Break Total line, is displayed as:
All cell values for each column in the Break Total line have been updated to show the aggregation of all Fact values that are displayed in that column using the aggregation data function specified for that column.
The Break Total value for the “Units Sold” column is shown to be 2100 which is the sum (i.e. the aggregation data function used for that column) of all displayed Fact detail cell values in the column (this value, 2100, happens to be the same as the value shown when surface values were disabled and the underlying Table section values were used, because of the mathematical nature of a sum operation).
For the “Average Of Units Sold” column – the Average aggregation data Function is used for the Fact detail cells. As a result, this same data function is used to evaluate the Break Total cell value. The value of 525 is evaluated to be the sum of the displayed fact detail cells (= 2,100 = 1,100 + 600 + 300 + 100) divided by the number of occurrences of displayed fact detail cell values (4).
The “Count Of Units Sold” column uses the Count data function. As a result the Break Total value uses the Count data function operating against the number of occurrences of displayed Fact detail cells. Since there are four fact detail cell values in this column, the Break Total value is 4.
The “Max Of Units Sold” column uses the Maximum data function. As a result the Break Total value uses the Maximum data function to evaluate the largest number within the displayed Fact detail cells. This number is 1,100 which is the value displayed in the Break Total cell for this column.
The “Min Of Units Sold” column uses the Minimum data function. As a result, the Break Total value uses the Minimum data function to evaluate the largest number within the displayed Fact detail cells. This number is 1,100 which is the value displayed in the Break Total cell for this column.
