Using a Custom Chart Color Scheme

If you want to use a chart color scheme other than those offered in either the Legacy or Standard Chart color schemes, you can design and apply a custom chart scheme. A custom chart color scheme persists only to the chart to which it has been applied.

  To create a custom color scheme:

  1. Select the chart, and on the short cut menu, select Properties.

    The Chart Properties dialog box is displayed.

  2. On the General tab, select Color Scheme for Data Points...

    The Choose Color Scheme dialog box is displayed.

  3. Select Custom.

  4. From the color palette, double-click the chart color scheme item to change.

    An extended color palette is displayed.

  5. From the extended color palette, select the color to apply for the color scheme, and click OK.

    You can change any of the seventeen colors displayed on the Choose Color Scheme dialog box.

In the following example, a custom color scheme has been selected for the bar chart:

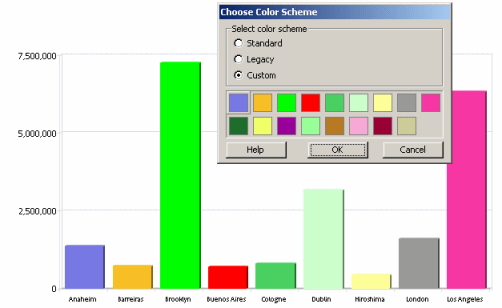

Graphic shows custom chart color scheme applied to a bar chart.
