Changing a Control Object Title

When working with control objects, change the default title to a title the user understands.

Note:

The exercise in this section assumes that you have previously inserted a new Dashboard section in Sample3.bqy and renamed the new section Controls.

  To change an object’s title:

  1. From the Elements pane, expand the Controls folder.

    Note:

    The Controls folder is only visible in Design mode.

  2. Drag the desired control object (command button, text box, and so on) to the Content pane.

    Image shows the Content pane.

  3. Double-click the control object to display the Properties dialog box.

  4. Type a new entry in the Title field and click OK to view the results.

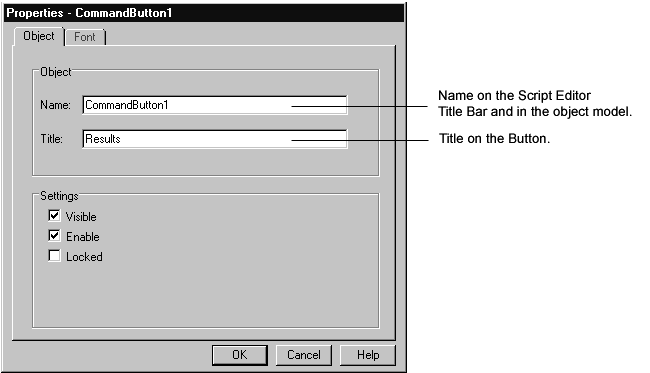

    Image shows the Properties dialog box.

    The entry in the Title field is displayed as a label on the control object. The entry in the Name field is displayed on the Title bar in the Script Editor and in the object model.
