5 Prerequisites

Before you start the installation process, ensure the following:

SOA Patch:

• SOA Suite patch 14137846 and 14630316 are installed.

AIA Foundation Pack Installation:

• Install AIA Foundation Pack 11.1.1.6.0 before you install the Adverse Event: InForm and Argus Safety integration.

  For more information on how to install the AIA Foundation Pack, search for Oracle® Fusion Middleware Installation and Upgrade Guide for Oracle Application Integration Architecture Foundation Pack on the Oracle Technology Network (OTN) at http://www.oracle.com/technetwork/middleware/foundation-pack/documentation/index.html and download the latest version. This guide is constantly updated and bug fixed.

Backup Customizations:

• Take a backup of any customizations before installing the patch. If you do not take a backup, your customizations will be overwritten.

  For more information about backing up your customizations, see the section "Creating Backups of Your Customizations".

AIA Foundation Pack Patch:

• Install the Patch on top of AIA Foundation Pack 11.1.1.6.

Argus File Structure:

• Create a file structure in Argus Interchange Server to enable file sharing.

  The following example provides information to create the folders and assign permissions to the folders to enable file sharing:

  Create a folder in Argus ESM Server (for example, C:\ INF-ARG-INTEGRATION). The parent folder should have three sub folders named in, out, and ack-archive. The in folder is the parent folder for all E2B+ files. The out folder is the parent folder of all acknowledgement files. The ack-archive folder is the parent folder for all the processed acknowledgement files.

  For Single-tenant Argus installation, you do not have to create a specific folder for each enterprise. The file structure is as follows:

  C: \INF-ARG-INTEGRATION

  • in

  • out

  • ack-archive

  For Multi-tenant Argus installation, within each of these directories, there are sub-directories for each enterprise. In the following sample folder structure, <ENT<n>> represents the enterprise short name. This value will also be entered in the HS_TRIAL_SAFETY_CONFIG DVM. For more information about HS_TRIAL_SAFETY_CONFIG DVM, see Oracle Health Sciences Adverse Event Integration Pack for Oracle Health Sciences InForm and Oracle Argus Safety Implementation Guide. The file structure is as follows:

  C: \INF-ARG-INTEGRATION

  • in

    • ent1

    • ent2

    • ent3

  • out

    • ent1

    • ent2

    • ent3

  • ack-archive

    • ent1

    • ent2

    • ent3

• Create a mount point between the parent directory (for example, C:\INF-ARG-INTEGRATION) and SOA_Server. This enables file adapters on SOA_Server to exchange the files with the Argus Safety system. The SOA server must be able to access in, out, and ack-archive directories of Argus Interchange (Argus ESM) server.

• Create a folder for archiving the files. For example, C:\INF-ARG-INTEGRATION\Archive.

• Argus Interchange Server user needs read and write permissions to the folders. Assign read and write permissions to these folders:

  • C:\INF-ARG-INTEGRATION\in

  • C:\INF-ARG-INTEGRATION\out

  • C:\INF-ARG-INTEGRATION\ack-archive

  The following is the sample folder structure if SOA server is on a Linux environment:

  On SOA server, create a folder. For example, the Argus Interchange server will be mounted to the following parent folder:

  /home/user/ArgusSafety

  The Write File Adapter writes an E2B+ file with 660 permissions to this folder on the SOA server. The directory is a file mount between the Argus Interchange server and the SOA server. This destination directory is secured by the Operating System (OS) level security. On the Argus Interchange server, only the owner and the group (administrator) will have read and write access to the file. The user who logs in as well as shares the folder with should have local administrator rights.

5.1 Enabling SSL on SOA Server

You need to enable SSL on the SOA server for the following reasons:

• Since patient data is sent in the message from InForm Publisher to the SOA server, Oracle recommends that you utilize https to send the data.

• Default SOA server endpoint has a global policy that requires SAML or user name token authentication. InForm publisher sends user name token in the SOAP header. To pass the user name token in the SOAP header, InForm Publisher requires SSL enabled SOA server endpoint. �

To enable SSL, see Oracle® Fusion Middleware Securing Oracle WebLogic Server 11g Release 1 (10.3.6).

5.2 Configuring SOA Server to Invoke InForm Adapter Over HTTPS

To invoke InForm Adapter in secure mode, perform the following:

The https certificate to access InForm Adapter must be loaded into the trusted keystore on the SOA server. You need the certificate that is installed on the InForm Adapter server.

1. Add the certificate to the WebLogic trust keystore. The following example shows how to add the certificate to DemoTrust.jks.

   The following link provides algorithm for locating trust store by WebLogic:

   http://docs.oracle.com/cd/E11035_01/wls100/secmanage/identity_trust.html#wp1183754

   Based on this, you can add the downloaded certificate to any trust keystores.

   1. Ensure that the SOA server can access the certificate. If the SOA server is on a different machine, copy the certificate to a folder in the SOA server machine.

      For example, copy InForm Adapter certificate to the SOA server folder <Oracle Home>/<certs>/folder.

   2. Navigate to the location of the trust keystore. For example, if you are adding certificate to DemoTrust.jks, then navigate to <Middleware_Home>/wlserver_10.3/server/lib.

   3. Execute the following command:

      keytool -import -trustcacerts -v -keystore DemoTrust.jks -file <Oracle Home>/<certs>/<cert_name> -alias InFormAdapterCert

   4. Enter the password when prompted.

   5. Enter Yes when prompted ”Trust this certificate? [no]:”.

   6. Execute the following command to ensure that the certificate is added:

      keytool -v -list -keystore DemoTrust.jks -storepass <password for keystore>

   7. Modify the startWebLogic.sh script in <MIDDLEWARE_HOME>/user_projects/domains/soa_domain/bin/startWebLogic.sh as follows:

      1. Open the startWebLogic.sh script.

      2. Modify the line JAVA_OPTIONS="${SAVE_JAVA_OPTIONS}" to JAVA_OPTIONS="${SAVE_JAVA_OPTIONS} -Djavax.net.ssl.trustStore=<full path to keystore>".

         Note:

         startWebLogic.sh requires the location of the custom trust keystore and hence modifying this script is necessary.

   8. Restart SOA server, Admin server, and Node manager.

2. Create a key in the credential store for InForm Adapter authentication credentials.

   InForm Adapter authentication credentials are defined at the trial level when InForm Adapter is being invoked over an https connection. If your company uses the same authentication user for all trials, you must perform the following steps to create a key in the SOA server key store. The name of this key will be entered on a screen in the Configuration Wizard.

   If you use different users per trial, follow the instructions provided in the Oracle Health Sciences Adverse Event Integration Pack for Oracle Health Sciences InForm and Oracle Argus Safety Implementation Guide for setting up a trial for this integration.

   1. Open Enterprise Manager.

   2. Navigate to Farm_soa_domain > WebLogic Domain > soa_domain.

   3. Click on the WebLogic Domain drop-down box and select Security > Credentials.

      Figure 5-1 WebLogic Domain


      Description of "Figure 5-1 WebLogic Domain"



   4. In the Credential Store Provider screen, select oracle.wsm.security and expand it.

      Figure 5-2 Credential Store Provider


      Description of "Figure 5-2 Credential Store Provider"



      If the oracle.wsm.security map does not exist, create the credential map using the following steps:

      1. Open the Oracle Enterprise Manager 11g Fusion Middleware Control.

      2. From the navigation pane, expand WebLogic Domain.

      3. Right-click the domain name, click Security, then Credentials.

      4. On the Credentials page, click Create Map and name it oracle.wsm.security.

      5. Click OK.

   5. Click Create Key. The Create Key screen is displayed.

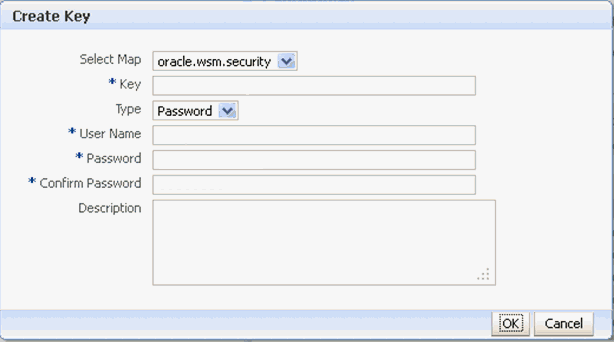

      Figure 5-3 Create Key


      Description of "Figure 5-3 Create Key"



   6. In the Key field, enter a value (for example, alltrials.auth.key) and enter the user name and password for InForm Adapter authentication.

      Note:

      Contact the InForm System administrator to obtain these values.

      Figure 5-4 Entering a Value in the Key Field


      Description of "Figure 5-4 Entering a Value in the Key Field"



   7. Click OK.

      The new key will appear in the list of keys under the oracle.wsm.security group. This key value will be provided either in Configuration Wizard screens or in HS_TRIAL_SAFETY_CONFIG.dvm. The integration pack first checks HS_TRIAL_SAFETY_CONFIG.dvm for authentication parameters for a given trial. If the value is not found, it will read the value in the AIAConfigurationProperties.xml file, which is applicable to all trials on the SOA server. Integration pack obtains credential information from the credential store through the key value. The credentials are then passed to the SOAP header when invoking InForm Adapter in secure mode.

5.3 Verifying Wildcard Hostname

If you are using wildcard certificate for https communication, you must enable verifying wildcard hostnames on the SOA server. To configure, perform the following steps:

1. Navigate to the Admin console.

2. For each server in the cluster:

   1. Click the SSL tab.

   2. Click Advanced.

   3. Find Hostname Verification.

   4. Select Custom Hostname Verifier from the drop-down list.

   5. Find Custom Hostname Verifier and enter weblogic.security.utils.SSLWLSWildcardHostnameVerifier in the corresponding text box.

3. Click Save.

5.4 Creating Backups of Your Customizations

This section discusses the key tasks that you must perform before you install the media pack or when you apply patches to your existing PIPs:

• Backup custom extensible style sheet language transformations (XSLTs): These are the extensions performed on the AIA Transformation style sheet. Oracle AIA does not contain any XSLTs for its components and utilities. As the process content is delivered only in PIPs, you must manually backup the XSLTs if you have developed any for the custom integrations, and reapply them as a post install step.

• Backup custom routing rules in the (EBS): If you have defined any routing rules on any of the EBS available as part of the PIP, on top of the rules provided ready-to-use, you must manually take a back up of the EBS. You must merge the EBS manually as a post installation step.

• Backup the AIAConfigurationProperties.xml file: This file is located in the $AIA_INSTANCE/AIAMetaData/config folder. Merge custom inclusions in the CONFIG file and change properties as required after installation.

Note:

Ensure that you check My Oracle Support for the most current list of patches.
