Oracle Self-Service E-Billing v6.2: Hierarchy and Role Access Control

A user can be assigned to one or multiple nodes in the same hierarchy as long as these nodes are not on the same path to the root node.

Hierarchy Role-Based Access Control. Hierarchy Manager supports the following roles:

Subscriber. Users with the Subscriber role can view assigned hierarchies, including all nodes from the assigned node down. Subscribers can view assigned hierarchies only, and cannot edit or make assignments. Subscribers must be assigned or associated with a node in order to access the hierarchy.
Manager. User with the Manager role can view assigned hierarchies, including all nodes from the assigned node down. Managers can create, view, edit, and delete hierarchies, and assign or un-assign other Managers and Subscribers to and from subtrees. Managers must be assigned or associated with a node in order to access the hierarchy.
System Administrator. Users with the System Administrator role can view hierarchies within their company, including all nodes in the hierarchy. System Administrators can create, view, edit, and delete hierarchies and assign Managers and Subscribers. System Administrators do not need to be assigned or associated with any hierarchy tree node in order to see the hierarchy.
Customer Service Representative (CSR). Customer Service Representatives can view all hierarchies across companies, starting from the root node, and can create and delete hierarchies. By default, the Hierarchy Manager UI does not support the Customer Service Representative role, however, an API allows you custom implementation.

Hierarchy and Role Access Control

Hierarchy Manager supports both access control based on hierarchy and role.

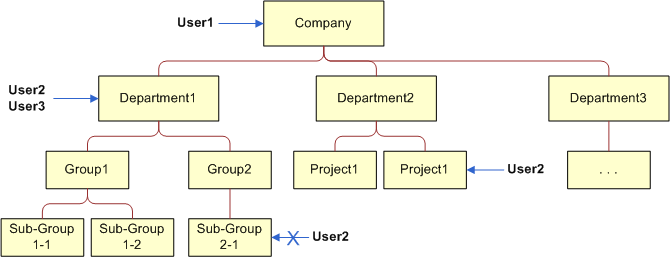

Hierarchy-Based Access Control. A user is assigned or associated with one of the nodes inside Hierarchy Manager. Once a node is assigned, the user has granted access to all the nodes under the assigned node, as shown Figure 1.
