Once the basic Solaris 11.1 system is installed, there are three contexts that entail specific configuration requirements for Solaris Cluster and ACSLS-HA.
Configure access privileges for the root user.
Configure network the interface for multi-path internet access.
Configure multi-path disk I/O.
rootSolaris cluster monitoring and fail over operations are handled by the root user who must have control over the entire cluster from either node. We will establish root as a trusted user, providing private network access between nodes with secure shell (ssh) authentication
Enable direct root access to each node from an external system. Edit the file, /etc/user_attr, and comment out (or remove) the line that specifies a role for root.
# root::::type=role
Allow root to log in to the system from points other than the system console.
Edit the file, /etc/default/login, and comment out the line that specifies console-only access.
# CONSOLE=/dev/console
Permit secure shell login access for root.
Edit the file, /etc/ssh/sshd_config, and specify yes to PermitRootLogin.
PermitRootLogin=yes
Establish root as a Trusted User. This sets a login protocol for root to each node from the sister node for which the authentication is established without the need for a password.
Create a public/private RSA key pair. To allow login from one node to the other without a password, do not enter a passphrase.
# cd /root/.ssh # ssh-keygen -t rsa Enter file in which to save the key (//.ssh/id_rsa): ./id_rsa Enter passphrase (empty for no passphrase): Enter same passphrase again: Your identification has been saved in ./id_rsa. Your public key has been saved in ./id_rsa.pub. The key fingerprint is: 1a:1b:1c:1d:1e:1f:2a:2b:2c:2d:2e:2f:ea:3b:3c:3d root@node1
This creates two files in the /root/.ssh directory: id_rsa and id_rsa.pub.
Copy id_rsa.pub to the /root/.ssh directory on the sister node:
# cat id_rsa.pub | ssh root@node2 \ 'cat >> /root/.ssh/authorized_keys' Password:
With the authentication key in place, test the ability to assert commands remotely without a password.
# hostname node1 # ssh root@node2 hostname node2
Redundancy is the overall scheme for high-availability computing. Redundancy applies not only to the servers, but to each communication interface on each server. For the public interface, this means using multi-path IP (IPMP) on Solaris. IPMP provides instant NIC recovery for failing network communications without the need for a general system fail over. For the library interface, this means using a dual TCP/IP connection with two network interfaces across two independent routes. If any element in one route should fail, ACSLS continues to communicate over the alternate interface.
ACSLS-HA requires redundant network connections for:
Public and client communications
Library communications
Private intra-node cluster communications
Figure 2-1 Single HBCr Library Interface Card Connected to Two Ethernet Ports on each Server Node
The figures in this section show eight Ethernet ports accessible with two separate controllers on each server. We use six ports to provide the three redundant connections. Two ports in this configuration remain unused. Despite the seeming complexity, there are only three dual-path Ethernet connections from each server:
Server-library communication
Server-to-server heartbeat exchange over a private network
Server-to-client communication over a public network

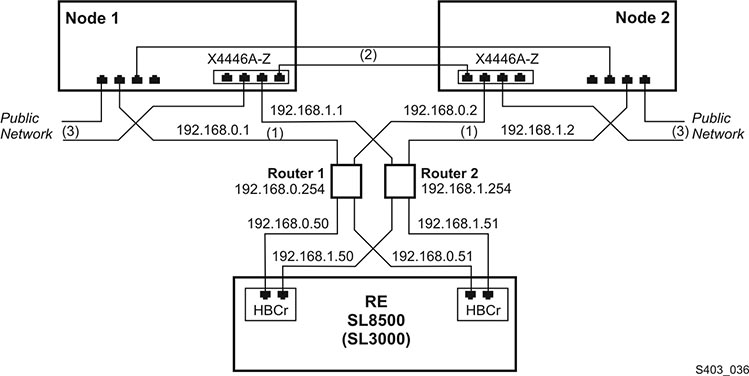

Figure 2-2 Dual-HBC Configuration on a Library with Redundant Electronics
In a library with redundant electronics figure, there are two independent paths from each server node to each HBCr library controller. If communication to both ports on one HBCr interface should fail, ACSLS-HA invokes an automatic switch to the alternate HBCr card. All of this is accomplished without the need to fail over to the alternate server node.
Solaris IPMP (Internet Protocol Multi Pathing) provides a mechanism for building redundant network interfaces to guard against failures with NICs, cables, switches or other networking hardware. When configuring multipath IP on your Solaris host you combine two or more physical network interfaces into a single IPMP group.
To view a mapping of network interface names to physical devices use the command, dladm show-phys:
Example:
# dladm show-phys LINK MEDIA STATE SPEED DUPLEX DEVICE net2 Ethernet up 100 full ixgbe1 net3 Ethernet up 10000 full ixgbe3 net0 Ethernet up 10000 full ixgbe2 net1 Ethernet up 1000 full ixgbe0 net4 Ethernet up 10 full usbecm0 net5 Ethernet unknown 0 unknown clprivnet1
To show the state of configured network interfaces, use ipadm.
Example:
# ipadm NAME CLASS/TYPE STATE UNDER ADDR lo0 loopback ok -- -- lo0/v4 static ok -- 127.0.0.1/8 lo0/v6 static ok -- ::1/128 net1 ip ok -- -- net1/v4 static ok -- 129.99.99.99/24 net1/v6 addrconf ok -- fe99::999:999:ff23:ee02/10 net4 ip ok -- -- net4/v4 static ok -- 129.999.99.99/24
Two interfaces must be configured and assigned to a common group-id for ACSLS-HA. Among these interfaces may be the primary interface of the server. In this case, since the ip address is already assigned to the interface (and not to the group), it will be necessary to unconfigure this interface, then reconfigure it under the ipmp group.
|
Note: Since network communication will be interrupted during this operation, it will be necessary to conduct the following steps from the server console. |
To unconfigure the existing primary interface:
ipadm delete-addr <primary interface>
Example:
# ipadm delete-addr net0/v4
ipadm delete-ip <primary interface>
Example:
# ipadm delete-ip net0
To reconfigure the primary interface:
ipadm create-ip <primary interface>
Example:
# ipadm create-ip net0
To create a second primary interface:
# ipadm create-ip net5
To create the ipmp group:
ipadm create-ipmp <group_name>
Example:
# ipadm create-ipmp ipmp0
|
Note: The group name must be alpha-numeric. |
To assign the host ip-address to the group:
# ipadm create-addr -T static -a <ip-address> <group_name>
To add the primary interface to the group:
# ipadm add-ipmp -i <primary_interface> <group_name>
To add a second interface to the group:
# ipadm add-ipmp -i <second_primary_interface> <group_name>
Verify your ipmp configuration:
# ipadm NAME CLASS/TYPE STATE UNDER ADDR ipmp0 ipmp ok -- -- ipmp0/v4 static ok -- 123.45.67.89/8 lo0 loopback ok -- -- lo0/v4 static ok -- 127.0.0.1/8 lo0/v6 static ok -- ::1/128 net0 ip ok ipmp0 -- net5 ip ok ipmp0 --
Observe that two network interfaces were configured under the ipmp0 group. Observe that a version-4 ip address was assigned to the ipmp0 group.
You may need to reboot the system to commit these changes and to establish network communications under the new configuration
Repeat network configuration on the sister node.
Once your public IPMP group is established, you will add entries in the /etc/hosts file on each node. The hosts file should include entries for the address and hostname for each individual node and the logical IP address for the two-node cluster.
# cat /etc/hosts 127.0.0.1 localhost loghost 123.45.67.89 <this node's FQHN> <this node's hostname> 123.45.67.87 <sister node's hostname> 123.45.67.88 <cluster logical FQHN> <cluster logical hostname>
In this example, FQHN is the fully qualified hostname.
The mapping between the ipmp group and the cluster public IP address is established when you start the cluster with start_acslsha.sh. (See "ACSLS Cluster Operation".)
Two remaining network interfaces are needed for the library configuration. We will use net1 and net6 in the examples here. Notice (in Figure 2-1 and Figure 2-2) that these two connections are routed over separate subnets to eliminate a router as single point of failure between the clustered server and the library.
Create the two network interfaces on each node.
# ipadm create-ip net1 # ipadm create-ip net6
Assign the ipaddress for each interface.
# ipadm create-addr -T static -a <ip-address> net1/v4 # ipadm create-addr -T static -a <ip-address> net6/v4
The address object is typically named using the interface and the protocol version: net1/v4
Verify your ipmp configuration:
# ipadm NAME CLASS/TYPE STATE UNDER ADDR ipmp0 ipmp ok -- -- ipmp0/v4 static ok -- 123.45.67.89/8 lo0 loopback ok -- -- lo0/v4 static ok -- 127.0.0.1/8 lo0/v6 static ok -- ::1/128 net0 ip ok ipmp0 -- net1 ip ok -- -- net1/v4 static ok -- 192.168.0.1/8 net5 ip ok ipmp0 -- net6 ip ok -- -- net6/v4 ip ok -- 192.168.1.1/8
The external shared disk array will connect to the two hosts, each with redundant fibre or SAS connections between the server and the disk array

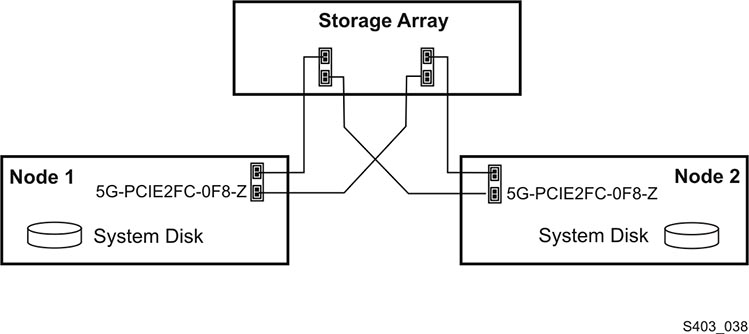

Figure 2-3 Two Fibre Connections Per Server to External Shared Storage Array
The array should be setup to present two virtual drives to the attached host.
Solaris 11 takes care of multi-path (MPXIO) settings automatically if it senses more than one path to a disk device. Verify that your Solaris system is properly configured with redundant connections to each virtual disk in the array.
# mpathadm list lu
/dev/rdsk/c0t600A0B800049EE1A0000840552D3E2F9d0s
Total Path Count: 2
Operational Path Count: 2
/dev/rdsk/c0t600A0B800049EDD600000DAD52D3DA90d0s2
Total Path Count: 2
Operational Path Count: 2
The mpathadm display should reveal two disk devices, each with an operational path count of 2.
If the display reveals an improper configuration for the multi-path setting, you will need to configure MPXIO on your Solaris 11 system. Refer to the document, Oracle Solaris Administration: SAN Configuration and Multipathing from the Oracle Technology Network library: http://docs.oracle.com/cd/E23824_01/html/E23097.
|
