Loading and modifying managed attribute values (MVals)

If you load managed attribute values for a managed attribute that has not already been created and configured in the data domain, the managed attribute is created with system defaults for the DDR, as well as for the PDR if it does not already exist.

Therefore, if the default managed attribute and standard attribute schemas (DDR and PDR configurations) meet your needs, you can load managed attribute values without loading managed attribute and standard attribute schemas (configuring the DDR and PDR). If you need to customize the managed attribute or standard attribute schema (configure the DDR or the PDR), or both, you should load the schemas (PDR and DDR configurations) before loading managed attribute values.

Use the Merge Managed Values component to add managed values to a managed attribute, or to modify existing managed attribute values. An instance of the Merge Managed Values component can only add managed values to, or modify the values of, one managed attribute. Adding values to multiple managed attributes requires multiple instances of the component, either in the same graph or in different graphs.

You can also modify the following properties of managed attributes that have already been loaded:

Other properties (parent, spec, and synonym) cannot be modified once the managed attribute value has been loaded.

Managed attribute value input file

The input schema of the managed attribute input file is predefined. The first row is the header row and must define the following properties:
spec|displayname|parent|synonym|rank
where:
  • spec is a unique string identifier for the managed value. This ID is used to associate child values with parent values.

    This field is required.

  • displayname is the name displayed in the user interface for the managed value.

    This field is optional.

  • parent is the parent ID for this managed value. If the value is a root value (in other words, if the value has no parent, but only children), enter a forward slash (/) for this property. If the value is a child managed value, enter the unique ID of the parent managed value.

    This field is required when load managed attribute values. It is optional when updating managed attribute values, and should be null. If the value of this property is not null when updating managed attribute values, the graph will fail and an error will be returned.

  • synonym optionally defines one or more synonyms for the managed value. When you add a synonym to a managed attribute value, the value will be returned when users search on the synonym. You can add synonyms to both root and child managed values. You can add multiple synonyms to a single managed value. Specify the delimiter for multiple synonyms on the Edit Add Managed Values dialog.

    This field is optional.

  • rank is an integer that specifies the rank order of the value in the set of values for the managed attribute.

    This field is optional.

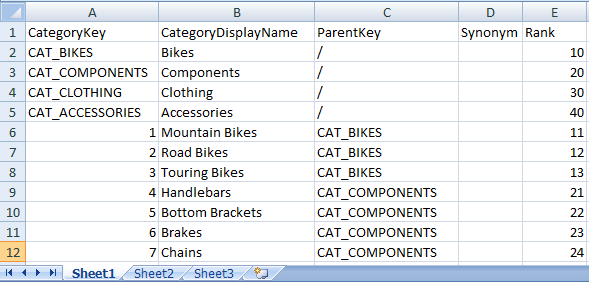

The following graphic illustrates a simple managed attribute input file:

Simple example of a managed attribute input file

This example defines several parent categories, including CAT_BIKES and CAT_COMPONENTS. Each of these categories is ranked.

The following values are defined as children of the CAT_BIKES value (with rankings):

These values are defined as children of the CAT_COMPONENTS value (with rankings):
  • Handlebars (Rank 21)
  • Bottom Brackets (Rank 22)
  • Brakes (Rank 23)
  • Chains (Rank 24)
All values of the same managed attribute share the same ranking structure. You cannot duplicate ranking values. Consider this requirement when defining the rankings for your managed attribute values and develop a ranking practice that ensures all ranks will be unique. For example, you might use a four-digit ranking structure, where the place of the digit indicates the level of the ranking of the managed attribute value within the tree of available values. For example:
  • 0002

    A first-level managed attribute value (is a child of /), such as the CAT_COMPONENTS managed attribute value in the example input file.

  • 0021

    A second-level managed attribute value (parent is a child /), such as the Road Bikes managed attribute value in the example input file.

  • 0211

    A third-level managed attribute value (three levels down from /).

  • 3211

    A fourth-level managed attribute value (four levels down from /).

You could modify this structure to meet your needs, or choose to use a different ranking approach.

The input file is typically stored in the data-in directory of the project.

While the display name, synonym, and rank fields are optional, the fields must be included in the input records. For example:
CAT_CLOTHING||/||

Modifying managed attribute values

You can modify the display name and rank of existing managed attribute values. You cannot modify the spec, parent, or synonym of existing managed attribute values.
  • If you attempt to change the spec of a managed attribute value, a new managed attribute value will be created with the properties you specify.
  • If you attempt to change the parent of a managed attribute value, Endeca Server returns the following error, and the graph fails: Error applying updates: Attempting to change hierarchy of existing managed attribute value "1" with assignment of "CAT_BIKES_FOO" to attribute "mdex-dimension_category_Parent"
  • If you attempt to modify the synonym of a managed attribute value, Endeca Server returns the following error and the graph fails: Error applying updates: Attempting to add synonym to managed attribute value "1" with assignment of "Mtn Bike, Mountain Bicycle" to attribute "mdex-dimension-value_Synonyms"
When modifying managed attribute values, the input file must include values for the spec of the managed attribute values you want to modify and the name or rank, or both, depending on which property you want to modify. While you can omit values for the parent and synonym, as well as the name or rank if you are not modifying them, each record must include these fields. The following code illustrates a simple example:
spec,name,parent,synonym,rank
1,Mountain Bicycles,,,15
If this input was submitted after loading the managed attribute values illustrated elsewhere, the managed attribute named "Mountain Bikes" (spec 1) would be renamed to "Mountain Bicycles", and its rank would be updated to 15. Note that the parent and synonym fields are empty in this input record.

Managed attribute value input graph

A basic managed attribute value input graph consists of two components:

  • A Universal Data Reader

    Specify the location of the input file (typically the data-in directory of the project) in the File URL field.

  • A Merge Managed Values component

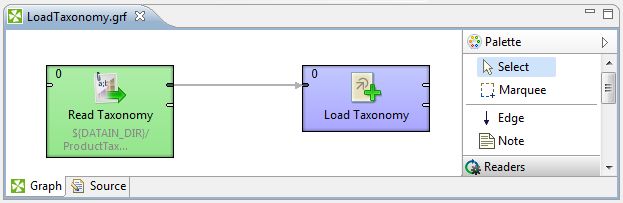

The two components are joined by a basic edge. See Connecting two components with an edge. The following graphic illustrates a typical configuration:

Typical load managed attribute values graph
