Results components

Results components allow users to view lists of records.

Data Explorer

Displays each record in a selected data set as a complete set of attribute-value pairs. The attributes can be displayed:
  • In alphabetical order
  • By data type
  • Within their base view attribute groups

Users can also use the Data Explorer component to display the schema records for the application data.

The Data Explorer component is usually used to verify newly loaded data.

Users can print the list.

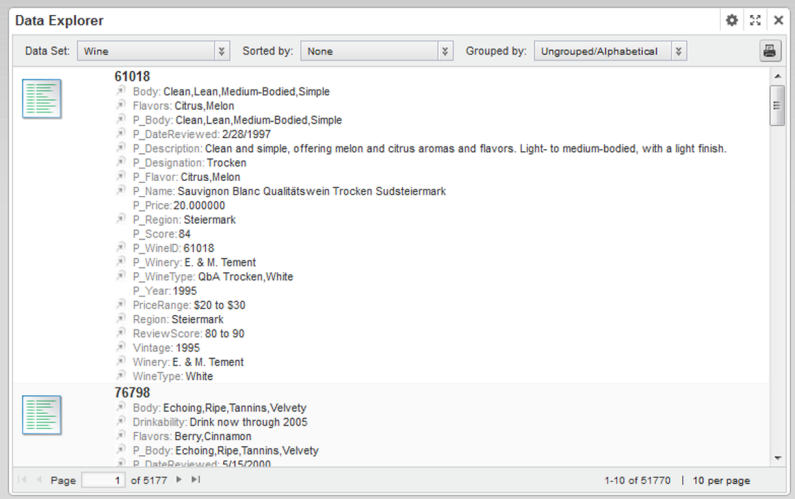

Example of a Data Explorer component
The Data Explorer component configuration includes:
  • The default grouping for the attributes
  • The pagination and sorting options for the list

Results List

Displays the list of records for the current refinement. The list format is similar to regular Web search results. Each record contains a selected set of attributes.

Users can export and print the list. The component can also include options to compare records, display details for a record, and refine the data.

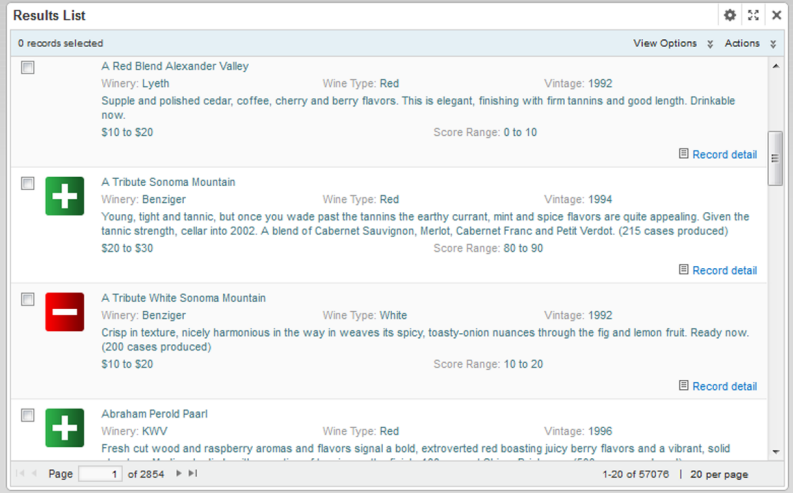

Example of a Results List component
The Results List component configuration includes:
  • The attributes to include for each record, including whether to use the attributes for refinement or to display related content
  • The sorting options for the list
  • The images to display next to each record
  • The display and pagination options for the list

Results Table

Displays a table containing either:
  • A list of records for the current refinement
    Example of a records list type of Results Table
  • A set of metrics aggregated by one or more dimensions

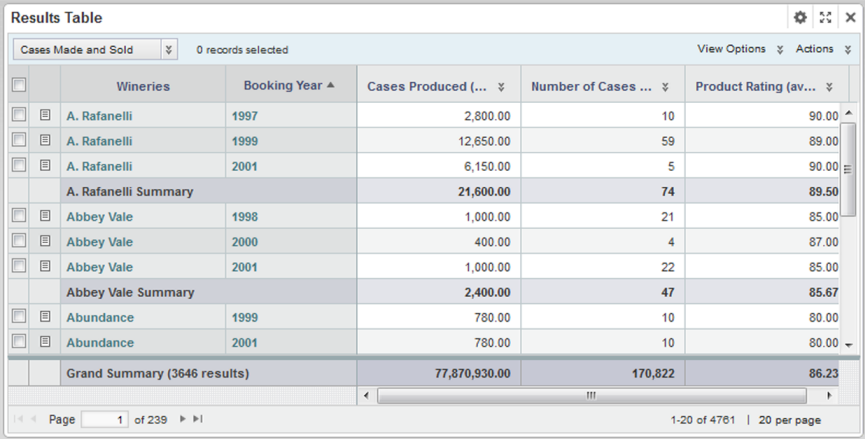

    Example of an aggregated Results Table

Users can export and print the list. They also may be able to use the Compare dialog to compare selected rows.

The table can include links to display the Record Details dialog, refine the data set, or display related content. Selected values also may be highlighted.

The Results Table component configuration includes:
  • The type of table
  • The columns to display in the table
  • Whether to highlight values that fall within selected ranges
  • The available actions for the table
  • The pagination and sorting options for the table
