You can customize the look the of your dashboard component by adding or modifying the header, footer, vertical axis title, horizontal axis title, left and right tics. You can also change the general display by changing the chart color, font, font color, size, or the background color.
To edit the general display options associated with a dashboard component, do the following:
From the top banner of the dashboard, click the Edit Filter and Display Options button.
Click the General Display Options tab.
Click the Expand All button to expand the categories. You can select the Collapse All button to collapse the list. The list is either expanded or collapsed based on the settings selected by your Administrator.
Select a default font and text size.

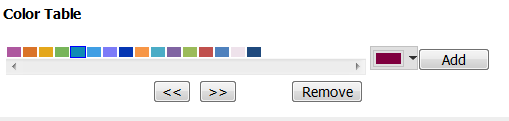

From the color table, select a color from the drop-down menu and click on the Add button. The colors displayed are the colors used to create your dashboard. Click on the right or left arrow buttons to re-arrange the color selection order. Click Remove to remove a color from the color table.
Enter a name to display on the Header, Vertical Axis Title, Horizontal Axis Title, and Footer.
Choose a font, font size, alignment, font color, and background color. You can also choose to disable the Header, Vertical Axis Title, Horizontal Axis Title and Footer by clicking the Disable box.
Make the necessary changes and click the Apply button to set these options for the current run of the component, or click the Save button to save the settings for future use.
