In this tutorial, you learn how to create JSF pages using Oracle ADF Faces Rich Client Components. Oracle ADF Faces Rich Client is a set of standard JSF components that include built-in interactive functionality provided by Ajax and other UI technologies. While Ajax allows rich client-like applications to run on standard internet technologies, JSF provides server-side control, which reduces the dependency on an abundance of JavaScript often found in typical Ajax applications.
show more or less

The page you build in this tutorial displays the content of a shopping cart on one side and lists all the available products on the other side. Another pane displays the product details. You implement drag and drop functionality enabling users to fill their shopping cart by moving a selected product in the shopping cart area. You also create data visualization components, accordions and add a popup window.

runtime image of page

Purpose Duration Application

This tutorial shows you how to develop a page based on a page template. Then you design the layout, add data components and change the look and feel of the page. Click the Download button to download a zip of the starter application that you will use in this tutorial.

The file contains two zip files ( and, one with the starter application, the other the completed solution.

2 to 2.5 hours Download
Step 1: Creating a Page Template

In this section you open the starter application and create a page template to be used for additional pages you will create: To create the page template perform the following steps:

Page templates let you define entire page layouts, including values for certain attributes of the page. Show more or lessRead more...

When pages are created using a template, they inherit the defined layout of a template. When you make layout modifications to the template, all pages that consume the template will automatically reflect the layout changes. You can either create the layout of the template yourself, or you can use one of the many quick layout designs. These predefined layouts automatically insert and configure the correct components required to implement the layout look and behavior you want. For example, you may want one column's width to be locked, while another column stretches to fill available browser space.

To use page templates in an application, you first create a page template definition. In contrast to regular JSF pages where all components on the page must be enclosed within the f:view tag, page template definitions cannot contain an f:view tag and must have pageTemplateDef as the root tag. The page that uses the template must contain the document tag, (by default, JDeveloper adds the document tag to the consuming page).

A page template can have fixed content areas and dynamic content areas. For example, if a Help button should always be located at the top right-hand corner of pages, you could define such a button in the template layout, and when page authors use the template to build their pages, they do not have to add and configure a Help button. Dynamic content areas, on the other hand, are areas of the template where page authors can add content within defined facets of the template or set property values that are specific to the type of pages they are building. The entire description of a page template is defined within the pageTemplateDef tag, which has two sections.

One section is within the xmlContent tag, which contains all the page template component metadata that describes the template's supported content areas (defined by facets), and available properties (defined as attributes). The second section (anything outside of the xmlContent tag) is where all the components that make up the actual page layout of the template are defined. The components in the layout section provide a JSF component subtree that is used to render the contents of the page template.

  1. Start JDeveloper by selecting Start > Programs > <JDEVELOPER_HOME> > OracleHome > Oracle JDeveloper Studio > Oracle JDeveloper Studio

    In the Select Role dialog, select Studio Developer and click OK.

  2. In the Applications window, click Open Application .

    new application in navigator
  3. In the Open Application(s) dialog, locate the folder where you unzipped the application and select ADF_Faces_Tutorial.jws. Click Open.

    open application window

  4. The application is loaded in the Applications window.

  5. In the Applications window, right-click the View Controller project and select New > ADF Page Template from the context menu.

    new context menu

  6. In the Create ADF Page Template dialog, type storetemplate.jsf for the template file name. Click Next.

    create adf template page

    Click Next again to create the template from a Blank Template.

  7. In the Facet Definitions page, click the Add save all button and type center as the facet Name.

    facet definition on template
  8. In the Attributes section, click the Add save all button, then type title as the Name and Default Title as the Default Value.

    attributes on template

    Click Next and then Finish to complete the template creation.

    The storetemplate.jsf template page opens in the design editor.

    simiple template in design view

  9. From the ADF Faces Components window, expand the Layout node and drag a Decorative Box onto the empty page in the Design view.

    decorative box

    Using the Properties window, in the Style and Theme category, set the Theme property to light.

    property inspector style settings

  10. A decorative box provides two facets, represented by dashed lines and the words 'top' and 'center' within the design view. From the Layout category of the Components window, drag and drop a Panel Grid Layout into the top facet.

    panel grid layout on top facet of template

  11. In the Panel Grid Layout dialog box, set the columns to 2 and the rows to 1 and click Next.

    setting columns and rows
  12. Set the grid width for column 1 to 250 pixels (px) and the width for column 2 to 100 pixels (px) and click Finish.

    setting column width properties

  13. In the Applications window, expand the Web Content and images nodes. Drag branding_logo.jpg onto the first cell of the panel grid layout. In the menu select ADF Faces Image.

  14. adding an image to the page

  15. From the Text and Selection section of the Components window, drop an Output Text component onto the second grid cell of the panel grid layout.

    output text added to the template

  16. This is a case where it can be difficult to tell exactly where in a layout a component is placed. To verify placement of the output text component, expand the Structure window and locate the af:outputText component.

    If necessary, drag and drop within the Structure window to ensure the af:outputText component is placed within the second af:gridCell component

    structure window to organize elements

  17. Select the outputText component in the visual editor or in the Structure window. In the Properties window, locate the Value property. Click the Property Menu icon and choose Expression Builder...

    invoking expression builder

  18. In the Expression Builder dialog, expand Scoped Variables and attrs and select title to set the expression to #{attrs.title}.
    Then click OK.

    expression builder setting the value to #{attrs.title}

  19. In the Components window, expand the Layout node and scroll down to the Core Structure section. Drag and drop a Facet Definition onto the center facet.

    adding a facet to the template

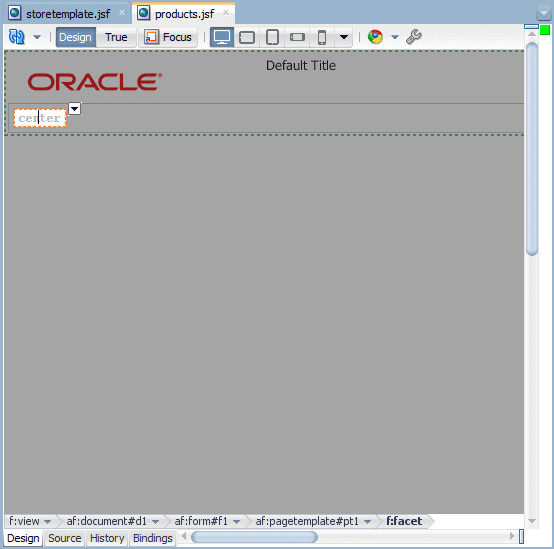

    In the Insert Facet Definition dialog, select center as the facet name, then click OK.

    naming the facet 'center'
  20. Click the Save All Save All icon in the JDeveloper menu bar, or select File - Save All from the menu to save the page.

Step 2: Designing a Page using a Page Template

Now that the template has been created you can create a new page and use the template as the default structure for the page. To do this, perform the following steps:

You can use page templates to build JSF pages or page fragments. Show more or lessRead more...

If you modify the layout section of a page template later, all pages or page fragments that use the template are automatically updated with the layout changes.

Typically, you create JSF pages in the same project where page template definitions are created and stored. If the page templates are not in the same project as where you are going to create template-based pages, first deploy the page templates project to an ADF Library JAR. In the page that consumes the template, you can add content before and after the pageTemplate tag, but you will typically add elements within the defined facets of the template. As a best practice, you should use only one pageTemplate tag in a page.

JDeveloper simplifies the creation of JSF pages based on page templates by providing a template selection option in the Create JSF Page or Create JSF Page Fragment wizard.
  1. Right-click the ViewController project and select New > Page...

    invoking the New gallery from application navigator
  2. In the Create JSF Page dialog, change the file name to products.jsf and ensure the Document Type is set to Facelets. Select the Reference ADF Page Template radio button and choose the Storetemplate template. Click OK.

  3. specifying the definition of the page, including using a template

  4. The products.jsf appears as a new node in the Applications window and opens in the Editor using the storetemplate.jsf template.

  5. page diaplyed in design view

    If the page doesn't render visually in the design editor and instead looks like a series of nested boxes, close the workspace and reopen it.

  6. From the Components window, expand the Layout category, and drag and drop a Panel Splitter component onto the center facet.

    adding panelsplitter to center facet

    In addition to the Panel Splitter, ADF Faces provides a number of other layout components that can be used to arrange other components on a page. Show more or lessRead more...

    Usually, you begin building your page with layout components. You then add components that provide other functionality (for example rendering data as tables or forms) either inside facets or as child components to these layout components. In addition to layout components that simply act as containers, ADF Faces also provides interactive layout components that can display or hide their content, or that provide sections, lists, or empty space. Layout components also provide geometry management functionality, such as stretching their contents to fit the browser windows as the window is resized, or the capability to be stretched when placed inside a component that stretches. Some layout type and components are listed below.

    Page Layout Containers
    - panelStretchLayout: Contains top, bottom, start, center, and end facets where you can place other components.
    - panelSplitter: Divides a region into two parts (first facet and second facet) with a repositionable divider between the two. You can place other components within the facets.
    - panelDashboard: Provides a columnar display of child components (usually panelBox components).
    - panelGridLayout: Uses one or more child gridRow components to define height and margins in a grid layout structure. Each gridRow component uses child gridCell components to define width, column span, margins, and more for the columns of a grid layout.
    - panelFormLayout: Positions input form controls, such as inputText components, so that their labels and fields line up vertically. It supports multiple columns and contains a footer facet.

    Components with Show/Hide Capabilities
    - showDetailHeader: Can hide or display contents below the header. Often used as a child to the panelHeader component.
    - showDetailItem: Used to hold the content for the different panes of the panelAccordion or different tabs of the panelTabbed component.
    - panelBox: Titled box that can contain child components. Has a toolbar facet.
    - panelAccordion: Used in conjunction with showDetailItem components to display as a panel that can be expanded or collapsed.
    - panelTabbed: Used in conjunction with showDetailItem components to display as a set of tabbed panels.
  7. Drag and drop a Panel Accordion layout component onto the first facet on the left hand side of the panel splitter.

    inserting a panel accordion in first facet

    A Panel Accordion component is added to the facet, and a nested Show Detail Item is also created, to hold content for the first pane of the accordion.

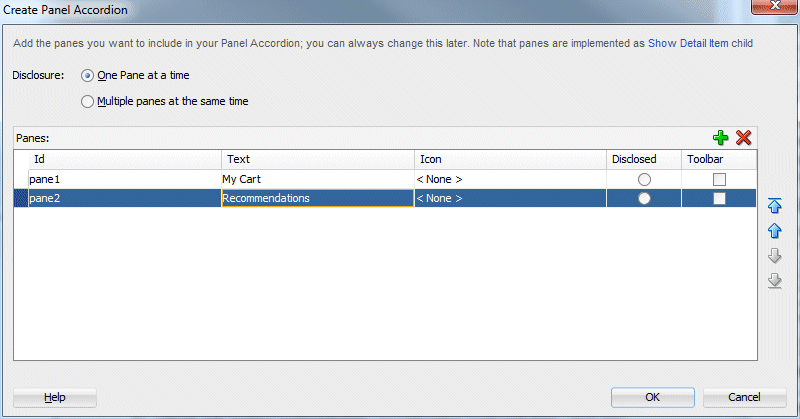

  8. In the create panel Accordion dialog, set the text value to MyCart.

    inserting a panel accordion in first facet

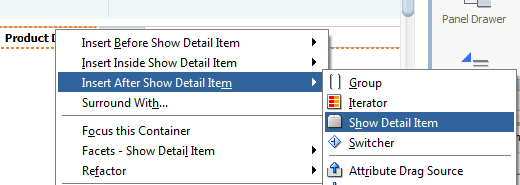

  9. Click the green plus sign to add a second pane to the accordion. Set the Text property to Recommendations.

    inserting a showDetailItem from a showDetailItem

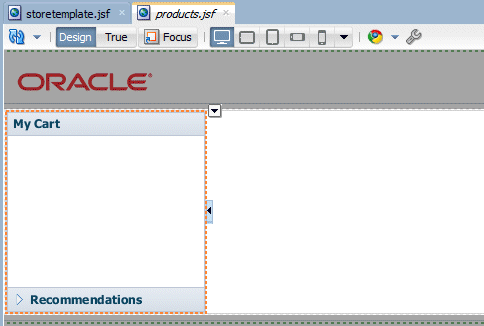

  10. The Editor should look like the image below.

    changing showDetailItem label to recommendations

  11. Drag and drop another Panel Splitter component onto the second facet of the panel splitter. You may want to use the Structure window or the Design editor for this action.

  12. adding another panel splitter

  13. Using the Properties window, set the Orientation of this nested panel splitter to vertical.

    setting the orientation to vertical

  14. Drag and drop a Panel Collection component onto the first facet of the nested vertical panel splitter. If you have trouble locating a component in the ADF Faces Components window, you can search for it using the search box at the top of the window.

    adding a panel collection to the first facet

  15. Drag and drop a Panel Tabbed component onto the second facet of the panel splitter. The component can be found in the Interactive Containers and Headers grouping of the Layout category.

  16. In the Create Panel Tabbed dialog, set the Text property to Product Details and click OK to accept the default Tab Position.

  17. Right click the Product Details tab in the visual editor and select Insert After Show Detail Item > Show Detail Item from the context menu.

    setting the text property to Rating
  18. With the new af:showDetailItem component selected, enter Rating in the Text property in the Properties window.

    setting the text property to Rating

  19. Double click the products.jsf tab to maximize the design view. The page should look like the following image:

    design view of the page

  20. Save all your work. Then right-click anywhere in the design view of the page and from the context menu, select Run. You can double click the products.jsf tab again to toggle the maximized view.

    running the page from the design view

  21. ***********************The page will load in your browser after it is deployed to the integrated WebLogic Server. (Integrated WebLogic Server will be installed and configured if this is the first time you are running an application from JDeveloper). Experiment with selecting the tabs and expanding the Recommendations panel. Once you're finished, keep the browser open and return to JDeveloper.

    page loaded in browser

  22. In the next steps, you customize the page title and see how it is consumed in the existing page. To start the process, open the storetemplate.jsf template page in the design editor..

    viewing the simple page in jdeveloper

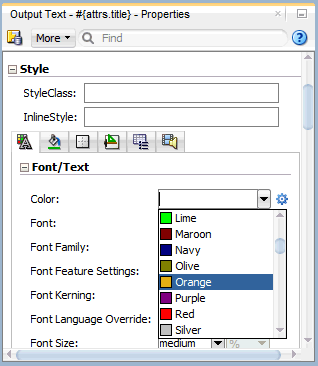

  23. In the design view or structure window, select the outputText component that contains the title. In the Properties window, in the Style node, set the Font Color property to a color of your choice (Orange in our example).

    setting the title to aqua color

  24. In the Font Size property, select large from the drop-down list.

    setting the size to large for the title component
  25. Save all your work. Then go back to the browser and reload the page to see the new characteristics.

    Note that after saving your JDeveloper application, refreshing your browser window reflects the new changes made to your application as long as you haven't updated any binding components. In that case you will need to re-run the page from JDeveloper in order to have the changes reflected in your browser.

    reloading the page in the browser to see new characteristics of title

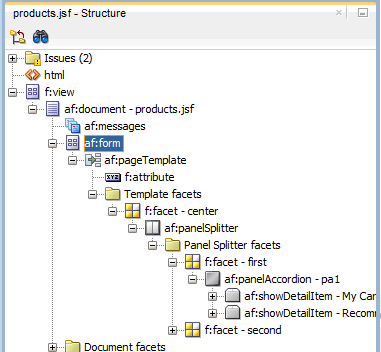

  26. Open the products.jsf page in the design editor. In the Structure window, select the af:pageTemplate tag and in the Properties window, set the Title property to Store Front.

    updating the title template attribute

  27. Save all your work. Then reload the page in your browser to see the new characteristics.

    reloading the page to see the changes

Step 3: Using Input and Output Components

The page layout is complete, now it's time to add some data. The first step in this process it to create data controls from the Products POJO (Plain Old Java Object). To do this, perform the following steps:

Once you have your application's services in place, you can use JDeveloper to create data controls that provide the information needed to declaratively bind UI components to those services. Show more or lessRead more...

In a Java EE application, you normally create JPA entities that represent tables in a database and then create a session facade over all the entities. The facade provides a unified interface to the underlying entities. Using Oracle ADF model, you can create a data control for a session bean, and that data control will contain representation of all the JPA entities under the session bean. ADF Data Controls consist of one or more XML metadata files that define the capabilities of the services that the bindings can work with at runtime. The data controls work in conjunction with the underlying service implementations without changing the implementation of the service. You can also create Data Controls from simple POJOs. For applications built using ADF Business Components as the service implementation, the data control is implicitly defined by the Application Module data model. This tutorial uses a data control based on a simple POJO to prevent the need for a database connection.

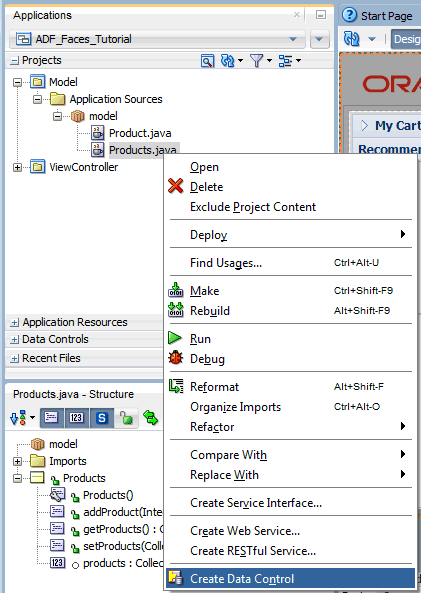

  1. From an existing POJO Class, create the data control using the ADF Data Binding facility.
    In the Applications window, expand the Model project. Expand the Application Sources and model nodes. Right-click and select Create Data Control from the context menu.

    creating data control from pojo

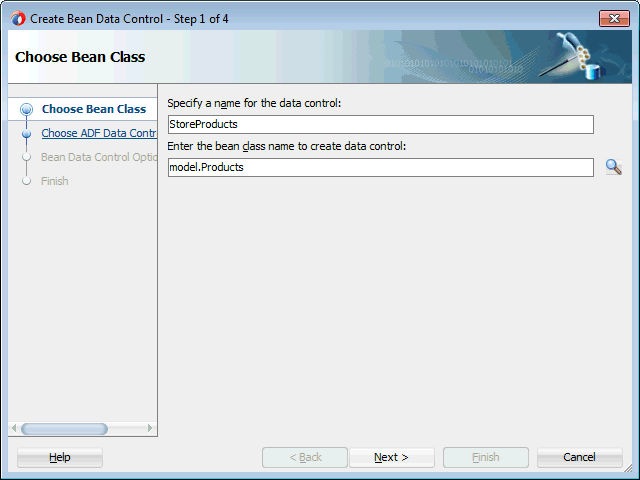

  2. In the first page of the Bean Data Control dialog, change the name of the data control to StoreProducts and click Next.

    defining data control name

  3. In the Choose ADF Data Control Features page, select the Transactions and Custom CRUD features and click Finish.

    specifying ADF data control features

  4. The DataControls.dcx file is created and will open in the editor. You could define UI hints and validation at this layer, but you will accept the defaults here and continue on creating the user interface.

    datacontrols.dcx filer

  5. Click the products.jsf tab to bring it to the foreground of the editor.

  6. In the Applications window, expand the Data Controls  accordion and expand the StoreProducts node. You may need to click the refresh icon in the Data Controls panel to enable the StoreProducts node.

    viewing the data controls

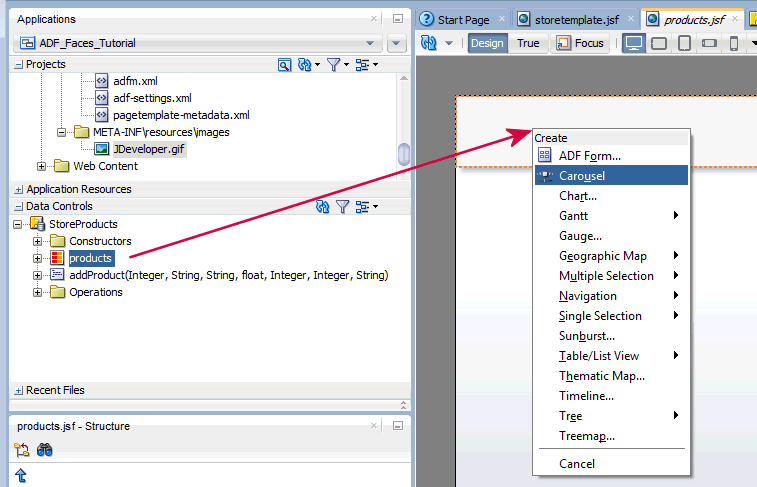

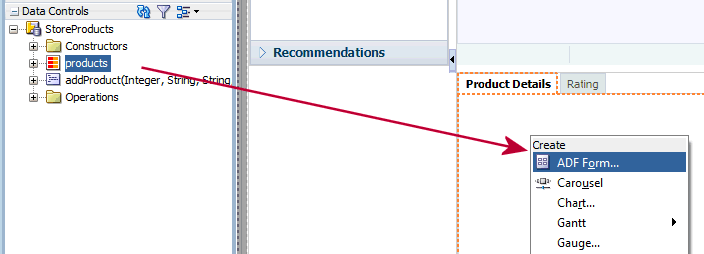

  7. Drag and drop the products collection of the StoreProducts data control onto the center area of the af:panelCollection in the design editor. From the popup menu, select ADF Table...

  8. Structured data can be displayed as tables consisting of rows and columns using the ADF Faces table component. Show more or lessRead more...

    The table component uses a CollectionModel class to access the data in the underlying collection. This class extends the JSF DataModel class and adds on support for row keys and sorting. In the DataModel class, rows are identified entirely by index. This can cause problems when the underlying data changes from one request to the next, for example a user request to delete one row may delete a different row when another user adds a row.

    To work around this, the CollectionModel class is based on row keys instead of indexes. The immediate children of a table component must be column components. Each visible column component is displayed as a separate column in the table. Column components contain components used to display content, images, or provide further functionality.

    The child components of each column display the data for each row in that column. The column does not create child components per row; instead, the table uses stamping to render each row. Each child is stamped once per row, repeatedly for all the rows. As each row is stamped, the data for the current row is copied into a property that can be addressed using an EL expression. You specify the name to use for this property using the var property on the table. Once the table has completed rendering, this property is removed or reverted back to its previous value.

    adding a read only table to the page

  9. In the Create Table dialog, select the Row Selection (Single Row) option and click the Enable Sorting and Read-Only Table options.
    Then click OK.

    edit table columns dialog window

  10. In the Structure window, select the af:table component and in the Properties window, expand the Behavior node. Set the EdtingMode property to clickToEdit. In the Appearance node, set the ColumnStretching property to last.

    To quickly locate a property by name, type the property name in the search field at the top of the Properties window.

    changing the editing mode to click to edit

  11. Save your work.

  12. In the design view of the products.jsf page, select the Product Details tab to bring it to focus. Drag and drop the products collection from the StoreProducts data control onto the Product Details tab component. In the popup menu, select ADF Form...

    adding an adf form to the product details tab

  13. In the Create Form dialog, select the Submit checkbox to include a control for a submit action.

    edit form fields dialog

    Click OK.

  14. Now add an ADF List View component. The ListView component uses to access the data in the underlying list. You may also use other model instances, e.g., java.util.List, array, and javax.faces.model.DataModel and the listView will automatically convert the instance into a CollectionModel.

    Expand the Recommendations accordion pane in the design view. Drag and drop the products node from the data controls window to the recommendations accordion in the design view. In the popup menu, select Table/List View > ADF List View...

    creating products list view

  15. In the Create List View dialog, select the Panel Grid Layout layout and click Next.

    specifying panelgridlayout for list view

  16. Set the Columns to 2 cells per row and number of Rows to 1.

    setting grid layout rows

    Click Next.

  17. Set the Column 1 width to auto and the Column 2 width to 50 px (pixels).

    setting grid layout column width

    Click Next.

  18. Click the value binding for the first column and select the name item. Set the second column value binding to rating.

    setting list item data

    Click Finish.

  19. Save your work.

  20. Data from the products data control is being displayed on this page in three different binding styles. To ensure that all rows are available so that all three bindings are kept in sync, modify the products iterator range size. Select the Bindings tab for the products.jsf page. In the Executables section, select productsIterator.

    setting list item data

  21. In the Properties window, set the RangeSize property to -1.

    setting list item data

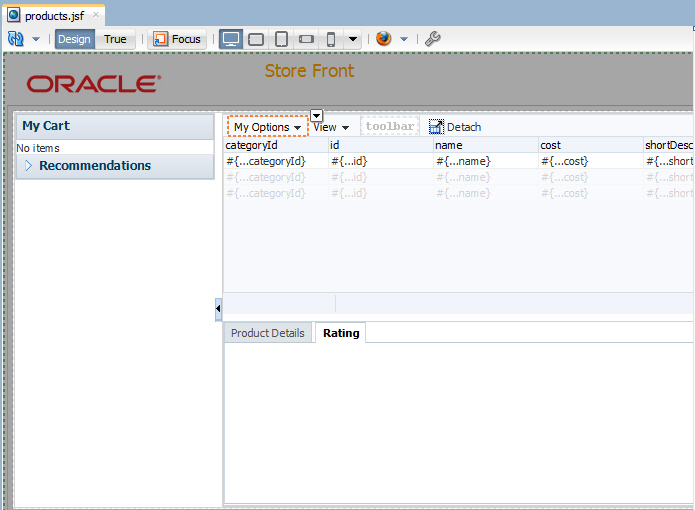

  22. Save all your work and right-click the page and choose Run to re-deploy and re-run the page.
    The page should display the product data in the Recommendations accordion, table, and form as shown:

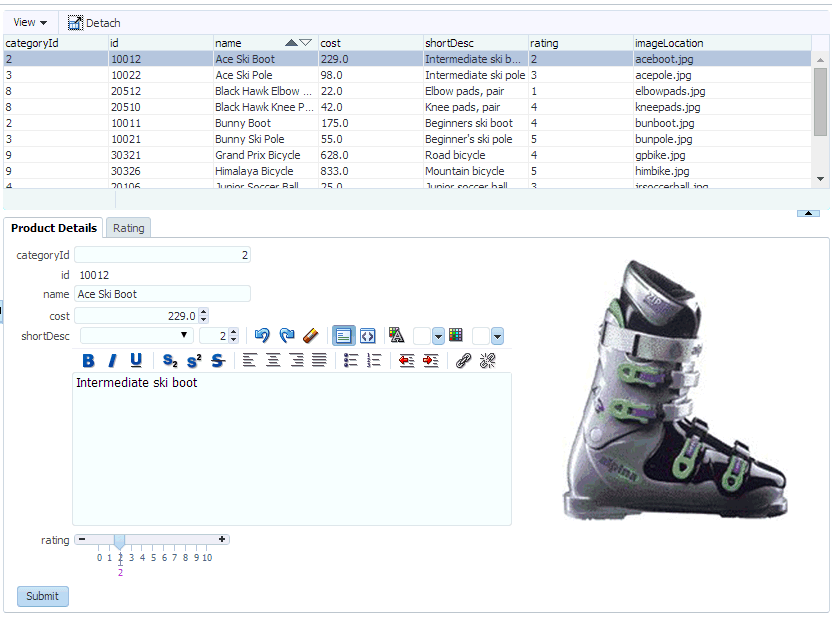

    page in browser

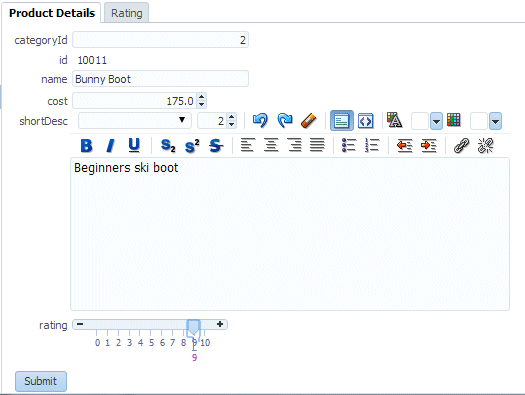

  23. Select one of the column headers in the table and move it to another location in the table.

    moving a coulumn on the page

  24. Experiment with column resizing in the table using the shortdesc column. Click the Detach menu option to isolate the content of the panel in the browser.

    detaching the table

    Click the Detach option again to return to the original display.

  25. Explore the View menu option and hide some of the columns.

    hide some columns

    The columns will remain hidden until you redisplay them. The number of hidden columns is displayed in a message below the table. Column reordering and resizing are features of the ADF Faces table component, while the View menu and it's capabilities and the Detach button are part of the Panel Collection component.

  26. In the next few steps you add some images and graphical items to the page.
    In the Product Details tab, right-click the cost inputText item in the form and select Convert To... from the context menu.

  27. There are a variety of ways to make analyzing data easier for end users by using graphical components. Show more or lessRead more...

    The slider components present the user with a slider with one or two markers whose position on the slider corresponds to a value. The slider values are displayed and include a minus icon at one end and a plus icon at the other. The user selects the marker and moves it along the slider to select a value. The inputNumberSlider component has one marker and allows the user to select one value from the slider.

    To display an image on a page, you use the image component and set the source attribute to the URI where the file is located. The image component also supports accessibility by providing a way to link to a description of the image. The image component can also be used as a link and can include an image map, if placed inside a goLink component.

    The richTextEditor component provides rich text input that can span many lines and can be formatted using different fonts, sizes, justification, and other editing features that may be required when you want users to enter more than simple text. For example, the richTextEditor might be used in a web-based discussion forum, allowing users to format the text that they intend to publish.

    cost column with the Convert to menu option selected

  28. In the Convert Dialog, select Input Number Spinbox and click OK.

    Input Number Spinbox selected

    Click OK again in the Confirm Convert box to remove the unnecessary attribute.

  29. Notice that the imageLocation attribute is rendered as an inputText component. To display an image, change the component style. In the Product Details tab, right-click the imageLocation item and select Convert To... from the context menu. In the Convert Dialog, select Image and click OK.

  30. image selected in the convert to dialog

    Click OK again in the Confirm Convert box to remove the unnecessary element and attributes.

  31. With the new image component selected, go to the Properties window and next to the source property, click the property menu icon and select Expression Builder... from the drop-down list.

    expression builder menu option

  32. In the Expression Builder dialog, type images/products/ in the Expression text area. To create the rest of the expression, expand ADF Bindings, bindings, and imageLocation. Select inputValue to generate the expression and click OK.

    #{bindings.imageLocation.inputValue} selected in expression builder

  33. In the Product Details tab, right-click the rating component and select Convert To... from the context menu. In the Convert Dialog, select Slider (Number) and click OK.

    slider selected in convert input text dialog

    Click OK again in the Confirm Convert box.

  34. In the Product Details tab, right-click the shortDesc component and select Convert To... from the context menu. In the Convert Dialog, select Rich Text Editor and click OK.

    rich text editor selected in convert dialog

    Click OK again in the Confirm Convert box.

  35. In the Structure window, select the panelFormLayout for the Product Details tab. In the Properties window, enter 6 for the Rows property so that the 7th row item (imageLocation) will wrap to the 2nd column of the panelFormLayout. The Products Details tab should now look like this:

    page in design view

  36. Save all your work. Switch back to the browser and reload the page.

    reloaded page in browser containing new widgets

  37. Experiment moving the rating slider, the cost spinbox, and using the rich text editor. Notice that selecting any of the rows in the product table automatically changes the row currency in the Product Details tab. This is handled by the ADF Data Binding layer.

Step 4: Working with Behavior Components

Behavior components are those that provide operational functionality to an application. In this section you will create menus, popup and printable pages and allow users to drag and drop products into a shopping cart area. To implement this type of functionality, perform the following steps:

The ADF Faces framework provides the ability to drag and drop items from one place to another on a page at runtime. Show more or lessRead more...

In most cases, drag and drop at runtime can easily be implemented by adding the appropriate tags to the source and target and implementing code in a managed bean. Drag and drop provides users with an interactive experience that is expected in rich web applications. For example, in a file explorer application, users would expect to be able to drag files from one directory folder to another.

If drag and drop behavior is implemented in an ADF Faces Rich Client application, when users click on an item and begin to drag, the browser displays the element being dragged as a ghost element attached to the mouse pointer. Once the ghost element hovers over a valid target, the target component shows some feedback (for example, it becomes highlighted). If the user drags the ghost element over an invalid target, the cursor changes to indicate that the target is not valid.

When dragging attribute values, the user can only copy the value to the target. For all other drag and drop scenarios, on the drop, the element can be copied (copy and paste), moved (cut and paste), or linked.
  1. To implement menus in your application, add a menu to the panel collection for the table. In the design editor of the products.jsf page, right-click within the menu facet in the panel collection and select Insert inside Facets menus - Menu from the context menu.

    menu selected and context menu displayed showing insert a menu inside the facet
  2. In the Properties window, set the Text property for the menu to My Options.

  3. In the Behavior category, set the Detachable property to true.

    property inspector showing modified menu properties
  4. Right click the My Options Menu and select Insert inside Menu > Menu Item  from the context menu.

    conext menu showing an insert into My Options menu a manu item

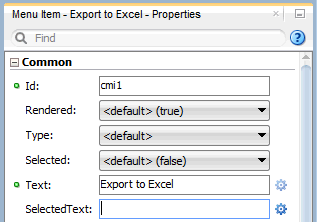

  5. In the Properties window set the Text property to Export to Excel.

    property inspector with text property set to Export to Excell
  6. In the Structure window, right click the af:commandMenuItem component and select Insert after Menu Item > Menu Item from the context menu.

    inserting another menu item

  7. In the Properties window set the Text property for this menu item to Show Specials.

    Show Specials menu item in property inspector

  8. In the Components window, expand the Operations node and find the Listeners category. Drag Export Collection Action Listener component onto the Export to Excel menu item in the Structure window.

    adding a listener onto the menu item

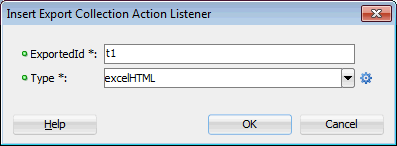

  9. In the Insert Export Collection dialog, type t1 (t1 is the id of the table) as the ExportedId and select excelHTML for the Type.

    Export Collection dialog pane with excelHTML in the type property

    Click OK.

  10. Save all your work, return to the browser and reload the page. Click the My Options menu option and notice that you can detach the menu options from the menu bar.

    detaching my options menu

  11. Select the Export to Excel menu option.

    detached menu option and export to excel item highlighted

  12. Depending on your browser, a dialog may prompt you for an action to perform with the file, allowing you to open it with Excel or save it.

    Opening file name pane with open or save as options

    Select Open with to view the table in Excel (assuming you have Excel installed) and click OK.

    Verify the table is exported and close Excel if you wish.

  13. Now create a popup window in the products.jsf page. In the Structure window, select the topmost af:form component.

    highest-level form component selected in structure/

  14. In the Components window, expand the Layout category and locate the Secondary Windows section. Drag the Popup  component onto the form component in the Structure window. The design view will change to allow visual editing of the popup.

  15. You can use the popup component with a number of other ADF Faces components to create a variety of dialogs, menus, and windows that provide information or request input from end users. Show more or lessRead more...

    Using these components, you can configure functionality to allow your end users to show and hide information in secondary windows, input additional data, or invoke other functionality. The capabilities offered by these components allow you to render content or functionality that is supplemental to the content rendered on the primary interface and, as a result, develop uncluttered and user friendly interfaces.

    The popup component is an invisible layout control, used in conjunction with other components to display inline (that is, belonging to the same page) dialogs, windows, and menus. The popup component is invoked from within the primary interface and the application manages the content that renders in the popup component like content in the primary interface without interference from popup blockers. It is recommended that the content type you render in a popup component be HTML. Other types of content, such as Flash or PDF files, may not render appropriately in a popup component.
    popup component selected and dropped on af:form in structure pane

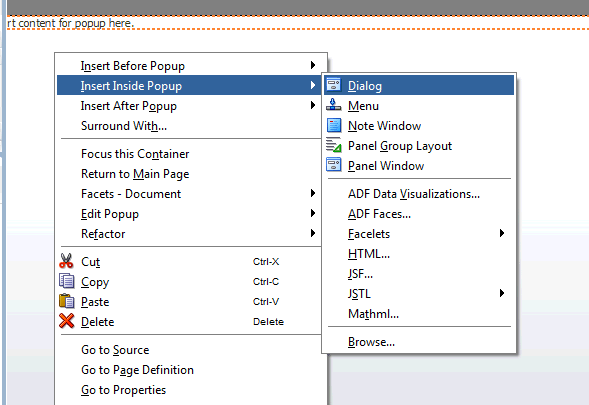

  16. In the Design view, right click inside the popup and select Insert inside Popup > Dialog from the context menu.

    context menu on popup to insert a dialog inside the popup

  17. In the Components window, expand the General Controls category and drag the Image component onto the Dialog.

    image component dropped in dialog pane, displayed in design view

  18. In the Insert Image dialog, click the Property menu icon next to the source property and select Edit. Expand the images directory and select the JDeveloper.jpg image as the source.

    insert image pane showing the source file name

    Click OK. Click Yes to relocate the gif image in the resources directory for the application, and then click Save to save it in the default location.
    Click OK again.

  19. Click in the gray area outside the dialog to return to the main page design view. In the Design view, select the My Options menu item to bring the component to focus in the Structure window.

  20. In the Components window, expand the Operations category and in the Behavior section, drag the Show Popup Behavior component onto the commandMenuItem - Show Specials component in the Structure window.

    In the Insert Show Popup Behavior pane, set the PopupId to :::p1.

    Show Specials menu option with a Show Popup Behavior being dropped on the menu item

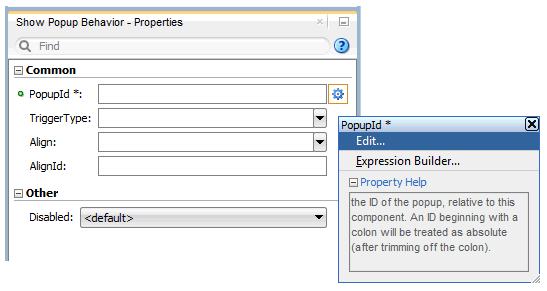

  21. In the Properties window, click the Property Menu icon next to the PopupId property and select Edit.

    edit in the pane selected for the popupId

  22. In the Edit Property Dialog, expand the document and form nodes. Select the popup - p1 component, and click OK.

    popup - p1 selected in pane

  23. Right click the file and choose Run to re-run the page.
    Click the My Options menu and select Show Specials.

    page reloaded in browser and Show Specials is highlighted in menu

    The popup dialog appears and contains the JDeveloper image.

    jdeveloper image displayed in popup

  24. Now provide drag and drop functionality between the Product Details tab and the My Cart accordion, allowing users to effectively fill the cart from the Product Details using a simple drag and drop operation.
    In the Components window, locate the Output Text component from the ADF Faces library. Drag it onto the My Cart accordion pane.

    drag an ourput text component onto My Cart

    In the Properties window, set the Value property to No Items.

    property inspector showing Value set to No Items
  25. Select the name output text component in the products table to bring it to focus in the design view. In the Components window, expand the Operations category and locate the Drag and Drop section. Select the Attribute Drag Source component and drop it onto the name output text component. Ensure that you drop the Attribute Drag Source onto the name output text, and not on the column. If you're unsure, use the Structure window.

    Attribute Drag operation being dropped onto the name item

  26. In the Insert Attribute Drag Source dialog, select value from the drop-down list.

    Attribute property set to value

    Click OK.

  27. From the Components window drag and drop an Attribute Drop Target component onto the No Items output text component.

    Attribute Drop Target being dropped on the No Items component

    In the Insert Attribute Drop Target dialog, select value for the Attribute property.

    Attribute property set to value

    Click OK.

  28. Save all your work and reload the page in the browser. In the products table, select a name value and drag and drop it onto the No Items text in My Cart.

    drag and drop name on the No Items component on the My Cart pane

    The product name is added to the cart.

    browser showing page with Ace Ski Pole in  My Cart

  29. Now add a menu option to take the current table information and display it as a printable page. In JDeveloper, add another Menu Item to the My Options menu and set the Text property to Printable Page.

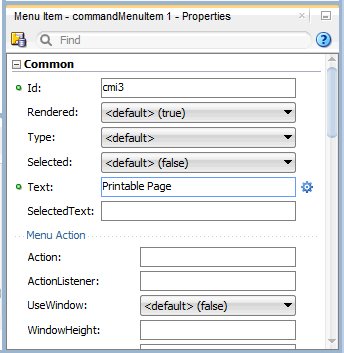

    Prinable page menu item added to the My Options menu

  30. By now you should be familiar with locating components in the Components window and dragging them to the design or Structure window in order to add the component to the correct place in the page. Additionally, you should now understand that in many cases, it's best to have in focus the location where you want to add the component, by selecting a component in the design or Structure window.

    Drop a Show Printable Page Behavior component onto the menu component that you just created.

    Shiow Printable Page Behavior operation being dropped on the Printable Page

  31. In the next couple of steps, add a popup page to show products using a carousel.

    You can display images in a revolving carousel. Show more or lessRead more...

    Users can view a series of images, one for each record. They can change the image at the front either by using the slider at the bottom or by clicking one of the auxiliary images to bring that specific image to the front.

    By default, the carousel displays horizontally. The objects within the horizontal orientation of the carousel are vertically-aligned to the middle and the carousel itself is horizontally-aligned to the center of its container.

    You can configure the carousel so that it can be displayed vertically, as you might want for a reference "rolodex". By default, the objects within the vertical orientation of the carousel are horizontally-aligned to the center and the carousel itself is vertically aligned middle. You can change the alignment using the carousel's alignment attributes.

    Drag a popup component from the Components window onto the first af:form component in the Structure window.

    adding popup to form

  32. Right click the new af:popup and select Insert Inside Popup > Dialog.

    dialog added inside of the af:popup

  33. In the Properties window, set the Type property to ok.

    Setting the Type property to ok

  34. In the Data Controls window, expand StoreProducts and drop the products collection onto the dialog in the design view. Select Carousel from the menu.

    data control dropped on the dialog as a Carousel

  35. Drag an Image component to within the carousel item component.

    an image component dropped onto the carousel

    In the Insert Image dialog, enter /images/products/#{item.imageLocation} as the value for the Source property.

    the insert image dialog with the source property set to #{item.imageLocation}

    Click OK.

  36. Click in the gray area outside the popup to return to the main design view of products.jsf.
    In the Structure window, locate the viewMenu facet for the panelCollection (the panelCollection is the parent component for the products table component).
    Right click the viewMenu facet and choose Insert inside f:facet - viewMenu > Menu Item.

    inserting a menuItem in the viewMenu facet

  37. In the Properties window, set the Text property to View As Carousel.

    setting text to view as carousel

  38. Drop a Show Popup Behavior component onto the View As Carousel menu item.

    In the Insert Show Popup Behavior pane, set the PopupId to :::p2 (a reference to the second popup window).

    adding a Show Popup Behavior component onto the view carousel menu item

  39. In the Properties window, select Edit from the PopupId property menu.

    edit selected for PopupId property in property inspector

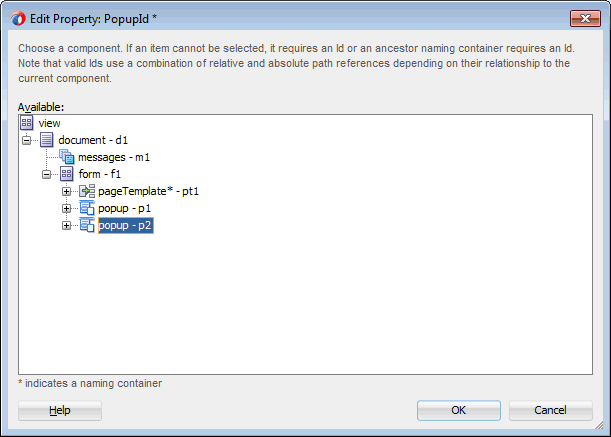

  40. In the Edit Property dialog, expand the document and form nodes and ensure the popup - p2 component is selected.

    popup - p2 button selectd in Edit Property window

    Click OK.

  41. Save all your work and re-run the page. When it is displayed in the browser, click the My Options - Printable Page menu. The table component of the page is displayed in a separate tab in the browser and ready to be sent to a printer.

    page running in browser with My Options - Printable Page menu item selected

  42. Close the printable view and select View As Carousel from the View menu.
    the popup button being selected in the page

  43. Use the carousel to see how it works, when you are done, click OK to close the popup.

Step 5: Working with ADF Data Visualization Components

Now add a gauge to display the rating of any particular product. To create this gauge, perform the following steps:

The ADF data visualization components provide significant graphical and tabular capabilities for displaying and analyzing data. Show more or lessRead more...

These data visualization components provide the following common features:
- They are full ADF Faces components that support the use of ADF data controls.
- They provide for declarative design time creation using the Data Controls Panel, the JSF visual editor, Properties window, and Components window.
Each component offers live data preview during design. This feature is especially useful to let you see the effect of your design as it progresses without having to compile and run a page. Data visualization components include: graphs, gauges, pivot tables, maps, Gantt charts, hierarchy viewer, sunburst, and treemap. The prefix dvt: is used to denote the data visualization components.

The gauge component renders graphical representations of data. Unlike the graph, a gauge focuses on a single data point and examines that point relative to minimum, maximum, and threshold indicators to identify value thresholds. One gauge component can create a single gauge or a set of gauges depending on the data provided. The following kinds of gauges can be produced by this component:

Dial gauge: Creates a gauge that indicates its metric value along an 180-degree arc. This type of gauge usually has an indicator in the shape of a line or an arrow that points to the value that the gauge is plotting.
Status meter gauge: Creates a gauge that indicates the progress of a task or the level of some measurement along a horizontal rectangular bar. An inner rectangle shows the current level of a measurement against the ranges marked on an outer rectangle.
Status meter gauge (vertical): Creates a gauge that indicates the progress of a task of the level of some measurement along a vertical rectangular bar
LED (lighted electronic display) gauge: Creates a gauge that depicts graphically a measurement, such as key performance indicator (KPI). Several styles of graphics are available for LED gauges such as arrows that indicate good (up arrow), fair (left- or right-pointing arrow), or poor (down arrow).

You can specify any number of thresholds for a gauge. However, some LED gauges (such as those with arrow or triangle indicators) support a limited number of thresholds because there are a limited number of meaningful directions for them to point. For arrow or triangle indicators, the threshold limit is three.

  1. In the design view of the products.jsf page, click the Rating tab.

    the rating tab is highlighted

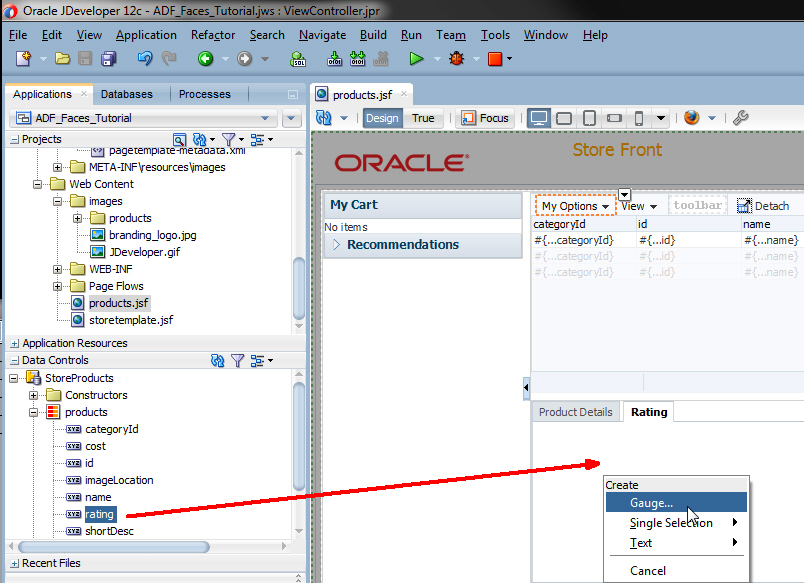

  2. In the data controls window, expand StoreProducts and products and drag the rating attribute onto the rating tab of the design editor. Choose Gauge... from the popup menu.

    drag gauge onto rating tab

  3. In the Component Gallery dialog, select the Status Meter Gauge category, then Circular Status Meter  as the meter type.

    dial with thresholds component selected

    Click OK.

  4. In the Create Circular Status Meter Gauge dialog, set the Maximum Value field to 10.
    Click the green plus sign and add three threshold attributes. Name and set them using the values below. Set the colors to ones generally like those in the image.

    Set the lowest threshold (threshold1) to 1.
    Set the middle threshold (threshold2) to 5.
    Leave the highest threshold (threshold3) at Maximum.

  5. threshold max value set to 5

    Click OK.

  6. Save your work and refresh the page in the browser. The status meter displays the current rating value for the current (first) product.

    page running in browser

  7. Click the Product Details tab and move the slider to change the rating value.

    product details with slider moved to new value


  8. Click Submit and then click the Rating tab to see the new value reflected in the table as well as the gauge. An error is raised referencing PPR. You will correct this in the next step.

Step 6: Implementing Partial Page Rendering

The goal of Partial Page Rendering is to improve a web page's interactivity, speed, and usability. Show more or lessRead more...

Ajax (Asynchronous JavaScript and XML) is a web development technique for creating interactive web applications, where web pages appear more responsive by exchanging small amounts of data with the server behind the scenes, without the whole web page being rerendered.

With ADF Faces, the feature that delivers the Ajax partial page render behavior is called partial page rendering (PPR). PPR allows certain components on a page to be rerendered without the need to rerender the entire page. For example, an output component can display what a user has selected or entered in an input component, without the whole page rerendering. In order for PPR to work, boundaries must be set on the page that allow the lifecycle to run just on components within the boundary. In order to determine the boundary, the framework must be notified of the root component to process. The root component can be identified in two ways:

- Events: Certain events indicate a component as a root. For example, the disclosure event sent when expanding or collapsing a showDetail component indicates that the showDetail component is a root. When the showDetail component is expanded or collapsed, only that component goes through the lifecycle. Other examples of events identifying a root component are the disclosure event when expanding nodes on a tree, or the sort event on a table.

- Components: Certain components are recognized as a boundary, and therefore a root component. For example, the framework knows a popup dialog is a boundary. No matter what event is triggered inside a dialog, the lifecycle does not run on components outside the dialog. It runs only in the popup.

In addition to built-in PPR functionality, you can configure components to use cross-component rendering, which allows you to set up dependencies so that one component acts as a trigger and another as the listener. When an event occurs on the trigger component, the lifecycle is run only on listener components and child components to the listener, and only the listener components and their children are rerendered. Cross-component rendering can be implemented declaratively. However, by default, all events from a trigger component will cause PPR (note that some components, such as table, trigger partial targets on only a subset of their events). For these cases where you need strict control over the event that launches PPR, or for cases where you want to use some logic to determine the target, you can implement PPR programmatically.
  1. In order to refresh the gauge when the when you select a row in the table, you need to define Partial Page Rendering behavior explicitly. To do so, perform the following steps:

    In JDeveloper, select the rating status meter component in the design view. In the Properties window, expand the Behavior category. Click the Property menu icon for the PartialTriggers property and select Edit.

    edit menu highlighted in the partial triggers property

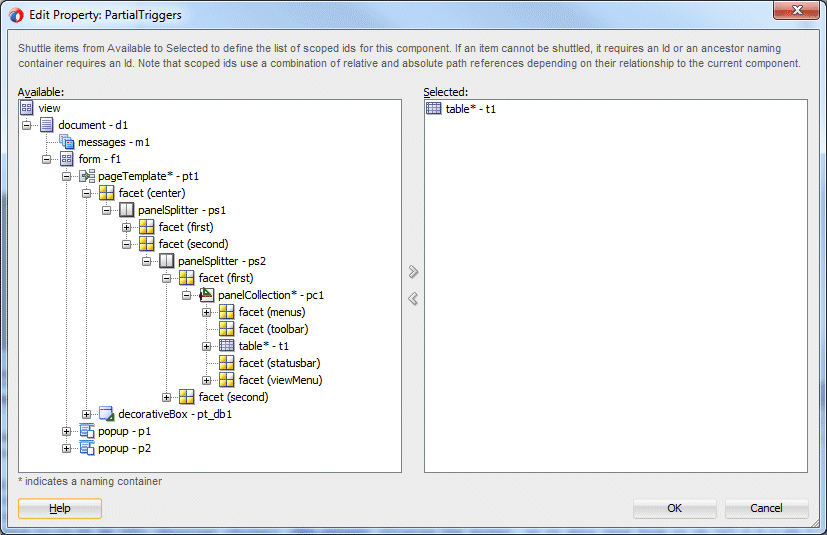

  2. In the Edit Property dialog, expand the document, form, pageTemplate, facet (center), panelSplitter - ps1, facet (second), panelSplitter - ps2, facet (first), and panelCollection components. Select the table* - t1 component, and shuttle it to the Selected pane. This defines what will trigger the refresh of the gauge.

    partial trigger edit property pane with table on the selected side

    Click OK.

  3. Save all your work and reload the page in the browser. Click the ratings tab to and select different rows in the table to refresh the gauge.

    second record in table selected and full record displayed in product details tab

Step 7: Using Skins to Change the Look and Feel of an Application

You can customize the appearance of ADF Faces and ADF Data Visualization components. Show more or lessRead more...

You can apply an ADF skin to the application or by applying CSS style properties directly to an ADF Faces or ADF DVT component if the component exposes a style-related property (styleClass or inlineStyle). Choosing the latter option means that you override style properties defined in your application's ADF skin for the component. You might do this when you want to change the style for an instance of a component on a page rather than for all components throughout the application or you want to programmatically set styles conditionally. For example, you want to display text in red only under certain conditions. In all other cases, styleClass or skinning should be used.

An ADF skin is a type of CSS file where you define CSS style properties based on the Cascading Style Sheet (CSS) specification for the component for which you want to customize the appearance. The ADF skin defines rules that determine how to apply CSS style properties to specific components or groups of components. The end user's browser interprets these rules and overrides the browser's default settings. See the Skin Editor documentation for further information:
  1. Finally in this section you'll see how to change the look and feel of the whole application using a different skin. To implement this functionality, perform the following steps:

    In the Applications window, expand the Web Content - WEB-INF node and double-click the trinidad-config.xml file to open the file in the editor.

    trinidad-config.xml file selected in application navigator
  2. The file defines the skin that is used in the skin-family element. Change the skin-family to simple.desktop. The simple skin is often chosen as a starting point for creating a custom skin.

    changed skin-family to simple

  3. Save all your work and refresh the page in the browser. Notice the changes in the look and feel of the application.

    the page reloaded with the princess style applied

    When finished, close your browser window. You have successfully completed this tutorial.

Bookmark Print Expand all | Hide all
Copyright © 2014, Oracle and/or its affiliates. All rights reserved.
