Data record displays

Data record displays allow users to view lists of records.

Results List

Displays the list of records for the current refinement. The list format is similar to regular Web search results. Each record contains a selected set of attributes.

Users can export and print the list. The component can also include options to compare records, display details for a record, and refine the data.

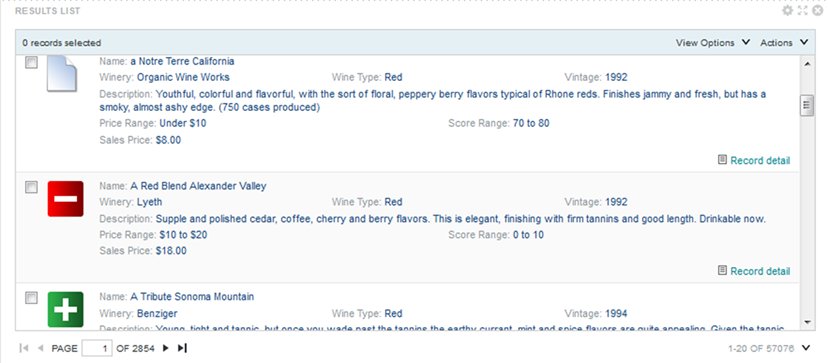

Example of a Results List component
The Results List component configuration includes:
  • The attributes to include for each record, including whether to use the attributes for refinement or to display related content
  • The sorting options for the list
  • The images to display next to each record
  • The display and pagination options for the list

Results Table

Displays a table containing either:
  • A list of records for the current refinement
    Example of a records list type of Results Table
  • A set of metrics aggregated by one or more dimensions
    Example of an aggregated Results Table

Users can export and print the list. They also may be able to use the Compare dialog to compare selected rows.

The table can include links to display the Record Details dialog, refine the data set, or display related content. Selected values also may be highlighted.

The Results Table component configuration includes:
  • The type of table
  • The columns to display in the table
  • Whether to highlight values that fall within selected ranges
  • The available actions for the table
  • The pagination and sorting options for the table
