Installing Oracle Healthcare Data Repository

This chapter contains the following topics:

Prerequisites

Set the following environment variables on the machine from where the HDR installer will be run:

If you are installing HDR on the Oracle 12c pluggable database (PDB), then perform the following:

  1. Edit $ORACLE_HOME/network/admin/tnsnames.ora and add an entry for the PDB service name. The tnsname shall be same as the PDB service name.

  2. Edit $ORACLE_HOME/network/admin/listener.ora and add the USE_SID_AS_SERVICE_listener=on line.

Installing HDR using the Oracle Universal Installer

This section explains how to install the HDR application using the Oracle Universal Installer. Based on the operating system, download the respective HDR installer. For example, HDR_Installer_<Operating _System>64_Package.zip.

The HDR application has to be installed in two stages:

Running Installer for HDR Database Tier Installation

This section explains how to create CTB and HCT schemas and respective database objects in the CTB and HCT schemas.

To install the HDR database tier, perform the following:

  1. Copy HDR_Installer.zip and artifacts.zip folders to the database server machine.

  2. Extract the files from HDR_Installer.zip and artifacts.zip to a directory.

    For example, /home/hdrinstaller.

  3. Navigate to the /hdrinstaller/Disk1 directory using the following command:

    cd /hdrinstaller/Disk1

  4. Execute the following script:

    ./runInstaller.sh

    The Oracle Universal Installer screen is displayed.

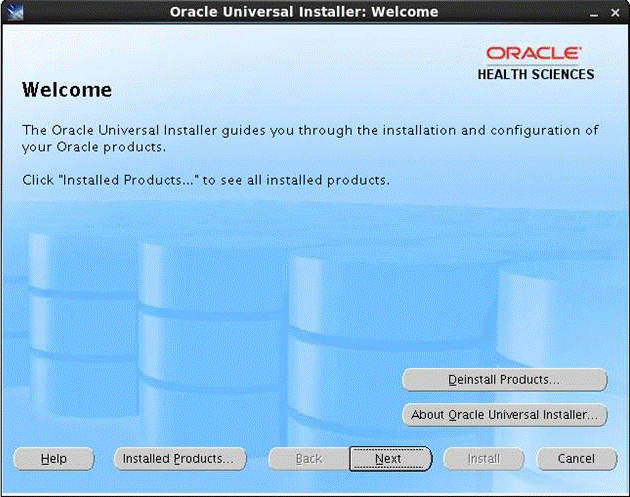

    Figure 2-1 Oracle Universal Installer

    Description of Figure 2-1 follows
    Description of "Figure 2-1 Oracle Universal Installer"

  5. Click Next.

    The Select a Product to Install screen is displayed.

    Figure 2-2 Select a Product to Install

    Description of Figure 2-2 follows
    Description of "Figure 2-2 Select a Product to Install"

  6. Select the Healthcare Data Repository - Database Tier 7.0.1.0.0 option for HDR database schema and click Next.

    The Specify Home Details screen is displayed.

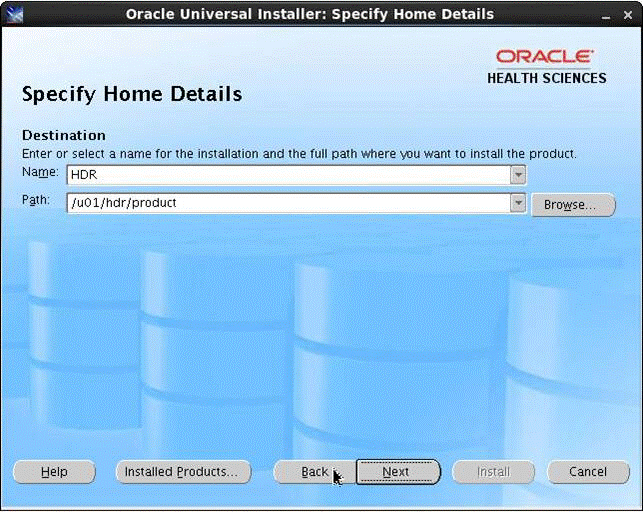

    Figure 2-3 Specify Home Details

    Description of Figure 2-3 follows
    Description of "Figure 2-3 Specify Home Details"

  7. Enter the following values in the corresponding fields:

    Table 2-1 Field Values

    Field Value

    Name

    Enter the name of HDR Home.

    Path

    Enter the path for HDR Home.

    This is the location where the HDR product artifacts, including the HDR J2EE application are copied.


    Notes:

    • By default, the Oracle database home directory path is displayed. Ensure to change the values to HDR home and its path.

    • If the HDR installer cannot reuse the default oraInventory location or if you prefer to have a custom oraInventory location, then you must create a desired oraInventory directory with a file named oraInst.loc. The contents of the oraInst.loc file are as follows:

      inventory_loc=<full path of the new oraInventory location> inst_group=<OS user group name that owns the new oraInventory location>

      After creating the oraInventory directory and the oraInst.loc file, execute the HDR installer using the following command:

      Disk1$ ./install/runInstaller -invPtrLoc <full path to the new oraInst.loc file>

  8. Click Next.

    The Database Details screen is displayed

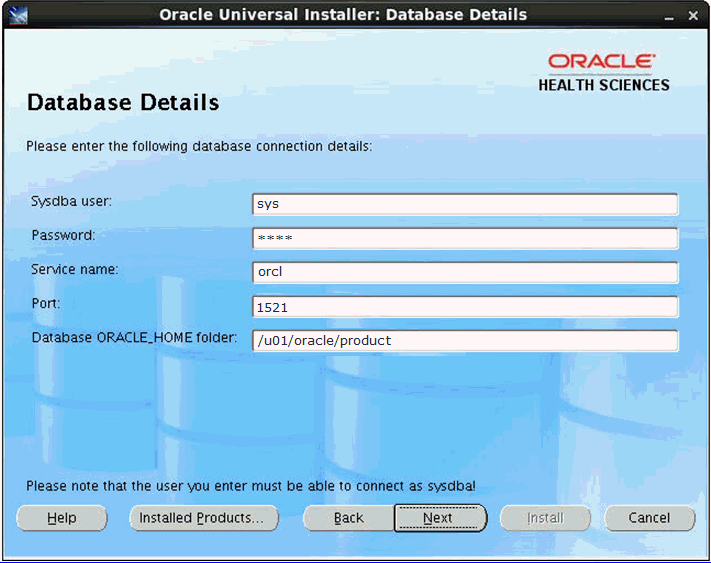

    Figure 2-4 Database Details

    Description of Figure 2-4 follows
    Description of "Figure 2-4 Database Details"

  9. Enter the following values in the corresponding fields:

    Table 2-2 Field Values

    Field Value

    Sysdba user

    Enter the Oracle system user name.

    Password

    Enter the system user password.

    Service name

    Enter the Oracle service name.

    Port

    Enter the Oracle database port number.

    Database ORACLE_HOME folder

    Enter the path of ORACLE_HOME.

  10. Click Next.

    The Tablespace Properties screen is displayed.

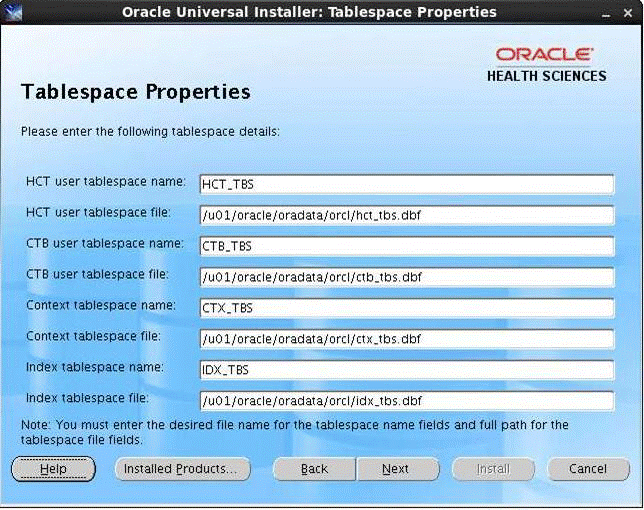

    Figure 2-5 Tablespace Properties

    Description of Figure 2-5 follows
    Description of "Figure 2-5 Tablespace Properties"

  11. Enter the following values in the corresponding fields:

    Table 2-3 Field Values

    Field Value

    HCT user tablespace name

    Enter the table space name for the HCT schema.

    HCT user tablespace file

    Enter the database file path (.dbf file) of the HCT tablespace.

    CTB user tablespace name

    Enter the table space name for the CTB schema.

    CTB user tablespace file

    Enter the database file path (.dbf file) of the CTB tablespace.

    Context tablespace name

    Enter the table space name for ETS context indexes.

    Context tablespace file

    Enter the database file path (.dbf file) of the Context tablespace.

    Index tablespace name

    Enter the tablespace name for all CTB and HCT indexes.

    Index tablespace file

    Enter the database file path (.dbf file) of the Index tablespace.

  12. Click Next.

    The HCT User Password screen is displayed.

  13. Enter the following values in the corresponding fields:

    • Enter Password - Enter the HCT user password.

    • Confirm Password - Re-enter the HCT user password to confirm.

  14. Click Next.

    The CTB User Password screen is displayed.

  15. Enter the following values in the corresponding fields:

    Table 2-4 Field Values

    Field Value

    Enter Password

    Enter the CTB user password.

    Confirm Password

    Re-enter the CTB user password to confirm.

  16. Click Next.

    The ETS Concurrent Programs Settings screen is displayed.

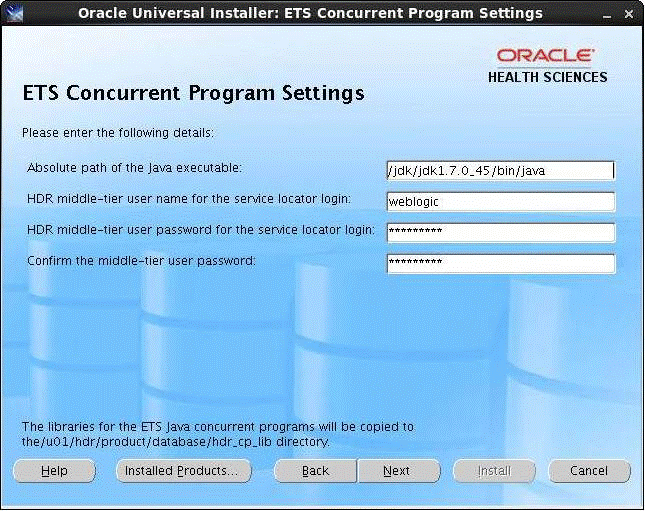

    Figure 2-6 ETS Concurrent Programs Settings

    Description of Figure 2-6 follows
    Description of "Figure 2-6 ETS Concurrent Programs Settings"

  17. Enter the following values in the corresponding fields:

    Table 2-5 Field Values

    Field Value

    Absolute path of the Java executable

    Enter the complete JDK bin/java path.

    HDR middle-tier user name for service locator login

    Enter the WebLogic HDR user name.

    HDR middle-tier user password for the service locator login

    Enter the WebLogic HDR user password.

    Note: The WebLogic HDR user name and password should match the WebLogic domain user name and password mentioned in Running Installer for HDR Middle-Tier Installation.

    Confirm the middle-tier user password

    Re-enter the WebLogic HDR password to confirm.

  18. Click Next.

    The Summary screen is displayed.

  19. Click Install.


    Note:

    Any errors during the installation are logged in the files under the <user_home_dir /oraInventory/logs folder.

    On successful completion of installation, the End of Installation screen is displayed.

  20. Click Exit.

Running Installer for HDR Middle-Tier Installation

To install the HDR middle-tier, perform the following:

  1. Copy HDR_Installer.zip and artifacts.zip folders to the WebLogic server machine.

  2. Extract the files from HDR_Installer.zip and artifacts.zip to a directory.

    For example, /home/hdrinstaller.

  3. Navigate to the hdrinstaller directory using the following command:

    cd hdrinstaller/Disk1

  4. Execute the following script:

    ./runInstaller.sh

    The Oracle Universal Installer screen is displayed.

  5. Click Next.

    The Select a Product to Install screen is displayed.

  6. Select the Healthcare Data Repository – WebLogic Tier 7.0.1.0.0 option and click Next.

    The Specify Home Details screen is displayed.

  7. Enter the following values in the corresponding fields:

    Table 2-6 Field Values

    Field Value

    Name

    Enter the name of HDR Home.

    Path

    Enter the path for HDR Home.


    Note:

    • By default, the Oracle database Home directory path is displayed. Ensure the values are changed to enter HDR home and its path.

    • You can choose the same machine for both the middle tier and the database tier.

  8. Click Next.

    The Choose WebLogic Home Directory screen is displayed.

  9. Enter the WebLogic home path in the WebLogic home folder field.

  10. Click Next.

    The HDR Domain Properties screen is displayed.

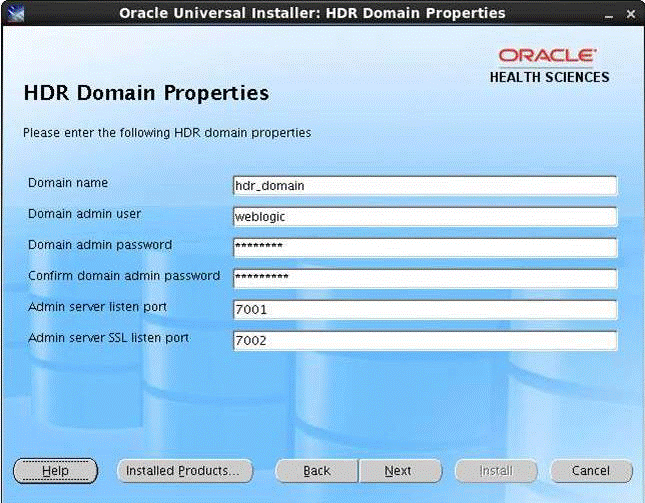

    Figure 2-7 HDR Domain Properties

    Description of Figure 2-7 follows
    Description of "Figure 2-7 HDR Domain Properties"

  11. Enter the following values in the corresponding fields:

    Table 2-7 Field Values

    Field Value

    Domain name

    Enter the WebLogic domain name under which the HDR application has to be deployed.

    Domain admin user

    Enter the WebLogic domain admin user name.

    Domain admin password

    Enter the WebLogic domain admin password.

    Confirm domain admin password

    Re-enter the WebLogic domain admin password.

    Admin server listen port

    Enter the admin port number of the HDR domain.

    Admin server SSL listen port

    Enter the SSL port number.

  12. Click Next.

    The HDR Managed Server Properties screen is displayed.

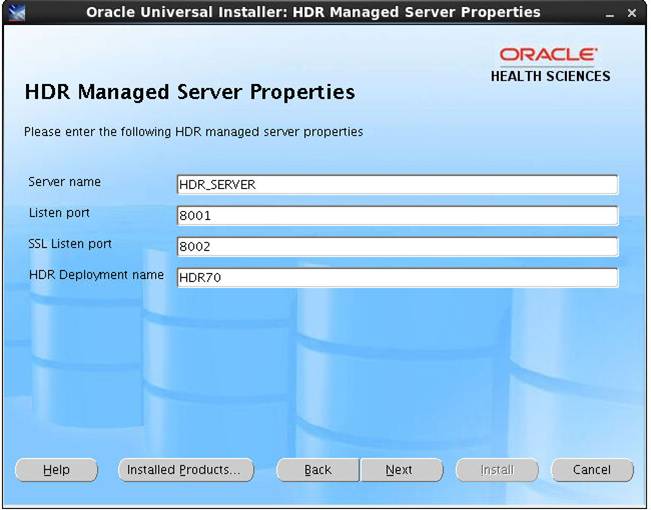

    Figure 2-8 HDR Managed Server Properties

    Description of Figure 2-8 follows
    Description of "Figure 2-8 HDR Managed Server Properties"

  13. Enter the following values in the corresponding fields:

    Table 2-8 Field Values

    Field Value

    Server name

    Enter the HDR Managed server name.

    Listen port

    Enter the port number on which HDR managed server can listen.

    SSL Listen port

    Enter the SSL listen port number.

    HDR Deployment name

    Enter the HDR application name.

  14. Click Next.

    The IHE XDS User Password screen is displayed.

  15. Enter the following values in the corresponding fields:

    Table 2-9 Field Values

    Field Value

    Enter Password

    Enter the password for IHE XDS user.

    Confirm Password

    Re-enter the password for IHE XDS user.

  16. Click Next.

    The DataSource properties screen is displayed.

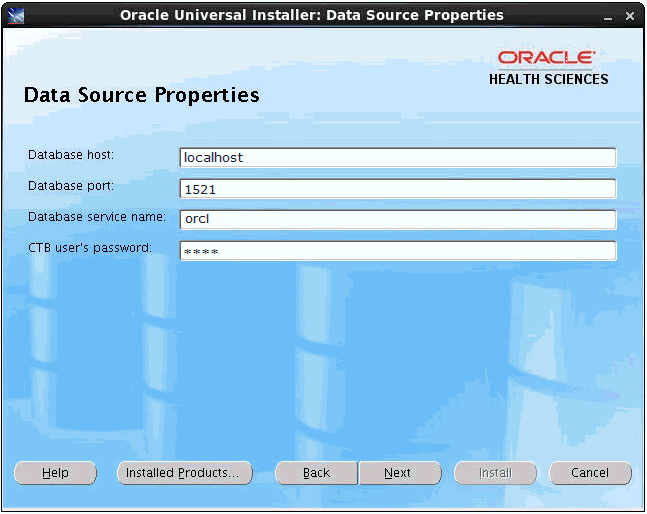

    Figure 2-9 Data Source Properties

    Description of Figure 2-9 follows
    Description of "Figure 2-9 Data Source Properties"

  17. Enter the following values in the corresponding fields:

    Table 2-10 Field Values

    Field Value

    Database host

    Enter the host name or IP address of the Oracle database server where HDR is installed.

    Database port

    Enter the database port number.

    Database service name

    Enter the database service name.

    CTB user's password

    Enter the CTB schema user password.

  18. Click Next.

    The OIDs and Empi Configuration screen is displayed.

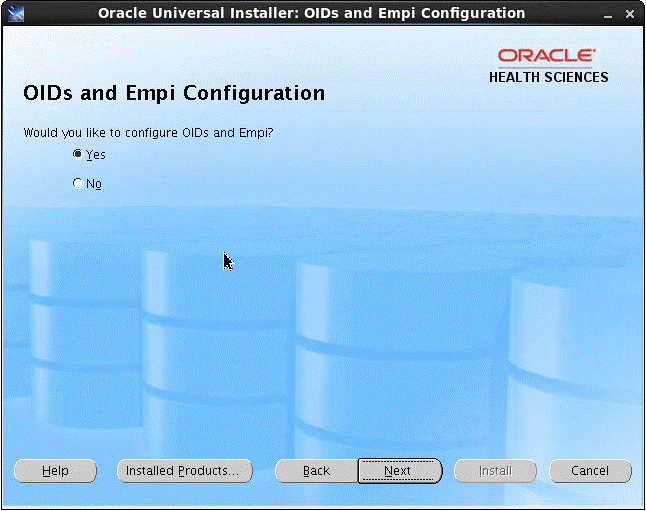

    Figure 2-10 OIDs and Empi Configuration

    Description of Figure 2-10 follows
    Description of "Figure 2-10 OIDs and Empi Configuration"

  19. Select one of the following options:

    1. Select Yes, if the HDR database is a fresh installation.

      The OID Values screen is displayed.

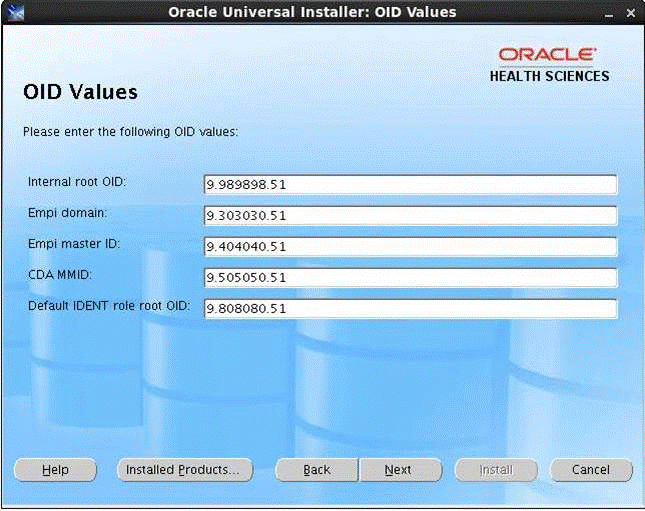

      Figure 2-11 OID Values

      Description of Figure 2-11 follows
      Description of "Figure 2-11 OID Values"

    2. Select No, if the HDR database is upgraded from HTB 5.3 or 6.1.1.

  20. Enter the values in the fields as required.

  21. Click Next.

    The Oracle Wallet Details screen is displayed.

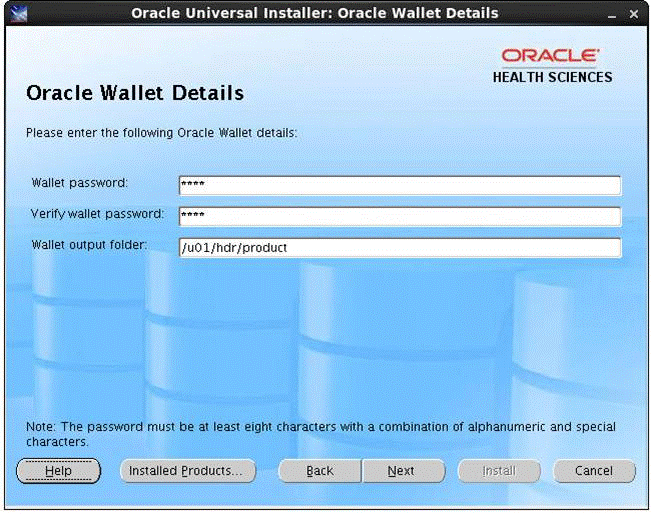

    Figure 2-12 Oracle Wallet Details

    Description of Figure 2-12 follows
    Description of "Figure 2-12 Oracle Wallet Details"

  22. Enter the values in the fields as required.

  23. Click Next.

    The IHE Profile Options screen is displayed.

  24. To access the IHE Web Services, select Yes. Else, select No.

  25. Select Yes and click Next.

    The IHE Profile Options screen is displayed.

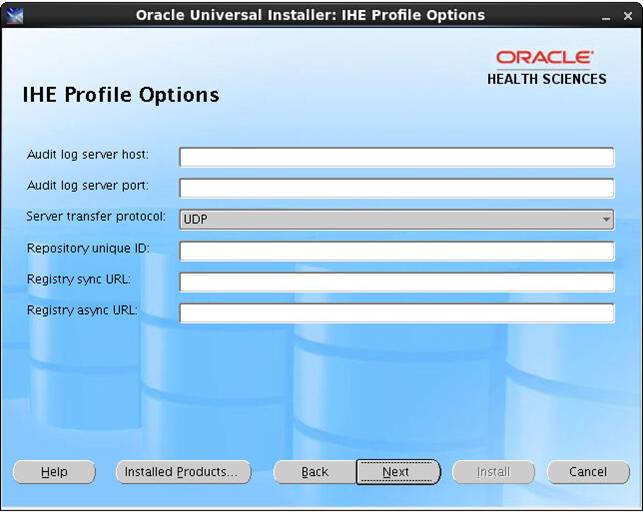

    Figure 2-13 IHE Profile Options

    Description of Figure 2-13 follows
    Description of "Figure 2-13 IHE Profile Options"

  26. Enter the values in the fields as required.


    Note:

    For more information on IHE Profile options, see the Oracle Healthcare Data Repository Implementation Guide.

  27. Click Next.

    The Summary screen is displayed.

  28. Click Install.

    The following message is displayed after successful installation:

    The installation of Oracle Healthcare Data Repository - WebLogic tier was successful.


    Note:

    Installer log files are created under the <user_home_dir>/OraInventory/logs folder. Refer these log files for any errors during the installation.

  29. Click Exit to exit the installer.

  30. Copy all the MTK custom schema/MIFs from HTB 6.X instance to HDR 7.0.1 instance by running the following command:


    Note:

    This step is applicable when you upgrade from HTB 6.X to HDR 7.0.1.

    Copy $JAVA_TOP/oracle/apps/ctb/message/defs/customSchema/* to $HDR_HOME/hdr_exploded_app/oracle/apps/ctb/message/defs/customSchema

  31. Copy the tCDA configuration XMLs from HTB 6.X instance to the HDR 7.0.1 instance by running the following command:


    Note:

    This step is applicable when you upgrade from HTB 6.X to HDR 7.0.1.

    Copy $JAVA_TOP/oracle/apps/ctb/ccd/metadata/configuration/server/*.xml to $HDR_HOME/hdr_exploded_app/oracle/apps/ctb/ccd/metadata/configuration/server

  32. Start the WebLogic hdr_domain admin server.

    For example, > nohup ./startWebLogic.sh &

  33. Start the hdr_server managed server.

    For example, > nohup ./startManagedWebLogic.sh <hdr-nodemanger>http://<ip-address>:<port -number> hdr_server.log &

Installing HDR without using the Oracle Universal Installer

You can install HDR without using the Oracle Universal Installer. To install HDR without using the Oracle Universal Installer, perform the following:

Verifying HDR Installation

To verify the HDR installation, execute the SessionTest.java code supplied. This code tests the creation of a session, user login, ETSService, Profile Options Service, and MasterCatalogService.

To execute the SessionTest.java file, perform the following:

  1. Create a folder 'src' on your system and copy the SessionTest.java file and the jndi.properties file to the folder.

  2. Edit application server details in the jndi.properties file.

  3. Install the client-side libraries.

    For a list of the client-side libraries, refer to the Healthcare Data Repository Programmer's Guide.

  4. Execute the SessionTest.java file after the compilation.

Uninstalling HDR

This section contains the following topics:

Uninstalling Database Objects

To uninstall the database objects (CTB and HCT user schemas), perform the following:

  • Execute the following SQL scripts from sqlplus/sqldeveloper as sys user:

    • exec dbms_scheduler.drop_job('HDR_ETS_MAINTENANCE', TRUE);

    • exec dbms_scheduler.drop_job('HDR_ETS_LOADER', TRUE);

    • exec dbms_scheduler.drop_job('HDR_ETS_IMPORTER', TRUE);

    • exec dbms_scheduler.drop_program('hdr_ets_maintenance_program');

    • exec dbms_scheduler.drop_program('hdr_ets_loader_program');

    • exec dbms_scheduler.drop_program('hdr_ets_importer_program');

    • exec dbms_scheduler.drop_job('hdr_bdl_scheduler_job',TRUE);

    • exec dbms_scheduler.drop_program('hdr_bdl_scheduler_program');

    • drop user HCT cascade;

    • drop user CTB cascade;

    • drop tablespace CTB_TBS INCLUDING CONTENTS and datafiles;

    • drop tablespace HCT_TBS INCLUDING CONTENTS and datafiles;

    • drop tablespace IDX_TBS INCLUDING CONTENTS and datafiles;

    • drop tablespace CTX_TBS INCLUDING CONTENTS and datafiles;

Uninstalling the HDR Middle-Tier Application

To uninstall the HDR middle-tier application, perform the following:

  1. Stop the hdr_domain and hdr_server node mangers.

  2. Delete the hdr_domain folder completely.

  3. Edit WebLogic Oracle_Home/domain-registry.xml and remove the entry for hdr_domain.

  4. Delete the HDR home directory (that you provided during installation) completely.

Previous
Previous 		 Next
Next
Go To Table Of Contents
Contents
