FSPM Architecture

Oracle FS Path Manager (FSPM) manages multipathing and communicates with the Oracle FS System on a control path, which is separate from the data path. LUN access is managed along the data path.

The following figure illustrates how the FSPM software installed on a SAN host interacts with an Oracle FS System. The following table describes meanings of the lines and colors used in the figure.

Table 1 Line and color key
Graphic element	Description
	Data path
	Control path
	Oracle FS System hardware and software
	Non-Oracle FS System hardware and software
	SAN host system space
	SAN host user space

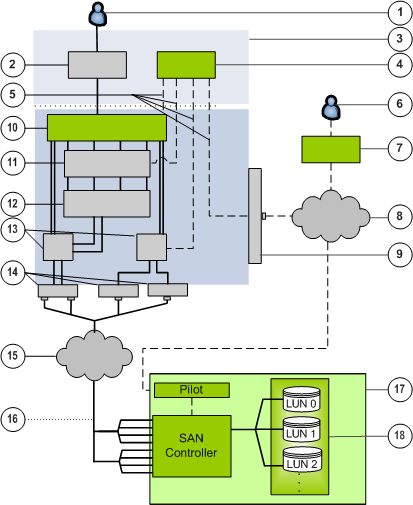

Figure 1 FSPM interaction with an Oracle FS System FSPM Architecture

Legend

1 User	10 FSPM Device-Specific Module (DSM)
2 User application	11 iSCSI software initiator (iSCSI only)
3 SAN host	12 TCP/IP driver (iSCSI only)
4 FSPM service, fspmd	13 HBA driver (FC or iSCSI) or NIC driver (iSCSI)
5 Control path (all dashed lines)	14 HBA (FC or iSCSI) or NIC (iSCSI)
6 Oracle FS System administrator	15 SCSI over FC or iSCSI over IP
7 Oracle FS CLI or Oracle FS System Manager (GUI)	16 Data path (all solid lines)
8 Encrypted messages over TCP/IP	17 Oracle FS System
9 Network card	18 Drive Enclosure storage pool
