Oracle FS System Rack Hardware Specifications

An Oracle FS System can contain a combination of:

Two Pilot nodes; each node is a 1U Oracle server.
Two Controllers
One to 30 Drive Enclosures.
Two power distribution units (PDUs) built into the rack.
Replication Engines (optional)

Note: Two racks are required to install 30 Drive Enclosures

Customer supplied racks into which you install the Oracle FS1 Flash Storage System components must meet the requirements listed in the following table:

Table 1 Rack specifications for an Oracle FS System
Item	Requirement
Structure	Four-post rack (mounting at both front and rear). Supported rack types: square hole (9.5 mm) round hole (M6 or 1/4-20 threaded only) Note: Two-post racks are not compatible.
Rack horizontal opening and unit vertical pitch	Conforms to ANSI/EIA 310-D-1992 or IEC 60927 standards.
Distance between front and rear mounting planes	Minimum 24 in (610 mm) Maximum 36 in (915 mm)
Clearance depth in front of front mounting plane	Minimum distance to rear cabinet door: 35.43 in (900 mm) with the CMA 31.49 in (800 mm) without the CMA Note: CMAs are required for Pilots, Controllers, and Replication Engines.
Clearance width between front and rear mounting planes	Minimum distance between structural supports and cable troughs is 18 in (456 mm).
Minimum clearance for service access	Clearance (front): 48.5 in (123.2 cm) Clearance (back): 36 in (91 cm)
Front door	Vented 1.5 in (3.81 cm) deep Lockable Open left to right 1 in (2.54 cm) clearance between front vertical channel and inside of frame
Rear door	Vented Lockable Open left to right
Sides	Solid Removable Lockable 1 inches (2.54 centimeters) between side and frame
Vertical channels	19 in side to side 26 in front rail to back rail
Vents	Front and back doors Top
PDU	2 PDUs 90–240VAC, 50–60Hz 10kVA for single-phase PDUs; 15 kVA for three-phase PDUs 42 outlets (six groups of seven outlets each) Vertical mount
Heat dissipation	Oracle FS System: 28,500 BTU/hr
Loaded weight	Oracle FS System: 1535.7 lb (696.6 kg)

The center of gravity of a populated Oracle FS System rack is toward the front. The threshold tilt angle depends on whether the front or back of the rack faces down the slope:

Front faces downward: 12° maximum slope.
Back faces downward: 24° maximum slope.

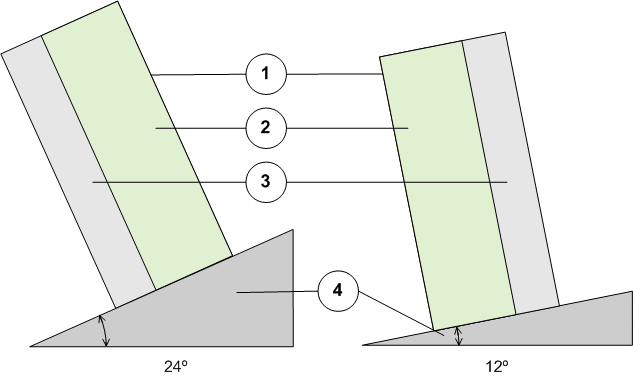

Figure 1 Maximum tilt angles for stationary Oracle FS System racks

Legend

1 42U rack

2 Oracle FS system components

3 Cabling aperture

4 Ramp
