Pilot LED Indicators

The Pilot LEDs are on the front panel of the Pilot. Use these diagnostic LEDs to determine if a component has failed in the Pilot.

The following figure shows the LEDs at the front of the Pilot:

Figure 1 LEDs at the front of the Pilot

Legend

1 Locator LED / Locator button: white	5 Power button
2 Service Action Required LED or Caution or Fault LED: Amber	6 Fan fault LED: amber
3 OK LED: green	7 Power supply fault LED: amber
4 Service processor LED: green

The following figure shows the LEDs at the back of the Pilot:

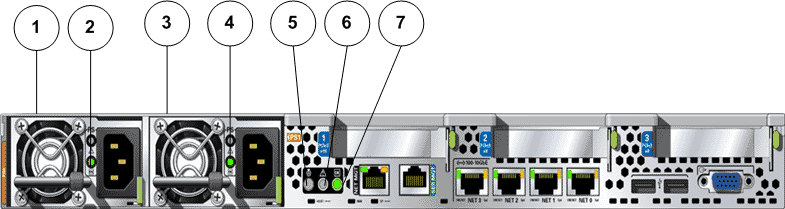

Figure 2 LEDs at the back of the Pilot

Legend

1 Poser supply 0 (PS0)	5 Locator LED: white
2 Power supply LEDs: Service Required LED (amber) and AC OK LED (green)	6 Service Required LED: amber
3 Power supply 1 (PS1)	7 Power or OK LED: green
4 Power supply LEDs: Service Required LED (amber) and AC OK LED (green)

There are six, system-level status indicators (LEDs), that are on the Pilot front panel and the Pilot back panel. The following table provides status information on these Pilot LEDs:

Table 1 Pilot LED status and description
LED	LED color	Status
Locator LED button	White	OFF – Pilot is operating normally FAST BLINK – To locate a particular system quickly and easily. Pressing the Locate button toggles the LED fast blink on or off.
Service Action Required LED	Amber	OFF – Normal operation STEADY ON – Fault present on the Pilot. This LED lights whenever a fault indicator lights for a Pilot replaceable component. Note: When this indicator lights up, there is a system console message that includes a recommended service action.
Power or OK LED	Green	Indicates the operational state of the chassis. This indicator can be in the following states: OFF – AC power is not present. STEADY BLINK – Standby power is on, but the chassis power is off. SLOW BLINK – Startup sequence has been initiated on the host. This pattern begins soon after you power on the Pilot. This status indicates either: (1) POST code checkpoint tests are running on the Pilot host system, or (2) the host is transitioning from the powered-on state to the standby state on shutdown. STEADY ON – The Pilot is powered on, and all host POST code checkpoint tests are complete. The Pilot is in one of the following states: 1) The Pilot host is booting the operating system (OS). 2) The Pilot host is running the OS.
Service Processor LED	Green	OFF – Service processor (SP) is not running. SLOW BLINK – SP is booting. STEADY ON – SP is fully operational.
Top Fan, Processor, Memory Failure LED	Amber	Indicates that one or more of the internal fan modules, processors, or memory DIMMs have failed. OFF – Indicates steady state; no service is required. STEADY ON – Indicates service required; service the fan modules, processors, or memory DIMMs.
Rear Power Supply Failure LED	Amber	Indicates that one of the Pilot power supplies has failed. OFF – Indicates steady state; no service is required. STEADY ON – Indicates service required; service the power supply.
Over Temperature Warning LED	Amber	OFF – Normal operation; no service is required. STEADY ON – The system is experiencing an over-temperature warning condition. Note: This is a warning indication, not a fatal over temperature. Might result in the system overheating and shutting down unexpectedly.
