Insert a Drive

  1. Make sure that the drive carrier handle on the replacement drive is in the fully extended position.

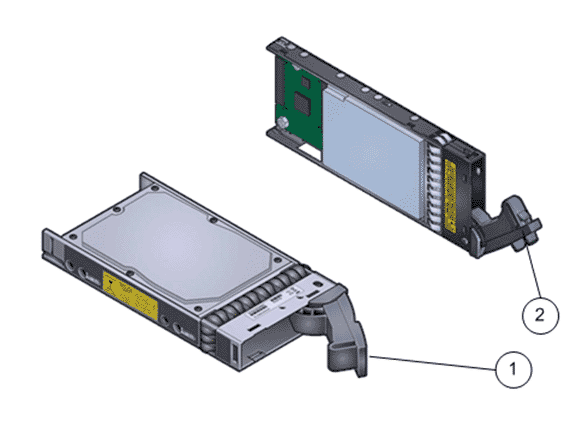

    Figure 1 Extended drive carrier handles Extended
drive carrier handles
    Legend
    1 Drive carrier handle DE2-24C Drive Enclosure 2 Drive carrier handle DE2-24P Drive Enclosure
  2. Slide the replacement drive all the way into the Drive Enclosure chassis slot.

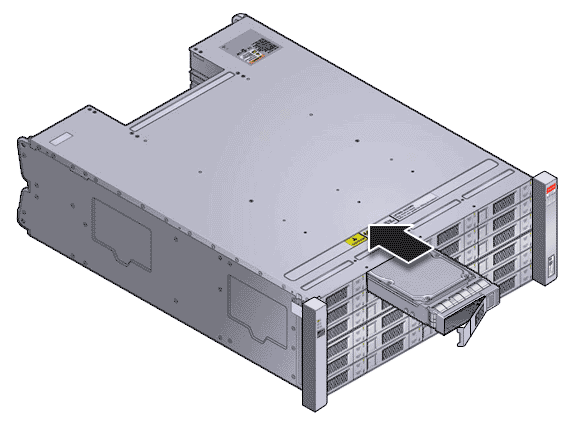

    Figure 2 DE2-24C Drive Enclosure and inserted replacement drive DE2-24C
Drive Enclosure and inserted replacement drive

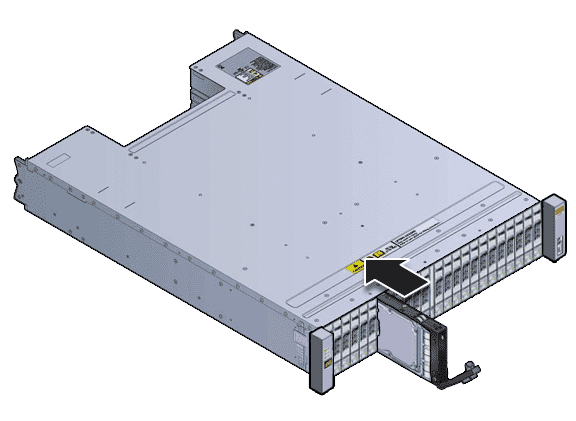

    Figure 3 DE2-24P Drive Enclosure and inserted replacement drive DE2-24P
Drive Enclosure and inserted replacement drive
  3. Press the drive carrier handle closed until it locks into place.

    The green LED should flash green for up to one minute and become steady.

    Return to Guided Maintenance to accept the drive.
