Insert an Energy Storage Module

Insert the ESM into the correct slot.
Note: The Controller might have filler panels covering the empty slots in the ESM drive compartment.
Slide the replacement ESM into the drive compartment until the ESM is fully seated into the slot.

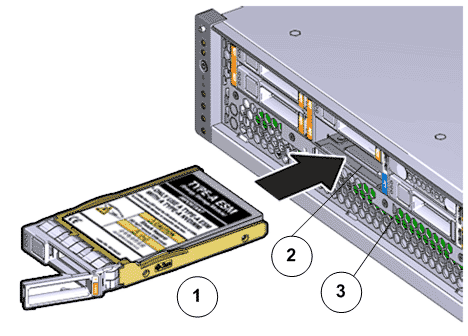

Figure 1 Insert ESM
Legend

1 ESM

2 Controller drive compartment

3 Controller front

Note: Be sure to install the replacement ESM in the same slot from which the ESM was removed.
Close the drive carrier latch to lock the ESM in place.

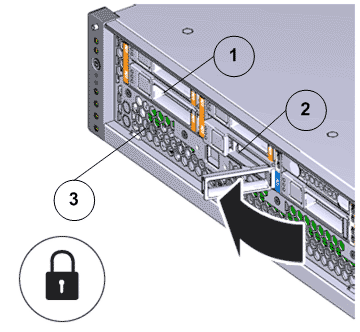

Figure 2 Secure ESM into drive slot
Legend

1 ESM

2 Controller drive compartment

3 Controller front

Note: Do not force the drive carrier latch. You can damage the drive carrier latch if you apply too much force.
