Insert a Pilot CPU

  1. Unpack the component from its shipping carton.
    Note: Place the component on an antistatic mat if it must be set aside for any reason.
  2. Gently align the pins on the underside of the CPU to the CPU socket and push down to secure the CPU in the socket.

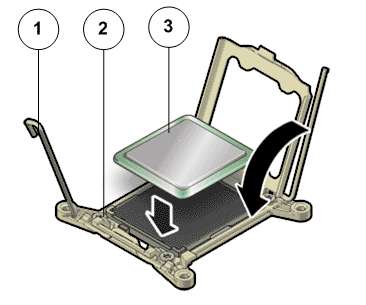

    Figure 1 CPU insertion CPU insertion
    Legend
    1 CPU socket lever
    2 CPU socket
    3 CPU
  3. Push down on the lever of the CPU socket to secure the CPU inside.
