Insert a Riser

Unpack the component from its shipping carton.
Note: Place the component on an antistatic mat if it must be set aside for any reason.
Insert the HBA cards that were placed aside and insert them in the same PCIe slots as before within the replacement riser.
Reconnect the SAS cable bundle into the HBA inside the riser.
Insert the riser into the black slot on the Pilot motherboard and slide the release tab backward to secure the riser in position.

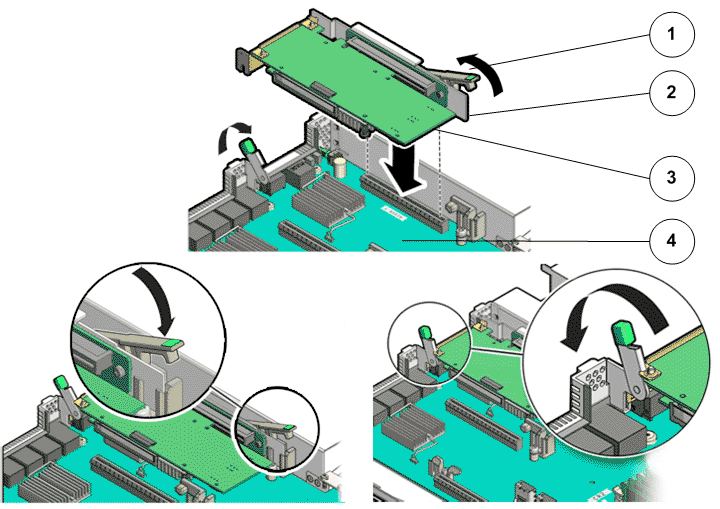

Figure 1 Pilot riser insertion

Legend

1 Release tab

2 Riser

3 HBA

4 Pilot motherboard
Insert the filler panels, if any, inside the riser.
