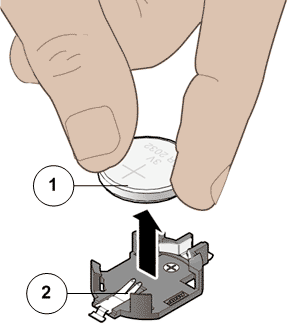

- Remove the battery by placing your finger or a pointed tool like a screwdriver under the battery on the side nearest to the back of the Pilot and gently lifting the battery out of the retainer.Figure 1 Pilot battery removal
- Legend
1 Pilot battery 2 Battery socket
- Place the battery on an antistatic mat.Note: Replacing a battery usually resets the CMOS settings to a default value.
