Remove a Fan Module
Using your thumb and forefinger, grasp the removal tab and gently lift the fan module from the fan compartment.

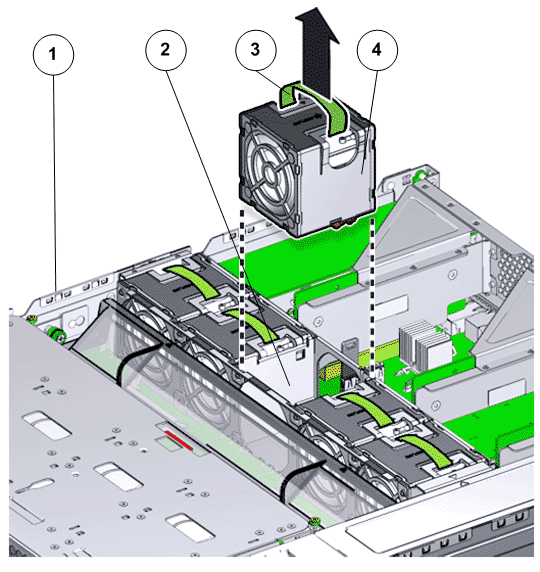

Figure 1 Remove fan module
Legend
1
Controller
chassis
2 Fan compartment
3 Removal tab
4 Fan module
Note:
Pulling the green tab from the middle releases the locking tab for each individual fan.
Note:
When removing a fan module, do not rock it back and forth. Rocking the fan module can cause damage to the motherboard connectors.
Set the fan module aside.
Note:
The fan compartment might come out when the last fan module is removed.
