- When Guided Maintenance prompts you to remove the component, power off the failed power cooling module.Note: Do not power off the healthy power cooling module.
- Disconnect the power cord tie strap from the faulted power cooling module.
- Unplug the power cord from the failed power cooling module.
- Release the attachment lever.
To release the attachment lever, squeeze together the latch and the opposite side of the failed power cooling module.

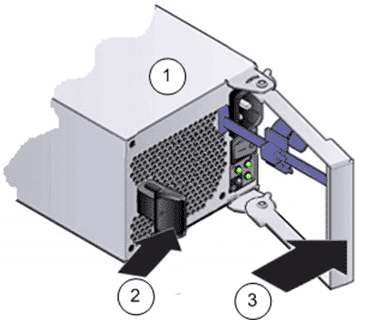

Figure 1 Attachment lever and latch on the power cooling module
- Legend
1 Power cooling module 3 Attachment lever 2 Latch
- Gently pull the failed power cooling module out of the Drive Enclosure chassis. Note: Be careful not to damage the connector pins.
