The Pilot LEDs are on the front panel of the Pilot. Use these diagnostic LEDs to determine if a component has failed in the Pilot.

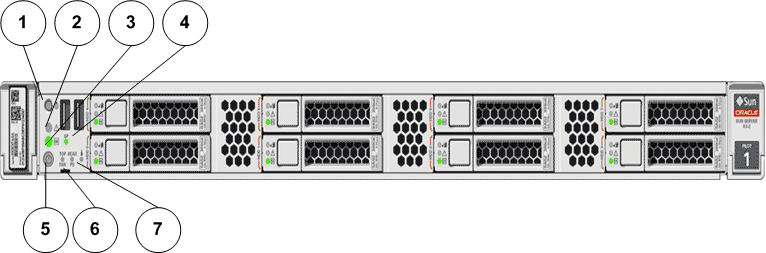

1 Locator LED / Locator button: white | 5 Power button |
2 Service Action Required LED or Caution or Fault LED: Amber | 6 Fan fault LED: amber |
3 OK LED: green | 7 Power supply fault LED: amber |
4 Service processor LED: green |

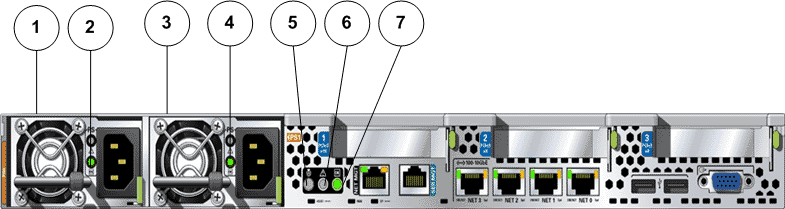

1 Poser supply 0 (PS0) | 5 Locator LED: white |
2 Power supply LEDs: Service Required LED (amber) and AC OK LED (green) | 6 Service Required LED: amber |
3 Power supply 1 (PS1) | 7 Power or OK LED: green |
4 Power supply LEDs: Service Required LED (amber) and AC OK LED (green) |
LED | Icon | LED color | Status |
---|---|---|---|
Locator LED button |
|
White |
|
Service Action Required LED |
|
Amber |
Note: When this indicator lights up, there is a system console message that includes a recommended service action.
|
Power or OK LED |
|
Green |
Indicates the operational state of the chassis. This indicator can be in the following states:
|
Service Processor LED |
|
Green |
|
Top Fan, Processor, Memory Failure LED |
|
Amber |
Indicates that one or more of the internal fan modules, processors, or memory DIMMs have failed.
|
Rear Power Supply Failure LED |
|
Amber |
Indicates that one of the Pilot power supplies has failed.
|
Over Temperature Warning LED |
|
Amber |
Note: This is a warning indication, not a fatal over temperature. Might result in the system overheating and shutting down unexpectedly.
|
