A cable planning worksheet can help facilitate the process of cabling an Oracle FS System by providing you with a method to record the string assignments and the rack placements of the hardware components.
The following table shows an example of a completed planning worksheet for an Oracle FS System. The example illustrates a populated rack by showing the RU placements of the hardware components. The example uses the following Drive Enclosure configuration to distribute the Drive Enclosures across four strings:
Two DE2-24P Drive Enclosures with 13 400GB solid state drives (SSDs)
Four DE2-24P Drive Enclosures with 24 900GB hard disk drives (HDDs)
Six DE2-24C Drive Enclosures with 24 4TB HDDs

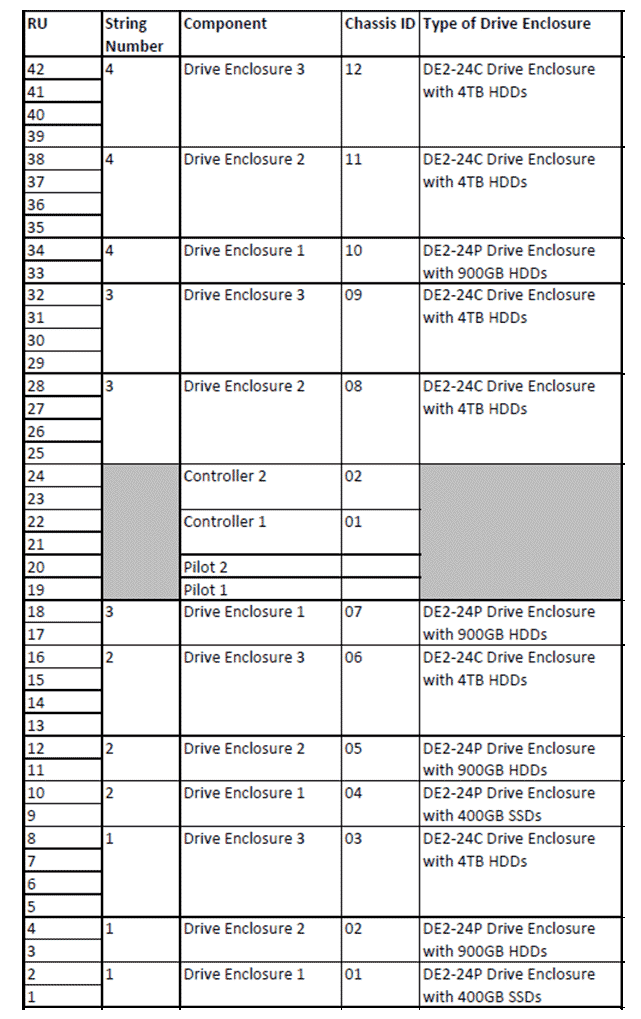

Figure 1 Completed cable planning worksheet
For your planning purposes, you can print the following sample planning worksheet or create a similar planning worksheet.

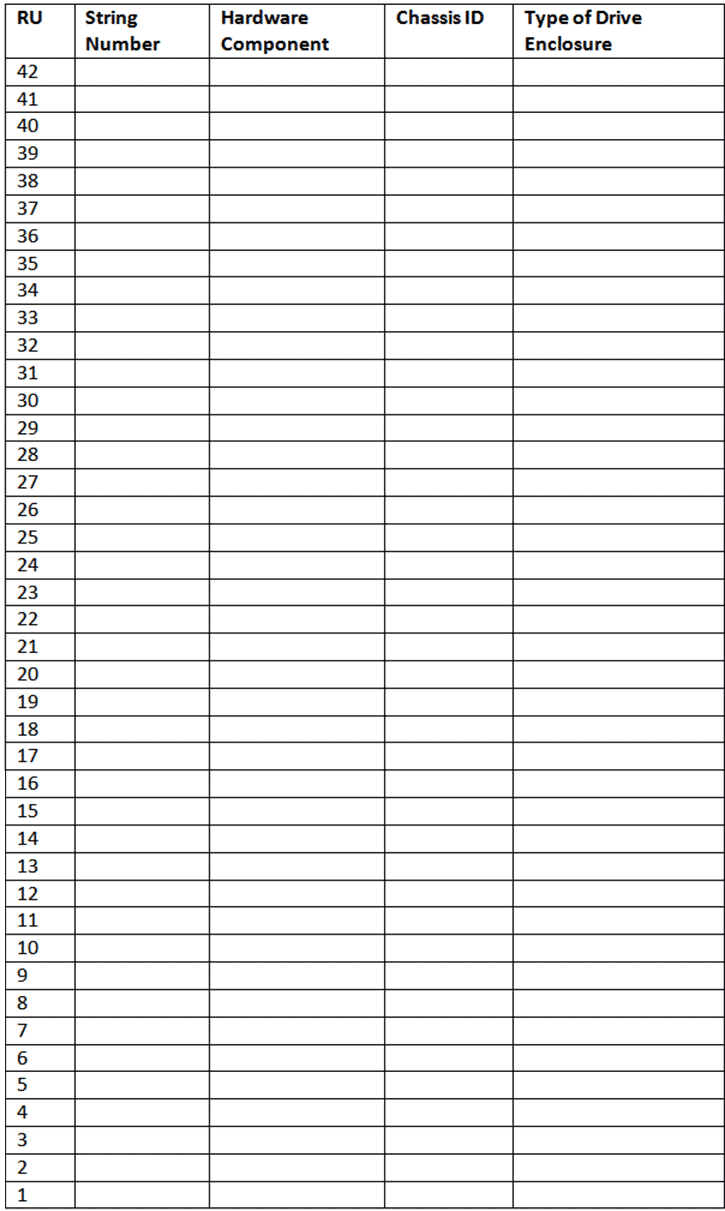

Figure 2 Sample cable planning worksheet
