You can verify the status of an Oracle FS System by using the Oracle Flash Storage Portal web interface on a computer, tablet, or a mobile device that has access to the customer management network.
Note: The Oracle FS System configuration cannot be changed using the Oracle Flash Storage Portal.
- Enter the IP address of the Pilot management interface.

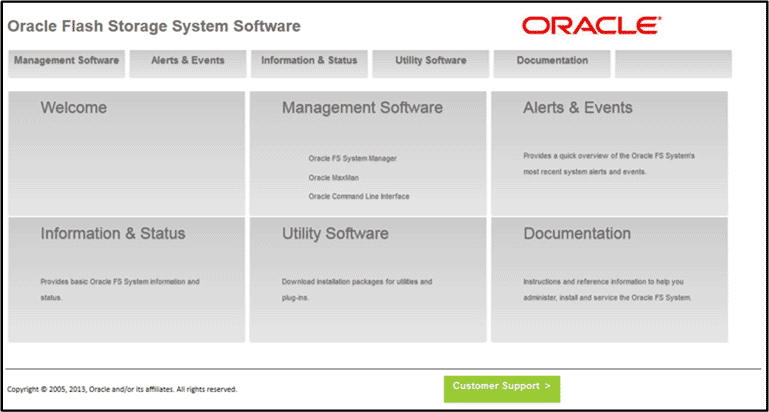

Figure 1 Pilot management interface main screen
Result:The Pilot management interface main screen appears.
- Click Information and Status tab to see the status of the system.
Result:The login prompt appears.
- Log in to the Oracle FS System using a username and password.

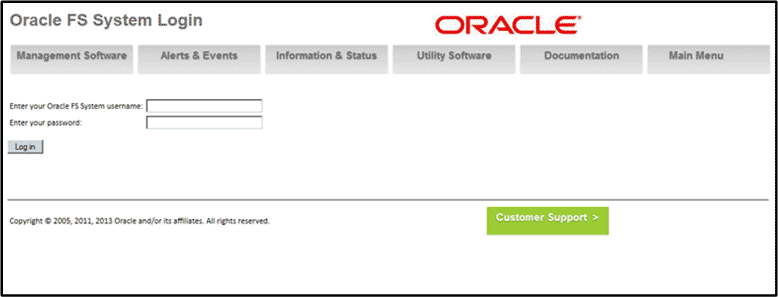

Figure 2 Oracle FS System login screen
Note: You can set the username and password using the Oracle FS System Manager (GUI).
- Review the system status summary.
Result:The system name, the model number, the serial number, the system status, and the version of the installed software are displayed after logging in to the GUI.
- Verify if there are any alerts or recent events for the Oracle FS System by clicking on the Alerts and Events tab.
Result:Current system alerts are displayed at the top of the Alerts and Events Overview page.Note: If any system alerts are displayed, use the Oracle FS System Manager (GUI) to gather more information about the alerts and to manage the alerts.
