The Replication Engine contains several types of ports: Ethernet ports, the Integrated Lights Out Manager (ILOM) port, and the FC ports.
Ethernet ports on a Replication Engine include management ports. Management ports are always located at ETH–0 and ETH–2 on the motherboard.
The optional FC ports on a Replication Engine are always located in PCIe slots 3 and 6.
The Integrated Lights Out Manager (ILOM) port is always located on the motherboard.

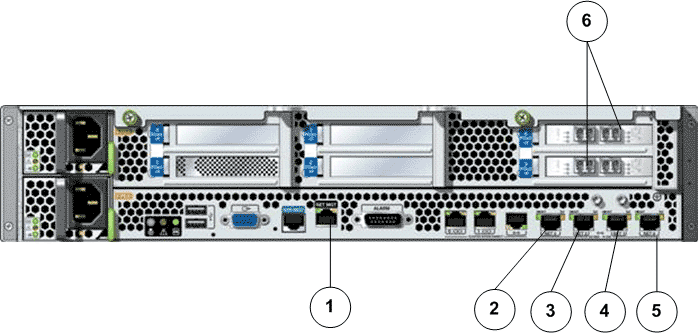

The following figure indicates the location of ports at the back of the Replication Engine:
Figure 1: Replication Engine ports
- Legend
1 Integrated Lights Out Manager (ILOM) port 4 ETH-1 2 ETH-3 5 ETH-0 3 ETH-2 6 FC ports (optional)
The location of other ports in a Replication Engine depends upon the hardware configuration of the specific Replication Engine. Oracle MaxRep for SAN supports an FC configuration.
