The Replication Engine rail kit contains the following parts:
Component and description | Drawing (not to scale) | Quantity |
---|---|---|
Replication Engine inner rails Note: Rails can be used on either side of the Replication Engine.
|
One left-right pair |
|
Replication Engine rail holders or outer rails Note: Rails can be used on either side of the Replication Engine.
|
One left-right pair |
|
M4 X 20 mm wafer head screws |
Two |
|

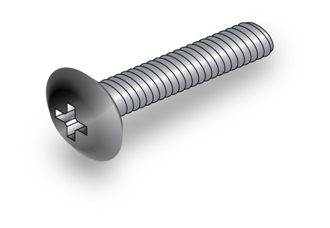

M5 X 20 mm mounting screws |
Eight |
|
10 #–32 X 4 mm — R shoulder screws |
Four |
|
Outer rail guide screws to indicates rack placement |
Four |
|
Thumb screws |
Four |
