Insert a Power Distribution Board (PDB) Cover

  1. Reconnect the PDB flat signal cable and the PSU duct.

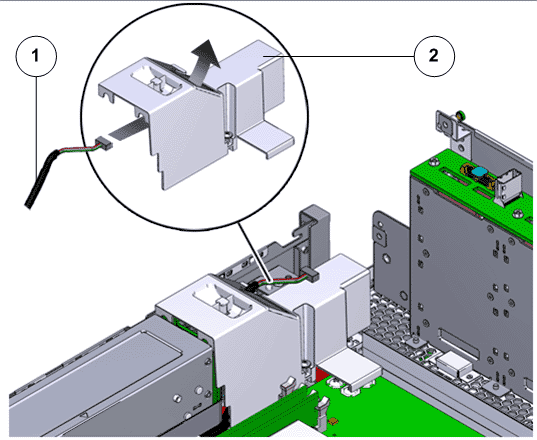

    Figure 1: Reconnect PDB PSU duct

     Reconnect PDB PSU duct
    Legend
    1 Power supply duct
    2 PDB cover
  2. Lower the cover over the PDB and the bus bars.

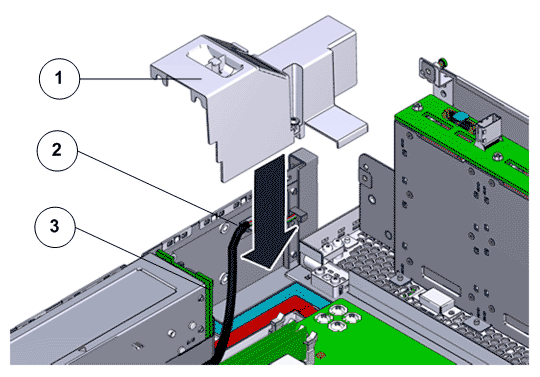

    Figure 2: Install PDB cover

     Install PDB cover
    Legend
    1 PDB cover
    2 Power supply duct
    3 PDB board
  3. Tighten the captive screw to secure the cover to the motherboard and the chassis.

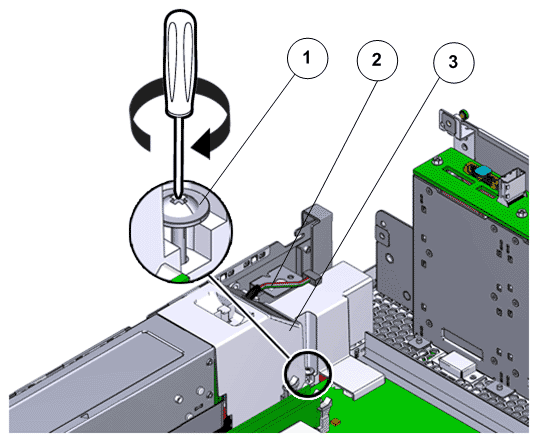

    Figure 3: Secure PDB cover with captive screw

     Secure PDB cover with captive screw
    Legend
    1 PDB captive screw
    2 Power supply duct
    3 PDB cover
