Insert a Power Supply

Unpack the component from its shipping carton.
Note: Place the component on an antistatic mat if it must be set aside for any reason.
Slide the replacement power supply into the power supply compartment at the back of the Replication Engine until it is fully seated.

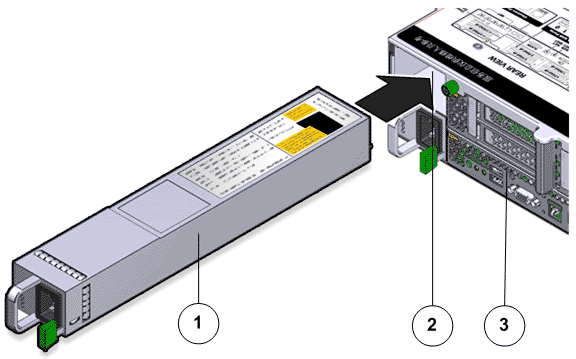

Figure 1: Insert power supply

Legend

1 Power supply

2 Power supply compartment

3 Replication Engine chassis
Listen for an audible click or feel the power supply engage to confirm that the power supply is properly seated.
Note: Repeat for each power supply. Also, replace the power supplies only into the slots from which they had been removed.
