- Disconnect the cable from the cable clamp on the the side wall of the Replication Engine chassis.
- Disconnect the
cable from the motherboard.

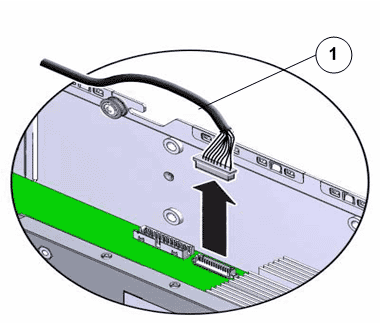

Figure 1: Disconnect the LED alarm assembly cable
- Legend
1 LED alarm assembly cable
- Unscrew the two
Phillips Number 2 screws at the back of the LED alarm assembly that
secure the LED assembly to the Replication Engine front
panel.
Figure 2: Screws to secure the LED alarm assembly
- Legend
1 LED assembly 2 Replication Engine chassis 3 Screws that secure the LED assembly to chassis
Note: The bottom Phillips Number 2 screw is hidden under the slide rail and can be accessed by removing the two rail screws closest to the front of the Replication Engine. Gently pry the slide rail away from the Replication Engine chassis about 1/4 inch. Do not bend the rail while removing the bottom screw. - Gently pull the
LED alarm assembly from the Replication Engine chassis.

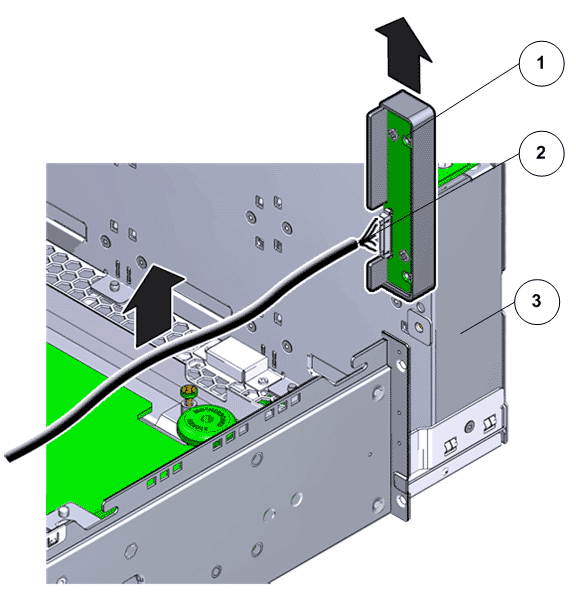

Figure 3: Remove the LED alarm assembly
- Legend
1 LED board 2 LED cable 3 Replication Engine chassis
- Remove the two
screws securing the LED board to the LED assembly.

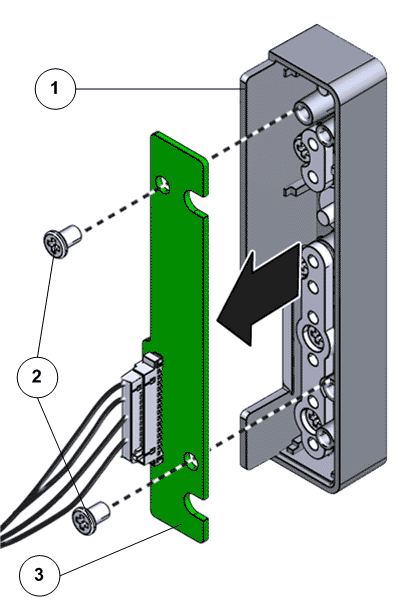

Figure 4: Detach LED board from the LED alarm assembly
- Legend
1 LED alarm assembly 2 Screws securing the LED board to the LED alarm assembly 3 LED board
- Lift the LED board from the LED assembly and set it aside.
