12 "Exchanges Overview" 屏幕

"Exchanges Overview" 屏幕显示与一个或多个交换相关的属性。一个视图用于涉及 StorageTek 企业介质的交换，另一个稍微不同的视图用于 LTO 介质。

交换属性分为以下部分。

• "Title"

• "Exchange Health and Activity"

• "Drive"

• "Media"

• "Library Complex"

• "Enterprise Specific Information"

• "Additional Enterprise Exchange Information"

• "LTO Specific Information"

• "Drive Bay Location"

• "Media Source Location"

• "Media Destination Location"

• "Enterprise Exchange Alerts - Severe"

• "Enterprise Exchange Alerts - Warning"

• "Enterprise Exchange Alerts - Informational"

• "LTO Exchange Alerts - Severe"

• "LTO Exchange Alerts - Warning"

• "LTO Exchange Alerts - Informational"

• "User-Provided Information"

"Exchanges Overview" 详细信息视图

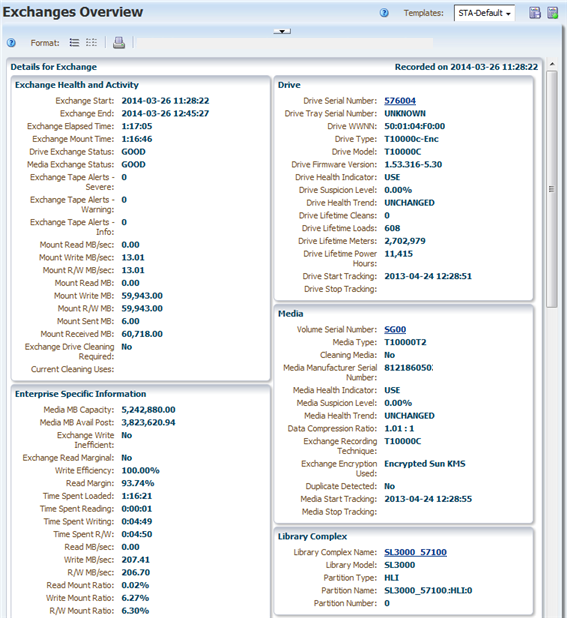

企业介质交换的详细信息（第 1 部分）

对以下插图的说明： ref_libexchenta.png

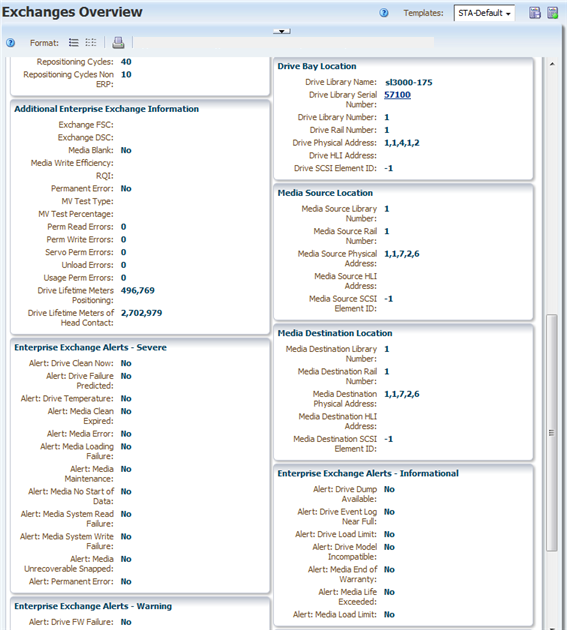

企业介质交换的详细信息（第 2 部分）

对以下插图的说明： ref_libexchentb.png

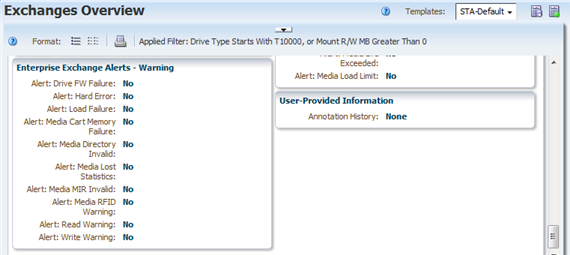

企业介质交换的详细信息（第 3 部分）

对以下插图的说明： ref_libexchentc.png

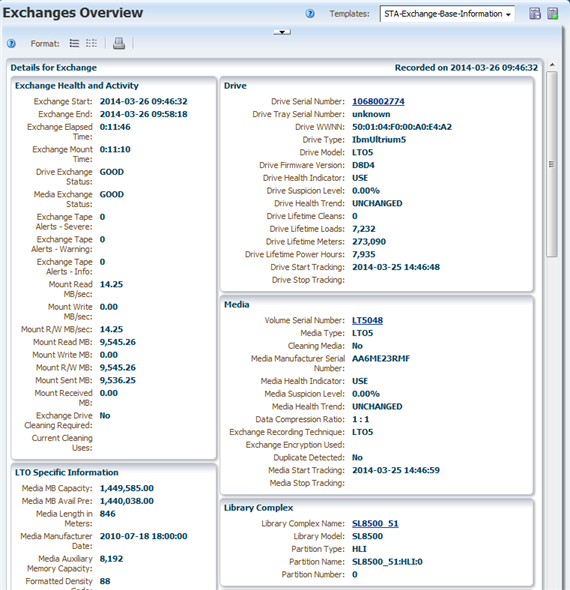

LTO 介质交换的详细信息（第 1 部分）

对以下插图的说明： ref_libexchltoa.png

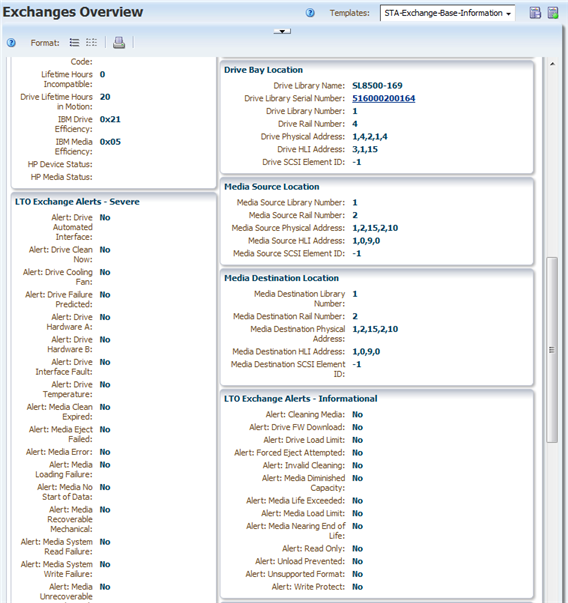

LTO 介质交换的详细信息（第 2 部分）

对以下插图的说明： ref_libexchltob.png

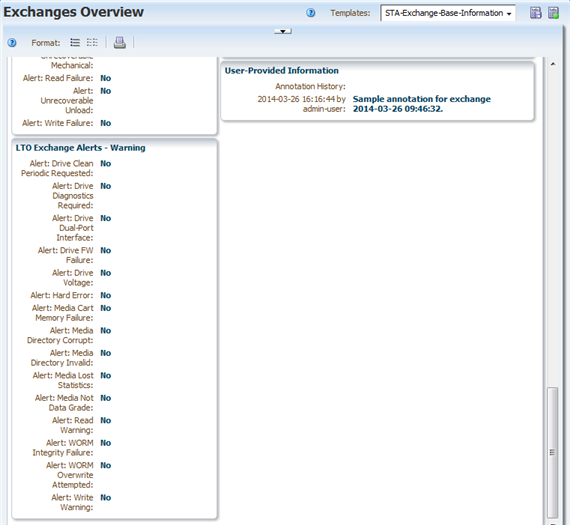

LTO 介质交换的详细信息（第 3 部分）

对以下插图的说明： ref_libexchltoc.png

Title

在交换开始时将为这些属性分配值。

• Recorded on

Exchange Health and Activity

有关交换过程中的介质和磁带机运行状况的详细信息

• Exchange Start

• Exchange End

• Exchange Elapsed Time

• Exchange Mount Time

• Drive Exchange Status

• Media Exchange Status

• Exchange Tape Alerts – Severe

• Exchange Tape Alerts – Warning

• Exchange Tape Alerts – Info

• Mount Read MB/sec

• Mount Write MB/sec

• Mount R/W MB/sec

• Mount Read MB

• Mount Write MB

• Mount R/W MB

• Mount Sent MB

• Mount Received MB

• Exchange Drive Cleaning Required

• Current Cleaning Uses

Drive

有关交换中涉及的磁带机的详细信息。

• Drive Serial Number

• Drive Tray Serial Number

• Drive WWNN

• Drive Type

• Drive Model

• Drive Firmware Version

• Drive Health Indicator

• Drive Suspicion Level

• Drive Health Trend

• Drive Lifetime Cleans

• Drive Lifetime Loads

• Drive Lifetime Meters

• Drive Lifetime Power Hours

• Drive Start Tracking

• Drive Stop Tracking

Media

有关交换中涉及的介质的详细信息。

• Volume Serial Number

• Media Type

• Cleaning Media

• Media Manufacturer Serial Number

• Media Health Indicator

• Media Suspicion Level

• Media Health Trend

• Data Compression Ratio

• Exchange Recording Technique

• Exchange Encryption Used

• Duplicate Detected

• Media Start Tracking

• Media Stop Tracking

Library Complex

有关发生交换的复合磁带库的信息。该信息是截至上次完成的磁带库数据收集的最新信息。

• Library Complex Name

• Library Model

• Partition Type

• Partition Name

• Partition Number

Enterprise Specific Information

交换中涉及的 StorageTek 企业磁带机的特定信息。仅当交换涉及企业磁带机时才显示该信息。

• Media MB Capacity

• Media MB Avail Post

• Exchange Write Inefficient

• Exchange Read Marginal

• Write Efficiency

• Read Margin

• Time Spent Loaded

• Time Spent Reading

• Time Spent Writing

• Time Spent R/W

• Read MB/sec

• Write MB/sec

• R/W MB/sec

• Read Mount Ratio

• Write Mount Ratio

• R/W Mount Ratio

• Repositioning Cycles

• Repositioning Cycles Non ERP

Additional Enterprise Exchange Information

有关交换过程中发生的错误的信息。仅当交换涉及 StorageTek 企业磁带机时才显示该信息。

• Exchange FSC

• Exchange DSC

• Media Blank

• Media Write Efficiency

• RQI

• Permanent Error

• MV Test Type

• MV Test Percentage

• Perm Read Errors

• Perm Write Errors

• Servo Perm Errors

• Unload Errors

• Usage Perm Errors

• Drive Lifetime Meters Positioning

• Drive Lifetime Meters of Head Contact

LTO Specific Information

交换中涉及的 LTO 磁带机的特定信息。仅当交换涉及 LTO 磁带机时才显示。

• Media MB Capacity

• Media MB Avail Pre

• Media Length in Meters

• Media Manufacturer Date

• Media Auxiliary Memory Capacity

• Formatted Density Code

• Lifetime Hours Incompatible

• Drive Lifetime Hours in Motion

• IBM Drive Efficiency

• IBM Media Efficiency

• HP Device Status

• HP Media Status

Drive Bay Location

交换中涉及的磁带机的位置。

• Drive Library Name

• Drive Library Serial Number

• Drive Library Number

• Drive Rail Number

• Drive Physical Address

• Drive HLI Address

• Drive SCSI Element ID

Media Source Location

交换开始时的介质位置；装载发生前一刻所处的位置。可以是介质插槽或磁带机。

• Source Library Number

• Source Rail Number

• Source Physical Address

• Source HLI Address

• Source SCSI Element ID

Media Destination Location

交换完成时的介质位置。这是从磁带机卸载之后立即处于的第一个位置，因此始终在发生交换的同一磁带库中。该位置可以是介质插槽或磁带机。

• Destination Library Number

• Destination Rail Number

• Destination Physical Address

• Destination HLI Address

• Destination SCSI Element ID

Enterprise Exchange Alerts - Severe

有关交换过程中发生的服务器错误的信息。仅为企业磁带机显示此部分。

• Alert: Drive Clean Now

• Alert: Drive Failure Predicted

• Alert: Drive Temperature

• Alert: Media Clean Expired

• Alert: Media Error

• Alert: Media Loading Failure

• Alert: Media Maintenance

• Alert: Media No Start of Data

• Alert: Media System Read Failure

• Alert: Media System Write Failure

• Alert: Media Unrecoverable Snapped

• Alert: Permanent Error

Enterprise Exchange Alerts - Warning

有关交换过程中发生的警告错误的信息。仅为企业磁带机显示此部分。

• Alert: Drive FW Failure

• Alert: Drive Hard Error

• Alert: Media Loading Failure

• Alert: Media Cart Memory Failure

• Alert: Media Directory Invalid

• Alert: Media Lost Statistics

• Alert: MIR Invalid

• Alert: Media RFID Warning

• Alert: Read Warning

• Alert: Write Warning

Enterprise Exchange Alerts - Informational

有关交换过程中发生的信息性错误的信息。仅为企业磁带机显示此部分。

• Alert: Drive Dump Available

• Alert: Drive Event Log Near Full

• Alert: Drive Load Limit

• Alert: Drive Model Incompatible

• Alert: Media End of Warranty

• Alert: Media Life Exceeded

• Alert: Media Load Limit

LTO Exchange Alerts - Severe

有关交换过程中发生的服务器错误的信息。仅为 LTO 磁带机显示此部分。

• Alert: Drive Automated Interface

• Alert: Drive Clean Now

• Alert: Drive Cooling Fan

• Alert: Drive Failure Predicted

• Alert: Drive Hardware A

• Alert: Drive Hardware B

• Alert: Drive Interface Fault

• Alert: Drive Temperature

• Alert: Media Clean Expired

• Alert: Media Eject Failed

• Alert: Media Error

• Alert: Media Loading Failure

• Alert: Media No Start of Data

• Alert: Media Recoverable Mechanical

• Alert: Media System Read Failure

• Alert: Media System Write Failure

• Alert: Media Unrecoverable Mechanical

• Alert: Read Failure

• Alert: Unrecoverable Unload

• Alert: Write Failure

LTO Exchange Alerts - Warning

有关交换过程中发生的信息性错误的信息。仅为 LTO 磁带机显示此部分。

• Alert: Drive Clean Periodic Requested

• Alert: Drive Diagnostics Required

• Alert: Drive Dual-Port Interface

• Alert: Drive FW Failure

• Alert: Drive Voltage

• Alert: Drive Hard Error

• Alert: Media Cart Memory Failure

• Alert: Media Directory Corrupt

• Alert: Media Directory Invalid

• Alert: Media Lost Statistics

• Alert: Media Not Data Grade

• Alert: Read Warning

• Alert: WORM Integrity Failure

• Alert: WORM Overwrite Attempted

• Alert: Write Warning

LTO Exchange Alerts - Informational

有关交换过程中发生的信息性错误的信息。仅为 LTO 磁带机显示此部分。

• Alert: Cleaning Media

• Alert: Drive FW Download

• Alert: Drive Load Limit

• Alert: Forced Eject Attempted

• Alert: Invalid Cleaning

• Alert: Media Diminished Capacity

• Alert: Media Life Exceeded

• Alert: Media Load Limit

• Alert: Media Nearing End of Life

• Alert: Read Only

• Alert: Unload Prevented

• Alert: Unsupported Format

• Alert: Write Protect

User-Provided Information

• Annotation History
