Within PMF Summary Screen UI

Using Test Workflow

Testing Process Flow option is used to check whether the Process flow you designed works as expected.

1.      From the Process Modeller window, click  corresponding to the Pipeline you want to test. The Sub menu is displayed.

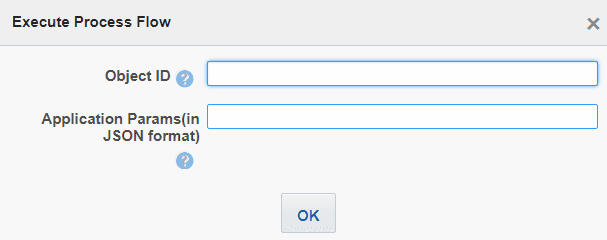

2.     Click Test Process Flow. The Execute Process Flow window is displayed.

3.     Enter an Object ID to identify the Process flow. This will be displayed as Entity ID in the Process Monitor window.

4.    Enter the Application Parameters which are required in the Process flow that you are testing. Specify parameters in JSON format. This is an optional field.

For example, {"WF_RUNSK":"15","WF_MISDATE":"12/31/1999"}

5.     Click OK.

Using Execute Run

See Executing Run Pipeline section on how to invoke a Run pipeline from the PMF screen.
