15 Managing Workflow

This chapter includes the following:

15.1 About Workflow

  • Route changes automatically to the users who need to approve or observe the change.

  • Send mail alerts automatically to approvers and observers to notify them that a change has been routed to them.

  • Approve or reject changes online.

  • Attach comments to changes.

Agile has electronic routing, Notification, and signoff capabilities, thus automating the change control process and providing a simplified but powerful Workflow mechanism. With these Workflow features, you can

15.2 The Change Control Process

The change control process can vary for each Workflow defined for a routable object. The table below lists the sequences for the default Work flows for each type of routable object. For changes the first four steps in the sequence are identical and only the final step is different.

Table 15-1 Workflow default sequences for routable objects

Workflow Default sequence

Default Activities

Not Started > In Process > Complete

Default Attachments

Review

Default Audits

Prepared > Initiated > Audited > Issued > Corrected > Validated > Closed

Default CAP As

Identified > Acknowledged > Investigated > Implemented > Validated > Closed

Default Change Orders

Pending > Submitted > CCB > Released > Implemented

Default Change Requests

Pending > Submitted > CCB > Released > Closed

Default CT Os

Pending> Review > Released > Complete

Default Declarations

Pending > Open to Supplier > Submit to Manager > Review > Released > Implemented

Default Deviations

Pending > Submitted > CCB > Released > Expired

Default Gates

Closed > In Review > Open

Default Manufacturer Orders

Pending > Submitted > CCB > Released > First Article Complete

Default Non-Conformance Reports

Pending > Submitted > Review > Released > Closed

Default Packages

Pending > Submitted > Review > Accepted > Closed

Default Price Change Orders

Pending > Submitted > Price Review > Released > Implemented

Default Problem Reports

Pending > Submitted > Review > Released > Closed

Default Sites Change Orders

Pending > Submitted > CCB > Released > Implemented

Default Stop Ships

Pending > Submitted > CCB > Released > Resumed


15.3 Dynamics of Workflow Functionality

The Workflow functionality available to each user for a particular routable object depends on the status of the routable object and the user's privileges. Your Agile API program should take these Workflow dynamics into account and, where possible, adjust your program accordingly.

15.3.1 How the Status of a Change Affects Workflow Functionality

The Workflow actions available for a pending change are different from those for a released change. To check the status of a change to determine whether it's pending or released, use the IRoutable.getStatus() method. The getStatus() method returns an IStatus object for the Workflow status. IStatus extends the IStatus interface and provides helpful methods for working with status nodes. The following example shows how to use getStatus() to determine whether a change is released.

Example 15-1 Getting the status of a change object

IChange change = (IChange)session.getObject(IChange.OBJECT_TYPE, "C00008");System.out.println(change.getStatus())

Example 15-2 Getting status of a change object and comparing it to a status type

private static boolean isReleased(IChange change) throws APIException {   return (change.getStatus().getStatusType().      equals(StatusConstants.TYPE_RELEASED);}

15.3.2 How User Privileges Affect Workflow Functionality

Agile privileges determine the types of Workflow actions a user can perform on a change. The Agile system administrator assigns roles and privileges to each user. The table below lists privileges needed to perform Workflow actions.

Table 15-2 Agile privileges and related Workflow APIs

Privilege Related API

Change Status

IRoutable.changeStatus()

Comment

IRoutable.comment()

Send

DataObject.send()


To determine at run time whether a user has the appropriate privileges to perform an action, use the IUser.hasPrivilege() method. You can adjust your program's UI based on the user's privileges. The following example shows how to check whether a user has the privilege to change the status of a change before calling the IRoutable.changeStatus() method.

Example 15-3 Checking the privileges of a user before changing the status of a change

private void goToNextStatus(IChange change, IUser user) throws APIException {

// Check if the user can change status
   if(user.hasPrivilege(UserConstants.PRIV_CHANGESTATUS, change)) {
    List<?> approvers = Arrays.asList(user);
    IStatus nextStatus = change.getDefaultNextStatus();
    change.changeStatus(nextStatus, true, "", true, true,
    null, approvers, null, null, false);
   } else {
   System.out.println("Insufficient privileges to change status.");
   }
}

15.4 Selecting a Workflow

When you create a new change, package, product service request, or quality change order, you must select a Workflow. Otherwise, the object is in an unassigned state and cannot progress through a Workflow process. Your Agile system can have multiple Workflows defined for each type of routable object. To retrieve the valid Workflows for an object, use the IRoutable.getWorkflows() method. If a routable object has not been assigned a Workflow yet, you can use the IRoutable.getWorkflows() method to select a Workflow.

As long as a change is in the Pending status, you can select a different Workflow. Once a change moves beyond the Pending status, you can't change the Workflow.

Example 15-4 Selecting a Workflow

private static IWorkflow addWorkflow(IChange change) throws APIException {       IWorkflow[] wfs = change.getWorkflows();                 IWorkflow   workflow = null;                     for (int i = 0; i < wfs.length; i++) {                   if (wfs[i].getName().equals("Default Change Orders"))                           workflow = wfs[i];                   }                change.setWorkflow(workflow);                   return workflow;}

If a change is still in the Pending status type, you can deselect a Workflow to make the change ”unassigned.” To make a change unassigned, use IRoutable.setWorkflow() and specify null for the Workflow parameter.

Example 15-5 Making a change unassigned

private void unassign(IChange change) throws APIException {
   change.setWorkflow(null);
}

15.5 Adding and Removing Approvers

After a change is routed and the online approval process is initiated, it is sometimes necessary to add or remove people from the list of approvers or observers. To add or remove approvers or observers, a user must have the Route privilege.

There is no need to load the Workflow table to modify the list of approvers. Once you have a routable object, such as an ECO, you can modify its list of approvers using the IRoutable.addApprovers() and IRoutable.removeApprovers() methods. When you use addApprovers() or removeApprovers(), you specify the lists of approvers and observers, whether the Notification is urgent, and an optional comment. The Agile API provides overloaded addApprovers() and removeApprovers() methods for adding or removing a user or a user group from the list of approvers. For more information, refer to API Reference files at Oracle® E-Cloud Web site (http://edelivery.oracle.com/). These files are available and accessible from http://edelivery.oracle.com, after installing the Agile SDK. See Figure 15-1.

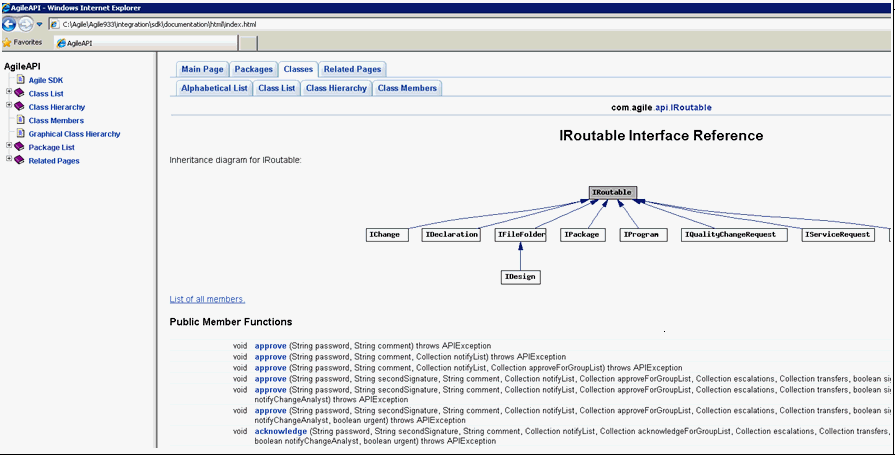

Figure 15-1 API reference files

Surrounding text describes Figure 15-1 .

If a user that you select as an approver or observer, do not have appropriate privileges to view a change, your program throws an APIException. To avoid the possible exception, check the privileges of each user before adding him to the approvers or observers list.

The following example shows how to add and remove approvers for a change.

Example 15-6 Adding and removing approvers and observers

public void modifyApprovers(IChange change) {try {// Get current approvers for the change   IDataObject[] currApprovers = change.getApproversEx(change.getStatus());

// Get current observers for the change   IDataObject[] currObservers = change.getObserversEx(change.getStatus());

// Add hhawkes to approvers   IUser user = (IUser)m_session.getObject(IUser.OBJECT_TYPE, "hhawkes");   IUser[] approvers = new IUser[]{user};

// Add flang to observers   user = (IUser)m_session.getObject(IUser.OBJECT_TYPE, "flang");   IUser[] observers = new IUser[]{user};

// Add approvers and observers   change.addApprovers(change.getStatus(), approvers, observers, true,      "Adding hhawkes to approvers and flang to observers");

// Add skubrick to approvers   user = (IUser)m_session.getObject(IUser.OBJECT_TYPE, "skubrick");      approvers[0] = user;

// Add kwong to observers
user = (IUser)m_session.getObject(IUser.OBJECT_TYPE, "kwong");observers[0] = user;

// Remove skubrick from approvers and kwong from observers   change.removeApprovers(change.getStatus(), approvers, observers,   "Removing skubrick from approvers and kwong from observers");   } catch (APIException ex) {      System.out.println(ex);      }   }

If you want to modify only the list of approvers or the list of observers for a change, you can pass a null value for the parameter you don't want to change. The following example shows how to add the current user to the approvers list without changing the list of observers.

Example 15-7 Adding approvers without changing observers

public void addMeToApprovers(IChange change) {

// Get the current user
   try {      IUser user = m_session.getCurrentUser();

// Add the current user to the approvers list for the change   IUser[] approvers = new IUser[]{user};      change.addApprovers(change.getStatus(), approvers, null, true,         "Adding current user to approvers list");   } catch (APIException ex) {      System.out.println(ex);   }}

If you want to modify only the list of approvers or the list of observers for a change, you can pass a null value for the parameter you don't want to change. Example 15-7 adds current users to the list of approvers without changing this list.

15.5.1 Approving or Rejecting Change

After a change is routed to a group of approvers, the online approval process begins. Users listed in the Workflow table for a change can approve or reject the change.

When you approve a change, the Agile system records the approval on the Workflow table. When all approvers have approved the change, the system sends an email Notification to the change analyst or component engineer indicating that the change is ready to be released.


Note:

To approve or reject a change, users must have the correct privileges. For more information, refer to Agile PLM Administrator Guide.

When you use the IRoutable.approve() method, specify the user's approval password and an optional comment. The approve() methods enable you to specify a Notification list and a collection of user groups for which you are approving.

After installing the Agile SDK, API Reference files, shown in Figure 15-1, "API reference files" are available and accessible from the Oracle® E-Cloud Web site at http://edelivery.oracle.com. You can locate and download the void approve (String, Collection) throws APIException method from this site.

Following paragraphs document approving or rejecting a given routable object. APIs that support approving or rejecting a change object when a second signature is required are described in detail in Setting the ”Signoff User Dual Identification” Preference.

Example 15-8

public void approveChange(IChange change){   try {        change.approve("agile","", "Looks good to me",
              null, null, null, null, false, false, false, false, false);   } catch (APIException ex) {         System.out.println(ex);   }

To download SDK's approve and reject methods, locate the IRoutable Interface Reference from http://edelivery.oracle.com and then look for these methods under "Public Member Functions." See "IRoutable Approve and Reject methods."

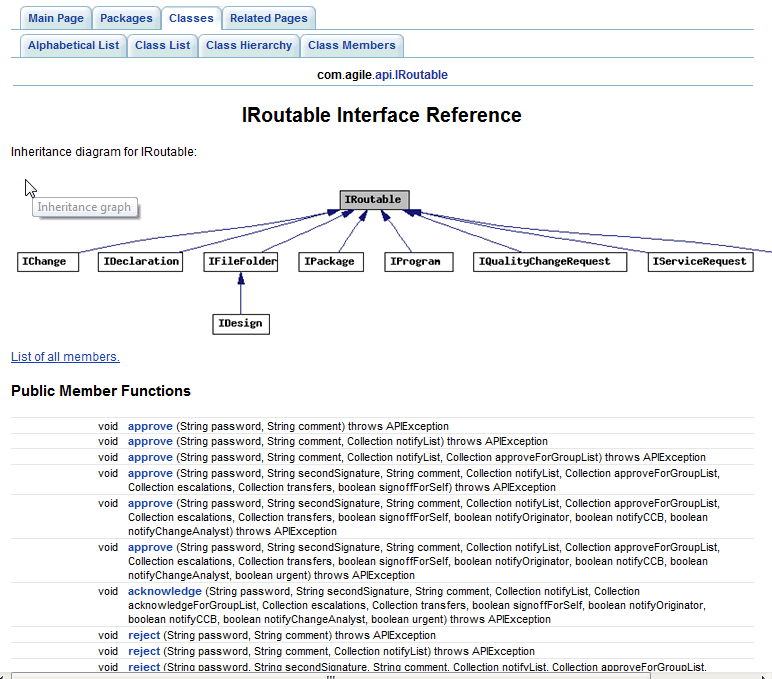

Figure 15-2 IRoutable Approve and Reject methods

Surrounding text describes Figure 15-2 .

If a change has a fundamental flaw, users listed on the Workflow table may reject it. When you reject a change, the system records the rejection on the Workflow tab for the change and sends an email Notification to the change analyst or component engineer. The change analyst or component engineer may decide to return the rejected change to the originator, thus reverting its status to Pending.

When you use the IRoutable.reject() method, you must specify the userNotifications approval password and optional comments. An overloaded reject() method enables specifying a Notification list and a collection of user groups for which you're approving. For more information and additional examples similar to Figure 15-2, refer to the API Reference files at Oracle® E-Cloud Web site (http://edelivery.oracle.com/).

The following example shows how to reject a change.

Example 15-9 Rejecting a change

public void rejectChange(IChange change) {   try {
       change.reject("agile","", "Looks good to me",
       null, null, null, null, false, false, false, false, false);
   } catch (APIException ex) {
System.out.println(ex);
   }
}

15.5.2 Approving or Rejecting a Change Without Password

Agile PLM's Java Client provides the option to configure Workflow Settings to enable the approval or rejection of a change with or without typing a password. Users with the Administrator role and privileges configure this option by selecting the Yes or No option in the Password Required field.

The following example uses the Agile SDK to programmatically configure this requirement.

Example 15-10 Approving or rejecting change without a password

IAdmin admin = session.getAdminInstance();
INode root = admin.getNode(NodeConstants.NODE_AGILE_WORKFLOWS);
INode CCBStatus =
         (INode)root.getChildNode("Default Change
              Orders/Status List/CCB/Status Properties");
IProperty PwdReq =
         CCBStatus.getProperty(PropertyConstants.PROP_WORKFLOW_PASSWORD_REQUIRED);
IAgileList value = (IAgileList)PwdReq.getAvailableValues();
value.setSelection(new Object[] {"Approve Only"});
PwdReq.setValue(value);

// Approve change without passing password
change.approve(null, null, "Looks good to me", null, null, null, null, false, false, false, false, false);

15.5.3 Commenting a Change

When you comment a change, you send a comment to other CCB reviewers during the online approval process. In addition to the comment, you can specify whether to notify the originator, the change analyst, and the change control board. An overloaded comment() method allows you to specify a Notification list. For more information, similar to refer to the API Reference files at Oracle® E-Cloud Web site (http://edelivery.oracle.com/).

The following example shows how to comment a change.

Example 15-11 Commenting a change

public void commentChange(IChange change) {   try {      change.comment(true, true, true, "Change flagged for transfer to ERP.");   } catch (APIException ex) {      System.out.println(ex);   }}

15.5.4 Auditing a Change

At any point in a change's workflow, you can audit it to determine if any required entry cells are not completed or if the change violates any Agile Smart Rules. When you use the IRoutable.audit() method, the method returns a Map object containing ICell objects as keys and a List of APIException objects as values. The ICell key can be null if there are no problems with the change. The APIException object describes a problem with the associated entry cell.

The Map object returned by the audit() method may also contain null objects as keys. The APIException object associated with a null object describes a problem unrelated to data cells.

The following example shows how to audit a change.

Example 15-12 Auditing a change

public void auditChange(IChange change) {   try {

// Audit the release   Map results = change.audit();

// Get the set view of the map   Set set = results.entrySet();
// Get an iterator for the set   Iterator it = set.iterator();

// Iterate through the cells and print each cell name and exception   while (it.hasNext()) {      Map.Entry entry = (Map.Entry)it.next();      ICell cell = (ICell)entry.getKey();   if(cell != null) {      System.out.println("Cell : " + cell.getName());   }
   else {      System.out.println("Cell : No associated data cell");   }

//Iterate through exceptions for each map entry.//(There can be multiple exceptions for each data cell.)   Iterator jt = ((Collection)entry.getValue()).iterator();      while (jt.hasNext()) {        APIException e = (APIException)jt.next();        System.out.println("Exception : " + e.getMessage());      }   }} catch (APIException ex) {
    System.out.println(ex);   }}

15.5.5 Changing the Workflow Status of an Object

The IRouteable.changeStatus() method is a general purpose method for changing the status of an Agile object. For example, you can use changeStatus() to submit, release, or cancel a change. In instances such as failed audits, it throws the compound exception ExceptionConstants.API_SEE_MULTIPLE_ROOT_CAUSES. You can disable this exception by modifying the code that caught the exception. See the example below.

Example 15-13 Throwing compound exceptions

while (true) {   try {      change.changeStatus(   wf.getStates(expectStatus)[0],   false,   "comment",   false,   false,   null,   null,   null,   false);   } catch (APIException ae) {      try {         if            (ae.getErrorCode().equals
               (ExceptionConstants.API_SEE_MULTIPLE_ROOT_CAUSES)){                  Throwable[] causes = ae.getRootCauses();                  for (int i = 0; i < causes.length; i++) {                       m_session.disableWarning(                       (Integer)((APIException)causes[i]).getErrorCode());                       }                  } else {                     m_session.disableWarning((Integer)ae.getErrorCode());                  }               } catch (Exception e) {                  throw ae;               }               continue;      }      break;}

In general, you release a change after it is signed off by CCB members. In addition to modifying the status of a change, you can also use changeStatus() to specify a Notification list, optional comments, and whether to notify the originator and change control board.


Note:

To use the default Notification list for the Workflow status, specify a null value. To indicate that no users should be notified, specify an empty array.

Depending on the overloaded changeStatus() method you use, the notifyList parameter is an array of IUser or IUserGroup objects that you must notify about the change in status. For more information, refer to the API Reference files at Oracle® E-Cloud Web site (http://edelivery.oracle.com/), navigate to IRoutable Interface Reference, and these methods are listed under Public Member Functions. In this case, point to and select the IUser. The Public Member Functions of this interface is shown in Part .

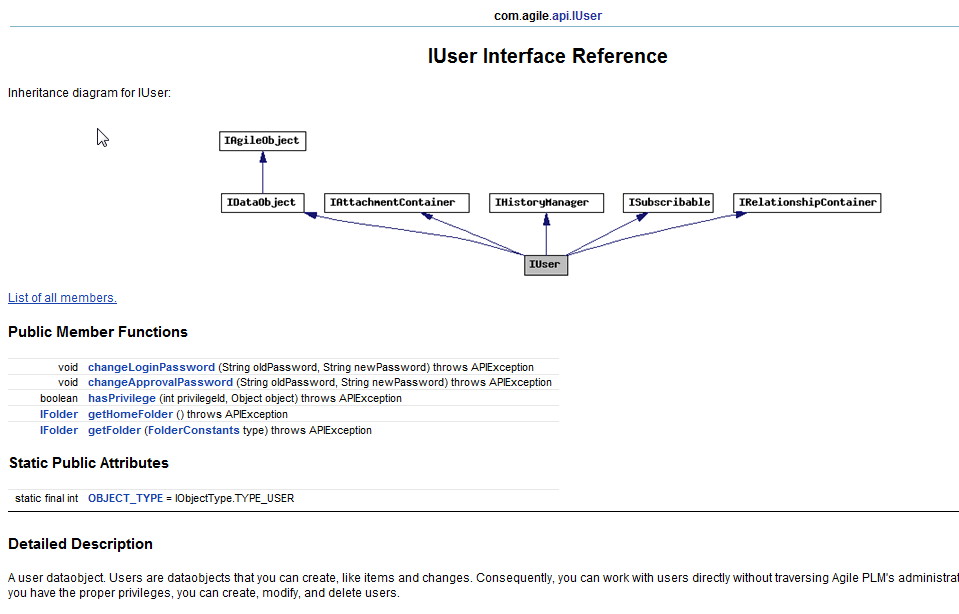

Figure 15-3 Member Functions of the IUser Interface

Surrounding text describes Figure 15-3 .

For both the approvers and observers parameters of the changeStatus() method, you must explicitly pass an array of users or user groups. If you pass null, no approvers or observers are used. To get the default approvers and observers for a particular Workflow status, use getApproversEx() and getObserversEx(), respectively.

The following example shows how to check the Workflow status of a change.

Example 15-14 Checking the status of a change

void checkStatus(IChange change) {   try {// Get current workflow status (an IStatus object)   IStatus status = change.getStatus();      System.out.println("Status name = " + status.getName());

// Get next available Workflow statuses   IStatus[] nextStatuses = change.getNextStatuses();   for (int i = 0; i < nextStatuses.length; i++) {      System.out.println("nextStatuses[" + i +"] = " +      nextStatuses[i].getName());   }

// Get next default Workflow status   IStatus nextDefStatus = change.getDefaultNextStatus();      System.out.println("Next default status = " + nextDefStatus.getName());   } catch (APIException ex) {      System.out.println(ex);   }}

The following example shows how to use the default approvers and observers when you change the status of a routable object.

Example 15-15 Changing the status and routing to the default approvers and observers

public void changeToDefaultNextStatus(IChange change) throws APIException {
// Get the next status of the change
IStatus nextStatus = change.getDefaultNextStatus();

// Get default approvers for the next status
ISignoffReviewer[] defaultApprovers =
      change.getReviewers(nextStatus, WorkflowConstants.USER_APPROVER);
List<ISignoffReviewer> approverList =
      Arrays.asList(defaultApprovers);

// Get default observers for the next status
ISignoffReviewer[] defaultObservers =
      change.getReviewers(nextStatus, WorkflowConstants.USER_OBSERVER);
List<ISignoffReviewer> observerList =
      Arrays.asList(defaultObservers);

// Change to the next status
change.changeStatus(nextStatus, false, "", false, false, null, approverList, observerList, null, false);
}

15.5.6 Sending an Agile Object to Selected Users

You can send any Agile object to a selected group of users. When you send an object, such as an ECO, there is no signoff required. The selected recipients receive an email message with an attached link to the object. When you use the IDataObject.send() method, you can specify an array of Agile users and an optional comment. Unlike other Workflow commands, the send() method is not limited to routable objects. You can use it to send any type of Agile dataobject, including an item.

The following example sends an object to all users.

Example 15-16 Sending an Agile object to selected users

public static void sendToAll(IDataObject object) {

        // Get all user groups     try {    IQuery q =
    (IQuery)session.createObject(IQuery.OBJECT_TYPE, "select * from [UserGroup]");         ArrayList usergroupList = new ArrayList();          Iterator i = q.execute().getReferentIterator();  while (i.hasNext()) {       usergroupList.add(i.next());    }        IUserGroup[] group = new IUserGroup[usergroupList.size()];   System.arraycopy(usergroupList.toArray(), 0, group, 0, usergroupList.size());

        // Send the object to all user groups   object.send(group, "Please read this important document.");     } catch (APIException ex) {       System.out.println(ex);  }}

15.5.7 Sending an Agile Object to User Groups

You can send an Agile change object or an item object to a user group. When you send an object, such as an ECO, there is no signoff required. The selected recipients receive an email message with an attached link to the object. When you use the IDataObject.send(IDataObject[] to String Comment) method, you can specify an array of Agile User Groups and an optional comment. The IDataObject parent interface represents the IUserGroup Agile object. Unlike other Workflow commands, the send() method is not limited to routable objects. You can use it to send any type of Agile dataobject, including an item.

The following example shows how to send an object to all User Groups.

Example 15-17 Sending an Agile object to selected user groups

public static void sendToAll(IDataObject object) {
        // Get all user groups
   try {
    IQuery q =
      (IQuery)session.createObject(IQuery.OBJECT_TYPE, "select * from         [UserGroup]");      ArrayList usergroupList = new ArrayList();
           Iterator i = q.execute().getReferentIterator();
           while (i.hasNext()) {
       usergroupList.add(i.next());
   }
   IUserGroup[] group = new IUserGroup[usergroupList.size()];
   System.arraycopy(usergroupList.toArray(), 0, group, 0, usergroupList.size());

        // Send the object to all user groups
           object.send(group, "Please read this important document.");
   } catch (APIException ex) {
    System.out.println(ex);
   }
}

15.6 Managing Functional Teams

The Functional Team feature streamlines the approval process by eliminating the need to update the list and roles of workflow approvers (the approval ”criteria”). This is achieved by enabling the workflow process to create a Workflow Template and assign users to workflow actions. Users are then linked to the job functions they perform. Job functions and users are linked together to form the Functional Teams. These Functional Teams are added to routable objects and when they are routed through the workflow, the combination of Functional Team, Workflow Criteria, and the Approval Template determine which user performs the required workflow action.

15.6.1 Job Functions, Functional Teams, and Workflow Actions

You can use the SDK to eliminate updating the approval criteria in the event of a change in the approval criteria by defining the following Workflow-related objects and attributes:

  • Job Function - The job performed by a user. Examples are product manager, product marketing manager, development lead, development manager, and so on.

  • Functional Team - Group of users and/or user groups who work as a team to perform specific job functions. Logically, a Functional Team is a Job Function and not a User, because a Job Function can be associated with a Functional Team without any Users, but a User can not be added to a Functional Team without an assigned Job Function.

  • Reviewers - Based on the role, a Reviewer can be an Approver, an Acknowledger, or an Observer. A user can have more than one Reviewer role.


    Note:

    Users can have more than one Reviewer role, but they cannot be Acknowledgers, Observers and/or Approvers.

    • Observers - A workflow action that requires the notified users to signoff when notified. Observers can be Users, User Groups or Functional Teams.

    • Acknowledgers - A workflow action that requires the notified users to signoff the change they have approved. This is different from an approval signoff. Acknowledgers can be Users, User Groups or Functional Teams.

    • Approvers - An approvers can sign -off for multiple job functions. Approvers can be Users, User Groups or Functional Teams.

15.6.2 Creating a Functional Team

Functional Teams are uniquely identified by name and they are a class under the User Group Base Class with the Functional Team as the default sub class. Creating a Functional Team object is similar to creating any Agile object. To create a Functional Team, use the IAgileSession.createObject method, specifying both the class and the name of the Team.

All users cannot create a Functional Team. Only users who have the Create privilege for this object can create Functional Teams.

Example 15-18 Creating a Functional Team

IAgileClass ft_class =
      session.getAdminInstance().getAgileClass("Functional Team");HashMap<Integer, String> map = new HashMap<Integer, String>();

//Put values into map   map.put(UserGroupConstants.ATT_GENERAL_INFO_NAME, "PGC");  map.put(UserGroupConstants.ATT_GENERAL_INFO_DESCRIPTION, "PGC Functional Team");  IDataObject FtObj = (IDataObject)session.getObject(UserGroupConstants.CLASS_     FUNCTIONAL_TEAM, map);   if (FtObj == null){

// Create Functional Team with this Map //  FtObj = (IDataObject)session.createObject(ft_class, map);}

Functional Teams is a class under User Group Base Class having out of the box sub class 'Functional Team'. Creating Functional Team object is similar to creating any Agile object as detailed below:

15.6.3 Managing Timesheets

PPM has the capability to manage the following Timesheet-related functions from the Web Client. The SDK enables performing the functions programmatically, by exposing the ITimesheetManager.

  • Retrieving tasks a user can report time against - This feature enables retrieving the Web Client's Timesheet view and the list of tasks the user can report time against programmatically.

  • Logging or modifying time reported for a user on a task - Similar to the Web Client, this feature supports logging or modifying time by day or activity for the user.

  • Retrieving hours for a user or activity - This feature enables searching and retrieving hours for a user, an activity, a project, the date in between, and Canceled and Soft-Deleted activities. Results are provided as CSV or XLS similar to the UI


Important:

As the SDK developer, you must have the proper privileges to perform Timesheet-related tasks.

15.6.3.1 Retrieving Tasks Users Can Log Time Against

As the SDK developer with proper privileges, you can retrieve Timesheet records that display activities against which users can log time worked. The ITimesheetManager API returns the Timesheet table listing input dates for the week as shown the following example.

Function: ITimesheetManager:: retrieveTimesheet(Date selectedDate)

Example 15-19 Retrieving Timesheet table with week's input dates

//connect to Agile Server   IAgileSession ses = connect();   ITimesheetManager timesheetManager = (ITimesheetManager)    ses.getManager(ITimesheetManager.class);   Calendar cal = new GregorianCalendar(TimeZone.getTimeZone("GMT"));   cal.set(Calendar.YEAR, 2013);   cal.set(Calendar.MONTH, 2);   cal.set(Calendar.DAY_OF_MONTH, 27);// Retrieve a list of tasks the user can report time against   ITable result = timesheetManager.retrieveTimesheet(cal);

15.6.3.2 Logging or Modifying the Reported Time for a User on a Task

After retrieving a Timesheet, the user can log or modify hours for the activity in the returned Timesheet records.

Function: ITimesheetManager:: logOrChangeTimesheet(ITable tsTable)

You can find detailed sample codes for logOrChangeTimesheet() in samples\api\LogOrChangeTimesheet, accessible from "Client-Side Components."

15.6.3.3 Retrieving Hours for a Given User or Activity

This API enables searching the Timesheet by User, Project, Date Between, as well as Canceled and Soft-Deleted Activities. The search result table is exported as a CSV or XLS file to the specified device.

Function: ITimesheetManager:: exportSearchedTimesheet (Map params)

You can find detailed sample codes for exportSearchedTimesheet() in samples\api\exportSearchedTimesheet, accessible from "Client-Side Components."

15.6.4 Creating a Job Functions Table

A Functional Team object contains a valid Job function and associated members such as users, user groups, and so on, in its Job Functions Table.

Example 15-20 Creating a Job Functions Table

//get Job Functions Table of the Functional Team Object   ITable jobFuncTbl=FtObj.getTable(UserGroupConstants.TABLE_JOBFUNCTION);   IDataObject usr0 =
      (IDataObject) session.getObject(UserConstants.CLASS_USER, "usr01");   IDataObject usr1 =
      (IDataObject) session.getObject(UserConstants.CLASS_USER, "usr02");   IDataObject uGp0 =
      (IDataObject) session.getObject
         (UserGroupConstants.CLASS_USER_GROUP, "usrGroup01");   IRow ft_jf_row;   try{      map.clear();      map.put(UserGroupConstants.ATT_JOB_FUNCTION_NAME, "Developer");
      //a valid value from 'Job Functioins' list      map.put(UserGroupConstants.
         ATT_JOB_FUNCTION_USERS_USERGROUPS, new Object[] {usr0, usr1, uGp0});   ft_jf_row = jobFuncTbl.createRow(map);      map.clear();      map.put(UserGroupConstants.ATT_JOB_FUNCTION_NAME, "Product Manager");
      //a valid value from 'Job Functioins' list      map.put(UserGroupConstants.
         ATT_JOB_FUNCTION_USERS_USERGROUPS, new Object[] {usr1, uGp0});   ft_jf_row = jobFuncTbl.createRow(map);   }catch(APIException e){      System.out.println(e.getRootCause());   }

15.6.5 Adding a Discussion to a Functional Team

Discussions are integrated into the Product Portfolio Management solution, and are also applicable to the Product Cost Management solution. Discussions are created similar to other Agile PLM objects. Discussions are always viewed in the Web Client. To access a discussion while using Java Client, you can search to locate an existing discussion and open the object, which will open the Web Client. Also, you can open the Web Client and proceed from there to create a discussions.


Note:

Discussions, Action Items, and News is a subset of Activity-specific subscription events that only apply to Product Portfolio Management and users can subscribe to actions related to Discussions, Action Items, and News.

The following example adds a Discussion to a Functional Team.

Example 15-21 Adding a discussion to a Functional Team

ITable ft_dc_tbl = (ITable)FtObj.getTable(UserGroupConstants.TABLE_DISCUSSIONS);//Create a New discussion and add it to Functional Team.Discussion Table   IAgileClass discClass =      session.getAdminInstance()
      .getAgileClass(DiscussionConstants.CLASS_DISCUSSION);
   String discNmbr = "D00003";    HashMap<Integer, String> map = new HashMap<Integer, String>();
      map.put(DiscussionConstants.ATT_COVER_PAGE_NUMBER, discNmbr);      map.put(DiscussionConstants.ATT_COVER_PAGE_SUBJECT,
         "Testing Func Team: "+discNmbr );   IDiscussion disc =
      (IDiscussion)session.getObject(DiscussionConstants.CLASS_DISCUSSION, map);   if (disc == null){      disc = (IDiscussion)session.createObject
         (DiscussionConstants.CLASS_DISCUSSION, map);   }

//Add Discussion to FunctionalTeam.Discussions Table   map.clear();   map.put(UserGroupConstants.ATT_DISCUSSIONS_NUMBER, disc.getName());   map.put(UserGroupConstants.ATT_DISCUSSIONS_NUMBER, disc);   IRow newRow = ft_dc_tbl.createRow(map);

15.6.5.1 Assigning Actions Items to Functional Teams

Action items are routable objects that require an action by the assigned user or user group. They inform the assigned users of a request for an action or activity. For a list and description of potential users, see "Job Functions, Functional Teams, and Workflow Actions." The following example shows how to assign action item using the SDK and the various fields such as dates, assignee, the action, and so on.


Note:

In Agile Web Client, Action Items is a sub-level tab of the Discussions tab.

Example 15-22 Assigning Action items to Functional Teams

//Get FunctionalTeam.ActionItems Table   ITable ft_ai_tbl = FtObj.getTable(UserGroupConstants.TABLE_ACTION_ITEMS);//Add an Action Item to FunctionalTeam.ActionItems Table
   SimpleDateFormat df = new SimpleDateFormat("MM/dd/yyyy");   Date dueDate = df.parse((String) "11/18/2011");   HashMap<Integer, String> map = new HashMap<Integer, String>();   IDataObject usr0 =
      (IDataObject) session.getObject(UserConstants.CLASS_USER, "usr0");
   map.put(UserGroupConstants.ATT_ACTIONITEM_SUBJECT,
      " ActItm for: "+usr0.getName());   map.put(UserGroupConstants.ATT_ACTIONITEMS_ASSIGNEDTO, usr0);   map.put(UserGroupConstants.ATT_ACTIONITEM_DUEDATE, dueDate);   IRow newRow1 = ft_ai_tbl.createRow(map);   IDataObject usr1 =
      (IDataObject) session.getObject(UserConstants.CLASS_USER, "usr1");      map.put(UserGroupConstants.ATT_ACTIONITEM_SUBJECT,
         " ActItm for: "+usr.getName());      map.put(UserGroupConstants.ATT_ACTIONITEMS_ASSIGNEDTO, usr1);   IRow newRow2 = ft_ai_tbl.createRow(map);

15.6.5.2 Updating a Functional Team's News Table

As information passes through the Agile system, users receive news of status changes, requests, and notifications. Similar to Action Items, News is a sub-level tab of the Discussions tab, described earlier in the Note in "Adding a Discussion to a Functional Team."

The following example shows the various fields and how to use the SDK to update the applicable data elements.

Example 15-23 Updating a Functional Teams' News Table

//Get the Functional Team.News Table   ITable ft_ns_tbl = FtObj.getTable(UserGroupConstants.TABLE_NEWS);//Add new News to Functional Team.News Table   IAgileList newsTypeLst =
      session.getAdminInstance().getListLibrary().getAdminList
         (AdminListConstants.LIST_NEWS_TYPE).getValues();   newsTypeLst.setSelection(new Object[]{"Information"});   HashMap<Integer, String> map = new HashMap<Integer, String>();;   map.put(UserGroupConstants.ATT_NEWS_TYPE, newsTypeLst);   map.put(UserGroupConstants.ATT_NEWS_TITLE, "Publishing News Title ");   map.put(UserGroupConstants.ATT_NEWS_NEWS,
      "This is testing the news publishing feature" + System.currentTimeMillis());   ft_ns_tbl.createRow(map);
