5 "Drives Overview" 和 "Drives Analysis" 屏幕

"Drives - Overview" 和 "Drives - Analysis" 屏幕显示与磁带机相关的属性。一组属性用于 StorageTek 企业磁带机，另一组稍微不同的属性用于 LTO 磁带机。

磁带机属性分为以下部分。

• Title

• Drive

• Media

• Most Recent Exchange

• Drive Activity Counts (Last 30 Days)

• Additional Exchange Information for Enterprise Drives

• Additional Exchange Information for LTO Drives

• Drive Location

• Library Complex

• Media Validation Information for Enterprise Drives

• User-Provided Information

"Drives Overview" 详细信息视图

企业磁带机的详细信息（第 1 部分）

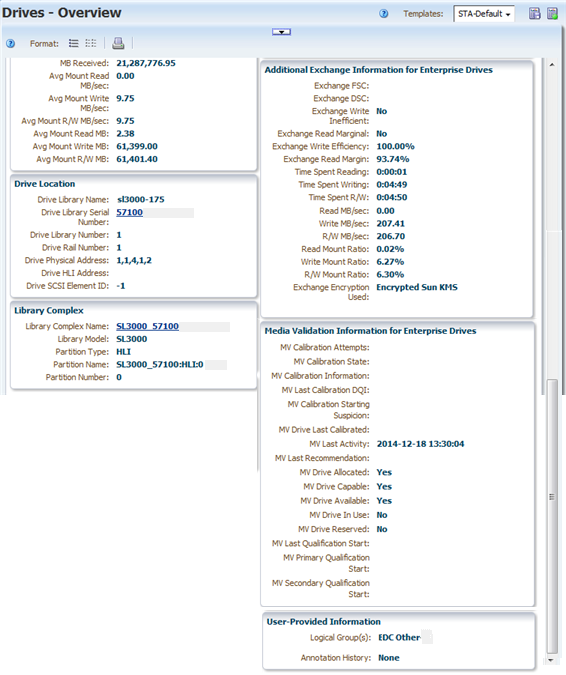

企业磁带机的详细信息（第 2 部分）


LTO 磁带机的详细信息（第 1 部分）


LTO 磁带机的详细信息（第 2 部分）


Title

STA 第一次开始跟踪磁带机时将为这些属性分配值。

• Drive

• Monitored since

Drive

有关磁带机属性的信息。

• Drive Serial Number

• Drive Tray Serial Number

• Drive WWNN

• Drive Type

• Drive Health

• Drive Health Trend

• Last Drive Message

• Drive WWPN (Port A)

• Port Speed (Port A)

• Drive WWPN (Port B)

• Port Speed (Port B)

• Drive Model

• Drive Manufacturer

• Encryption Capable

• Drive Interface

• Drive Properties Updated

• Drive Firmware Version

• STA Start Tracking

• STA Stop Tracking

Media

有关此聚合期间或之前进行的磁带机最近交换中使用的介质的详细信息。

• Volume Serial Number

• Media Manufacturer Serial Number

• Media Health

• WORM/VolSafe Media

• Cleaning Media

Most Recent Exchange

有关此聚合期间或之前进行的磁带机最近交换的详细信息。

• Exchange Start

• Exchange Elapsed Time

• Exchange Mount Time

• Mount R/W MB/sec

• Exchange Recording Technique

• Drive Exchange Status

• Exchange Tape Alerts – Severe

• Exchange Tape Alerts – Warning

• Exchange Tape Alerts – Info

• Data Compression Ratio

• Alert: Drive Load Limit

• Drive Suspicion Level

• Exchange Drive Cleaning Required

• Meters Between 2 Most Recent Cleans

• Meters since Last Clean

• Drive Lifetime Cleans

• Drive Lifetime Loads

• Drive Lifetime Meters

• Drive Lifetime Power Hours

Drive Activity Counts (Last 30 Days)

过去 30 天中磁带机的总活动计数。将使用涉及该磁带机的每个已完成交换更新这些值。

• % Drive Utilization

• Drive Dismounts

• Drive SNMP Trap Count

• Drive Alert Count

• Dismounts With Errors

• Cleans

• MB Read

• MB Write

• MB R/W

• MB Sent

• MB Received

• Avg Mount Read MB/sec

• Avg Mount Write MB/sec

• Avg Mount R/W MB/sec

• Avg Mount Read MB

• Avg Mount Write MB

• Avg Mount R/W MB

Additional Exchange Information for Enterprise Drives

有关磁带机最近交换的其他详细信息。仅为 StorageTek 企业磁带机 9840D 或 T10000C 显示此部分。

• Exchange FSC

• Exchange DSC

• Exchange Write Inefficient

• Exchange Read Marginal

• Exchange Write Efficiency

• Exchange Read Margin

• Time Spent Reading

• Time Spent Writing

• Time Spent R/W

• Read MB/sec

• Write MB/sec

• R/W MB/sec

• Read Mount Ratio

• Write Mount Ratio

• R/W Mount Ratio

• Exchange Encryption Used

Additional Exchange Information for LTO Drives

有关磁带机最近交换的其他详细信息。仅为 LTO 磁带机显示此部分。

• Alert: Drive Diagnostics Required

• Drive Lifetime Hours in Motion

• IBM Media Efficiency

• IBM Drive Efficiency

• HP Device Status

Drive Location

有关磁带机在磁带库内位置的详细信息。只要执行磁带库数据收集就会更新这些属性。

• Drive Library Name

• Drive Library Serial Number

• Drive Library Number

• Drive Rail Number

• Drive Physical Address

• Drive HLI Address

• Drive SCSI Element ID

Library Complex

有关磁带机所在的复合磁带库的信息，时间截至上次完成的磁带库数据收集。

• Library Complex Name

• Library Model

• Partition Type

• Partition Name

• Partition Number

Media Validation Information for Enterprise Drives

有关此磁带机的介质验证及磁带机校准和资格评定操作的信息。仅为已通过 SL Console 分配到介质验证磁带机池的磁带机显示此部分。

• MV Calibration Attempts

• MV Calibration State

• MV Calibration Information

• MV Last Calibration DQI

• MV Calibration Starting Suspicion

• MV Drive Last Calibrated

• MV Last Activity

• MV Last Recommendation

• MV Drive Allocated

• MV Drive Capable

• MV Drive Available

• MV Drive In Use

• MV Drive Reserved

• MV Last Qualification Start

• MV Primary Qualification Start

• MV Secondary Qualification Start

User-Provided Information

• Logical Group(s)

• Annotation History
