Drive Enclosures are used as back-end storage for the Oracle Flash Storage System. The Oracle FS System can be configured for as many as 30 Drive Enclosures. The two types of Drive Enclosure are the DE2-24P Drive Enclosure and the DE2-24C Drive Enclosure. Both Drive Enclosure types can co-exist in the same system.

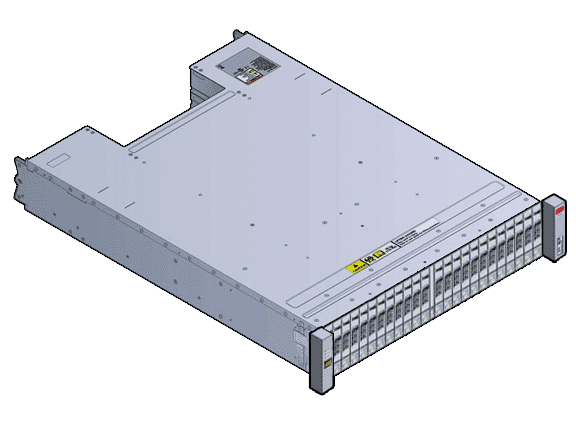

Figure 1: DE2-24P Drive Enclosure (front view)

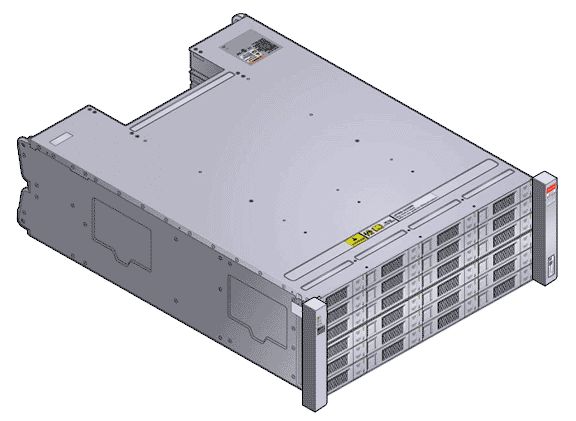

Figure 2: DE2-24C Drive Enclosure (front view)
Two hot-serviceable I/O modules with two interface slots that comply with the Storage Bridge Bay (SBB) standard
Two hot-serviceable 580W power cooling modules with dual load-sharing power supplies and integrated fans
19-inch rack‑compatible enclosure
Front access to all drives
Back access to the I/O modules and the power cooling modules
LEDs with status information for the I/O modules, the drives, and the power cooling modules

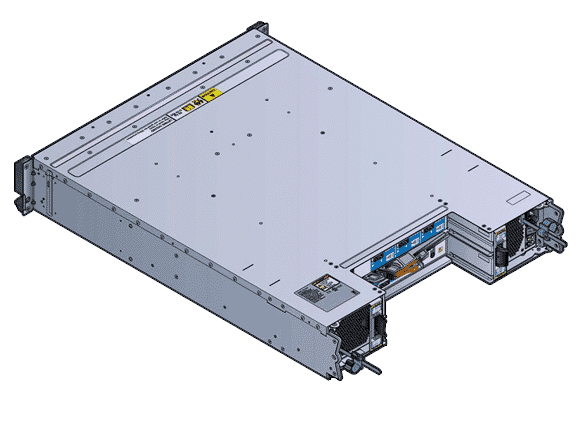

Figure 3: DE2-24P Drive Enclosure (back view)

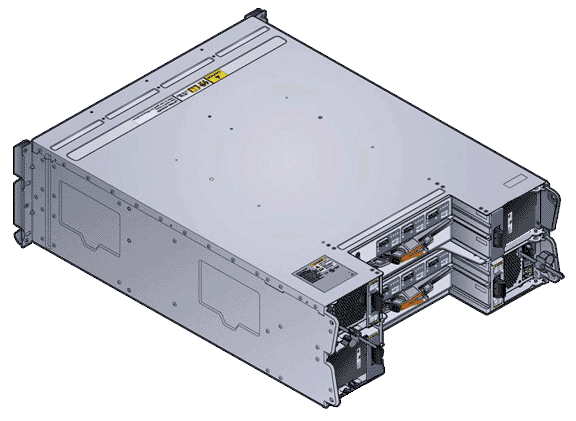

Figure 4: DE2-24C Drive Enclosure (back view)
