SATA or drive cable
NV-DIMM cable
Motherboard to HDD backplane cable
USB board cable
Figure 1: Cables connected to the backplane
1 SATA or drive cable |
2 NV-DIMM cables |
3 Drive compartment |
4 Backplane boards |
5 Motherboard to HDD backplane cable |

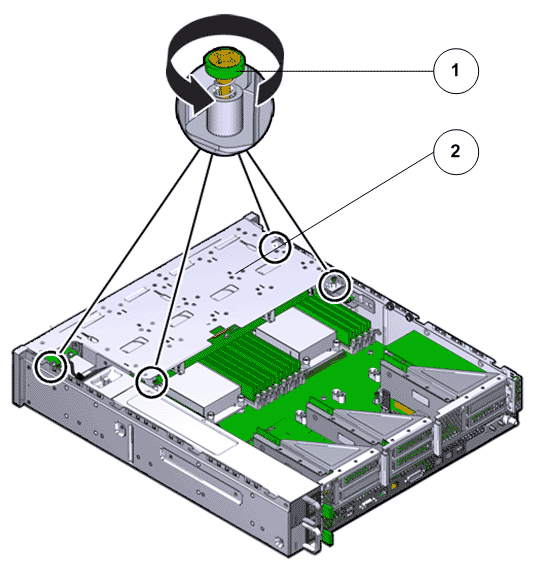

Figure 2: Disengaging the backplane
1 Thumb screws that secure the backplane |
2 Backplane |

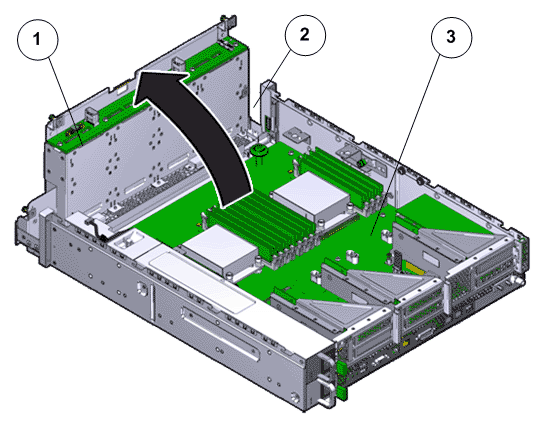

Figure 3: Drive compartment raised
1 Backplane |
2 Drive compartment |
3 Controller motherboard |
