- Disconnect all power and data cables from the Pilot.These include:
Ethernet cables connected to the network ports
Rollover cable connected to the serial port
Power cables connected to the power supplies of the Pilot
Note: Oracle Customer Support recommends labeling all cables connected to the Pilot so that they can be reconnected accurately to the Pilot after the replacement procedure is complete.Important! Ensure that the Pilot is offline before removing the power cords.CautionWhen the Pilot is offline, power is still directed to the power supply fans in the Pilot. To completely power off the Pilot, you must disconnect the power cords from the back of the power supplies. - Disconnect the cable management arm (CMA) by pulling the release tabs on the left and right side of the CMA.Note: Do not disconnect the cables attached to the CMA.

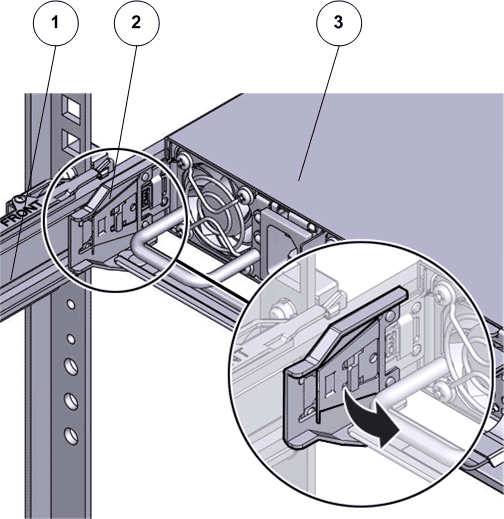

Figure 1: CMA release tabs
- Legend
1 CMA 2 Release tabs to disconnect the CMA 3 Pilot
Important! Before sliding out the Pilot, ensure that the cables do not interfere with the movement of the Pilot. Although the cable management arm (CMA) is hinged to accommodate extending the Pilot, ensure that all cables and cords are capable of being extended.
