- Unpack the component from its shipping carton.Note: Place the component on an antistatic mat if it must be set aside for any reason.
- Insert the motherboard into the Pilot by grasping the middle of the air deflector in the front and back and tilting the front of the motherboard up slightly and pushing it into the opening in the rear of the Pilot chassis.

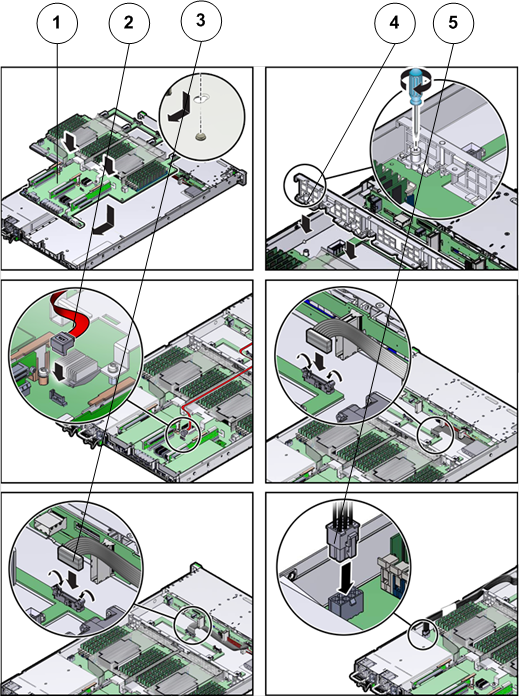

Figure 1: Pilot motherboard insertion
- Legend
1 Pilot motherboard 4 Midwall 2 SAS cable bundle 5 Disk backplane power cable 3 FIM cable
- Lower the motherboard into the Pilot chassis and slide it to the back until it engages the six standoffs located on the Pilot’s chassis under the motherboard.
- Install the Pilot mid-wall to the Pilot chassis by tightening the four captive screws. Ensure that the indicators, connectors, and controls at the rear of the motherboard fit correctly into the back of the Pilot chassis.
- Ensure that the SAS cable bundle is running through the cable trough in the center of the Pilot mid-wall.
- Reconnect the disk backplane power cable and the front indicator module (FIM) cable to the motherboard.
