Figure 1: Slide rail assembly unlocked
1 Slide rail assembly |
2 Slide rail lock button |
Figure 2: Mounting bracket release button
1 Slide rail |
2 Mounting bracket release button |
3 Mounting bracket |

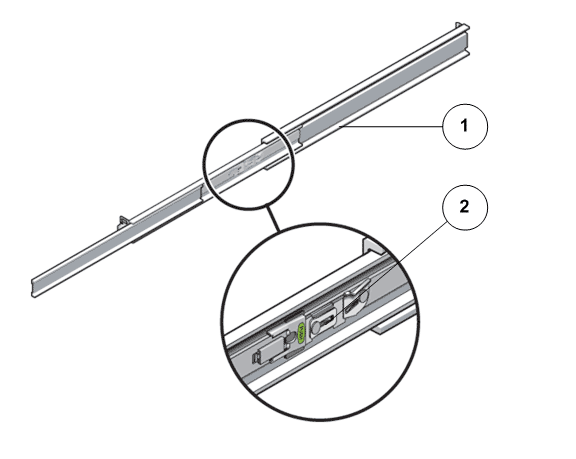

Figure 3: Slide rail middle section unlocked
1 Slide rail |
2 Metal lever |

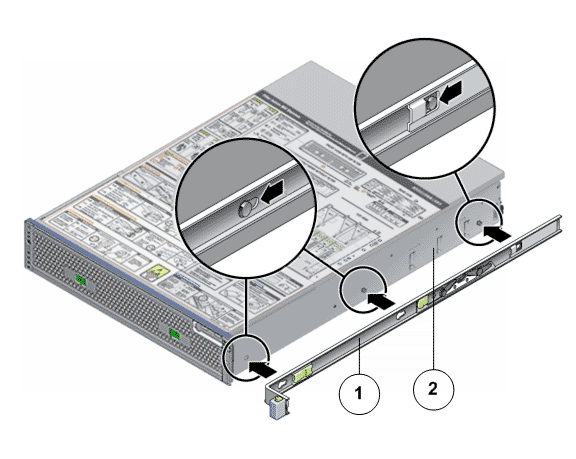

Figure 4: Mounting bracket attached to the chassis
1 Mounting bracket |
2 Controller chassis |

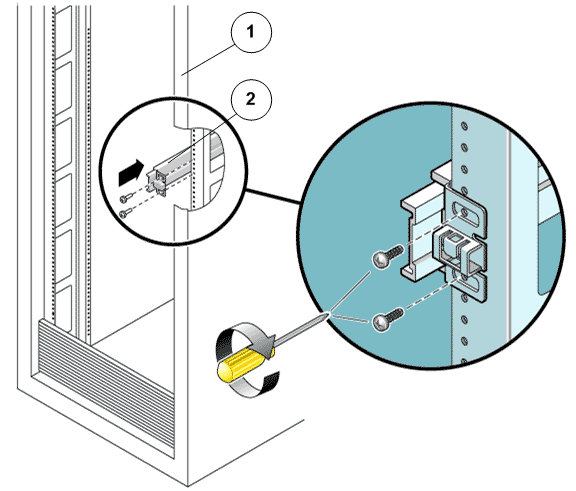

Figure 5: Slide rail mounted on the rack post
1 Rack post |
2 Slide rail |
Figure 6: Slide rail spacing tool
1 Spacing tool |
2 Slide rails |

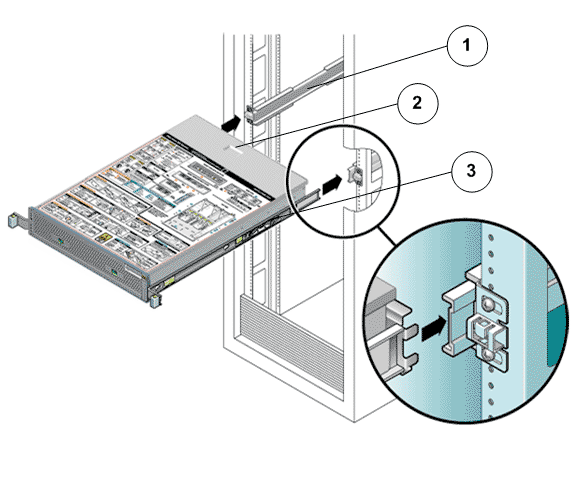

Figure 7: Controller chassis mounted on the slide rails
1 Slide rails |
2 Controller chassis |
3 Mounting brackets |
